STEPS
Note: The following steps apply for partial height,
full height; with or without a cord passage; and
for use with or without a modesty panel.
1. Hook (2) end panel mounting brackets (A) on
the top of the desk end leg, (1) outside each
rail cradle. The wide portion of the brackets
should be on the outside of the leg.
Note: For back–to-back desks, position (4)
end panel hanger brackets, (2) per end leg.
2. Position the end panel alongside the end
leg, align the mounting brackets (A) with
the pre-drilled holes in the top of the end
panel, and attach the end panel to the
mounting brackets (A) using (1) ¼ - 20
x 1" machine screw (C) per bracket.
3. Position a spacer bracket (B) on the inside
of each leg, 2" from the bottom of the end
panel, so that the wide portion of the spacer
fits between the inside o–f the end panel
and the outside edge of the end leg.
4. Attach the spacer brackets to the
end panel using (1) #14 x 1 ½" BLK
wood screw (D) per spacer.
End Panels for Desks, Returns, or Back-to-Back Desks
Pattern Numbers Represented:
End Panel, YEP___

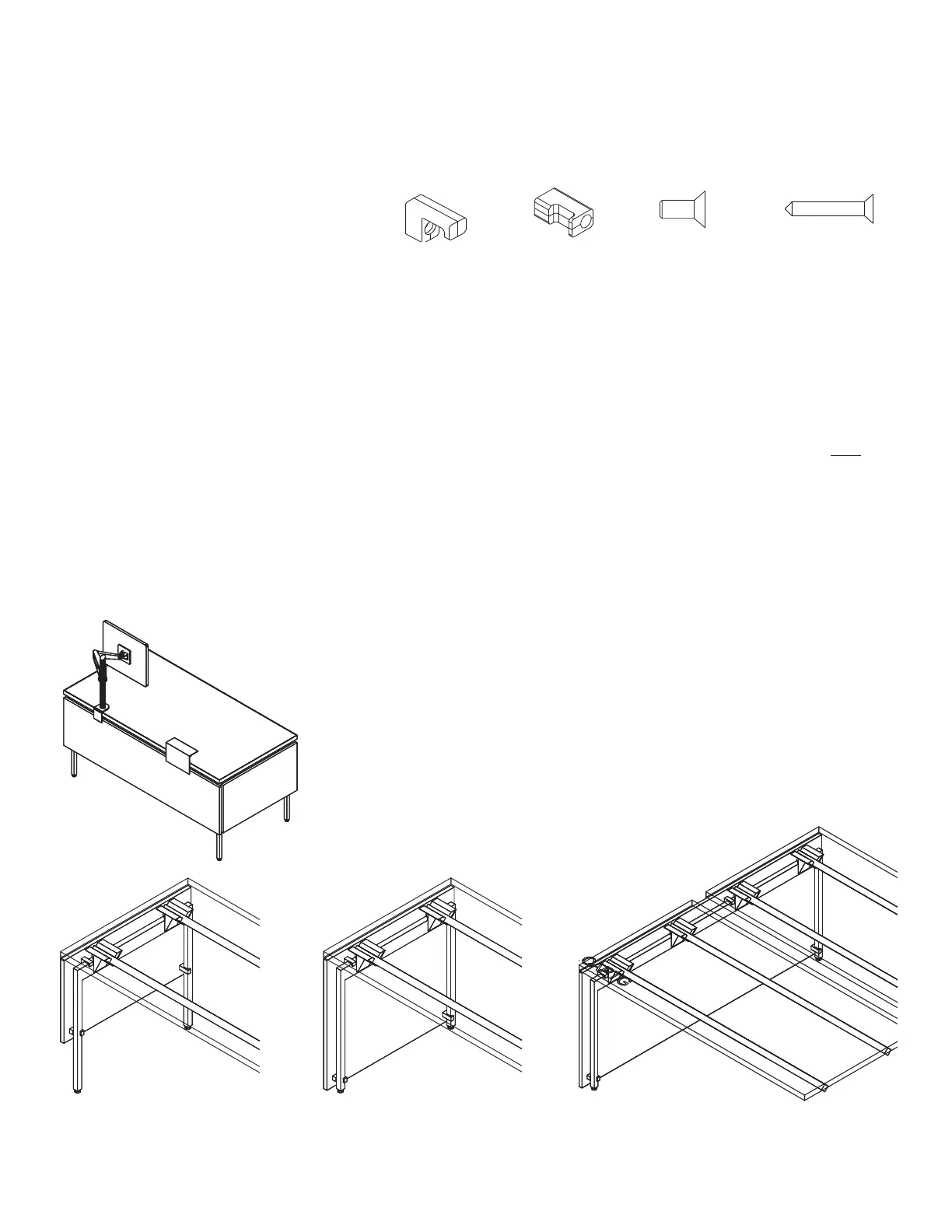

Parts List:
End Panel Mounting Bracket (A)
Spacer Bracket (B)
¼ - 20 x 1" Machine Screw (C)
#14 x 1 ½" BLK Wood Screw (D)
End Panel
Tools Needed:
Drill
Phillips #2 and #3 bits
(A) 3AB4180* (B) 3AB4181* (C) 7194140 (D) 7437100
end panels
partial height, w/ mod, no cord slot partial height, w/ mod and cord passage
partial height, full width, no cord slot partial height, full width, w/ cord passage
partial height, full width, no cord slot
partial height, w/ mod and cord passage
bracket detail
Desk with Partial Height End and
Modesty Panel with Cord Passage
end panels
partial height, w/ mod, no cord slot partial height, w/ mod and cord passage
partial height, full width, no cord slot partial height, full width, w/ cord passage
partial height, full width, no cord slot
partial height, w/ mod and cord passage
bracket detail
Desk with Partial Height End Panel Showing
Bracket and Spacer Connection to End Leg
end panels
full height, w/ mod, no cord slot full height, w/ mod and cord passage
full height, full width, no cord slot full height, full width, w/ cord passage
full height, full width, no cord slot
full height, w/ mod and cord passage
bracket detail
Desk with Full Height End Panel Showing
Bracket and Spacer Connection to End Leg
end panels
partial height back to back
full height back to back
full height back to back
partial height back to back
bracket detail
Back-to-Back Desk with Full Height End Panel
