Knoll Antenna Workspaces - Stanchion Mounted Storage for Fence: Cabinet or Platform

STEPS
1. Ensure the crown covers are
installed on the Fence frame.
2. Remove the upper cover from one
side of the Fence frame.
3. Attach (1) stanchion extrusion (A) to
each stanchion base (B) using (2)
¼ - 20 x 1.75" Torx head self tapping
screws (F) per stanchion base (B).
4. Attach (1) stanchion top plate (C) to
the top of each stanchion extrusion (A)
using (2) ¼ - 20 x 1.75" Torx head self
tapping screws (F) per top plate (C).
5. Attach the stanchion assembly top plates to the
underside of the upmount cabinet or shelf using
(4) ¼ - 20 x ½" machine screws (G) per top plate.
6. Position the storage or shelf assembly in the
desired location on the fence frame, being
sure to align the (2) stanchion bases (B) with
(2) holes in the top of the Fence frame.
NOTE: The holes in the top of the
Fence frame repeat every 3".
7. Place a U-bracket (D) inside the frame,
under the top horizontal channel,
under each stanchion base (B).
8. Secure each stanchion base (B) to its
corresponding U-bracket (D) with a
5
/
16
– 18 x
1 ½" hex head bolt (E) inserted from below the
top horizontal channel of the Fence frame.
9. Re-install the upper Fence cover
removed in Step 2.
Stanchion Mounted Storage for Fence: Cabinet or Platform
Pattern Numbers Represented:
(2) Fence Stanchions, YSUS2F_
(3) Fence Stanchions, YSUS3F_

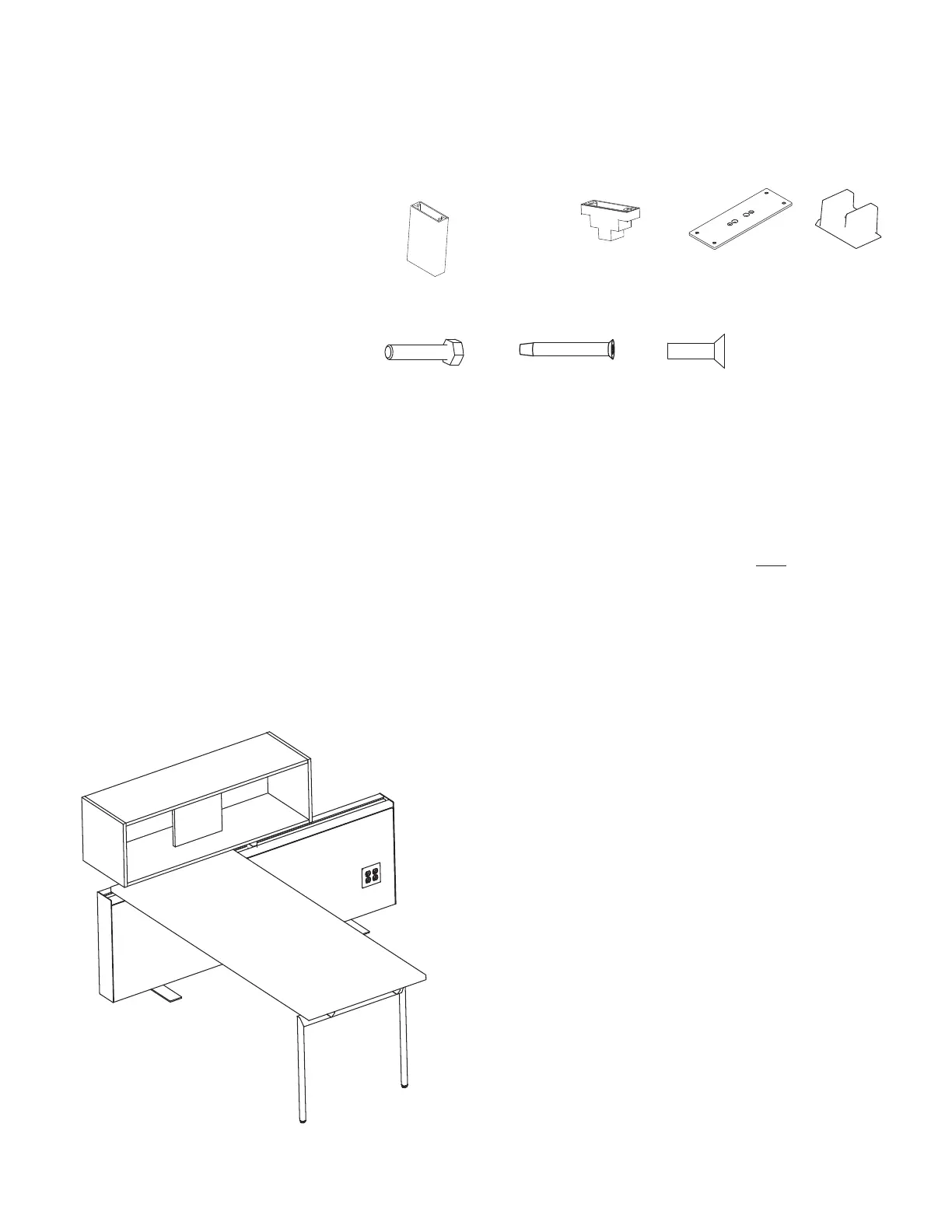

Parts List:
Stanchion Extrusion (A)
Stanchion Base (B)
Stanchion Top Plate (C)
U-Bracket (D)
5
/
16
– 18 x 1 ½" Hex Head Bolt (E)
¼ - 20 x 1.75" Torx Head Self Tapping Screw, Zinc (F)
¼ - 20 x ½" Machine Screw (G)
Upmount Cabinet or Platform
Tools Needed:
Drill
Phillips #2 and #3 bits
Torx #10 bit
(A) For 25"H Fence: 3AB405301*
For 28"H Fence: 3AB405302*
(B) 3AB4037* (C) 6AA4673* (D) 3AB405400
(E) 7231496
(F) 4A2200396
(G) 7143440
Assembled Stanchion
Mounted Storage for Fence
