Markerboard, Glass, Laminate or Veneer Big Table Screens
Pattern Numbers Represented:
Screens for Big Table Center Beam, YPSC___
Parts List:
Screen Panel
Big Table Assembly
Tools Needed:
Rubber Mallet
Level
STEPS
1. Complete big table assembly, as required.
(See Big Table installation section.)
2. Orient each screen so the aluminum extrusion
bracket is at the bottom, and pressure fit
into the top slot in the center beam.
3. If required, use a rubber mallet to lightly tap
each screen into the slot, assuring that each
screen is level, firmly seated, and aligned
with adjacent screens and/or cabinets.
49"
42"
Big Table Screens
Planning Guidelines and Specifications
Antenna Workspaces
139
Screens

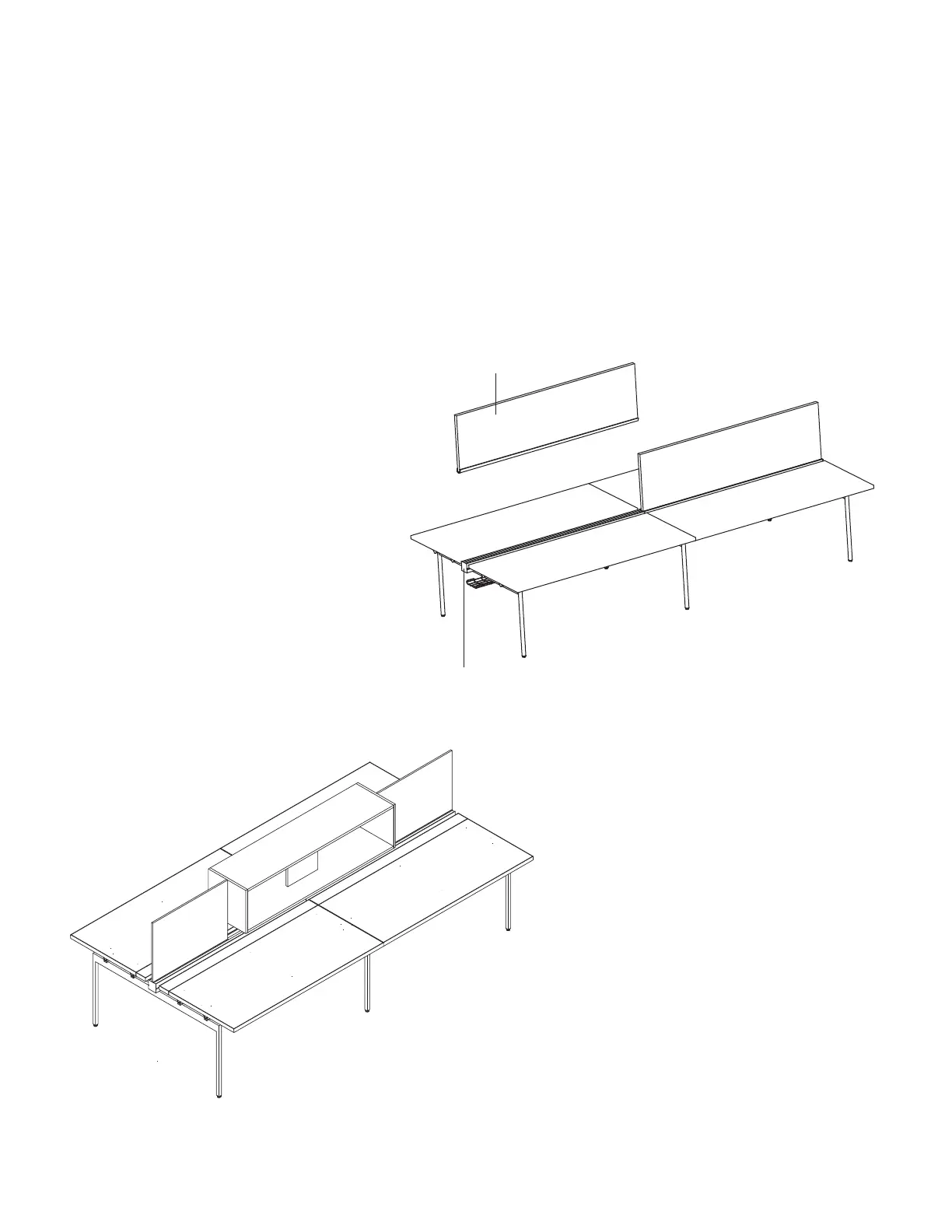

Partially Exploded Big Table Hard
Surface Screen Assembly
Hard Surface
Screen
Center Beam
Big Table with 49"H Screens and
Stanchion Mounted Cabinets
