Hard Surface Intermediate Screens - Partial
Depth for Use with Tops with Hinged Access
Pattern Numbers Represented:
Intermediate Screens, YPSI___

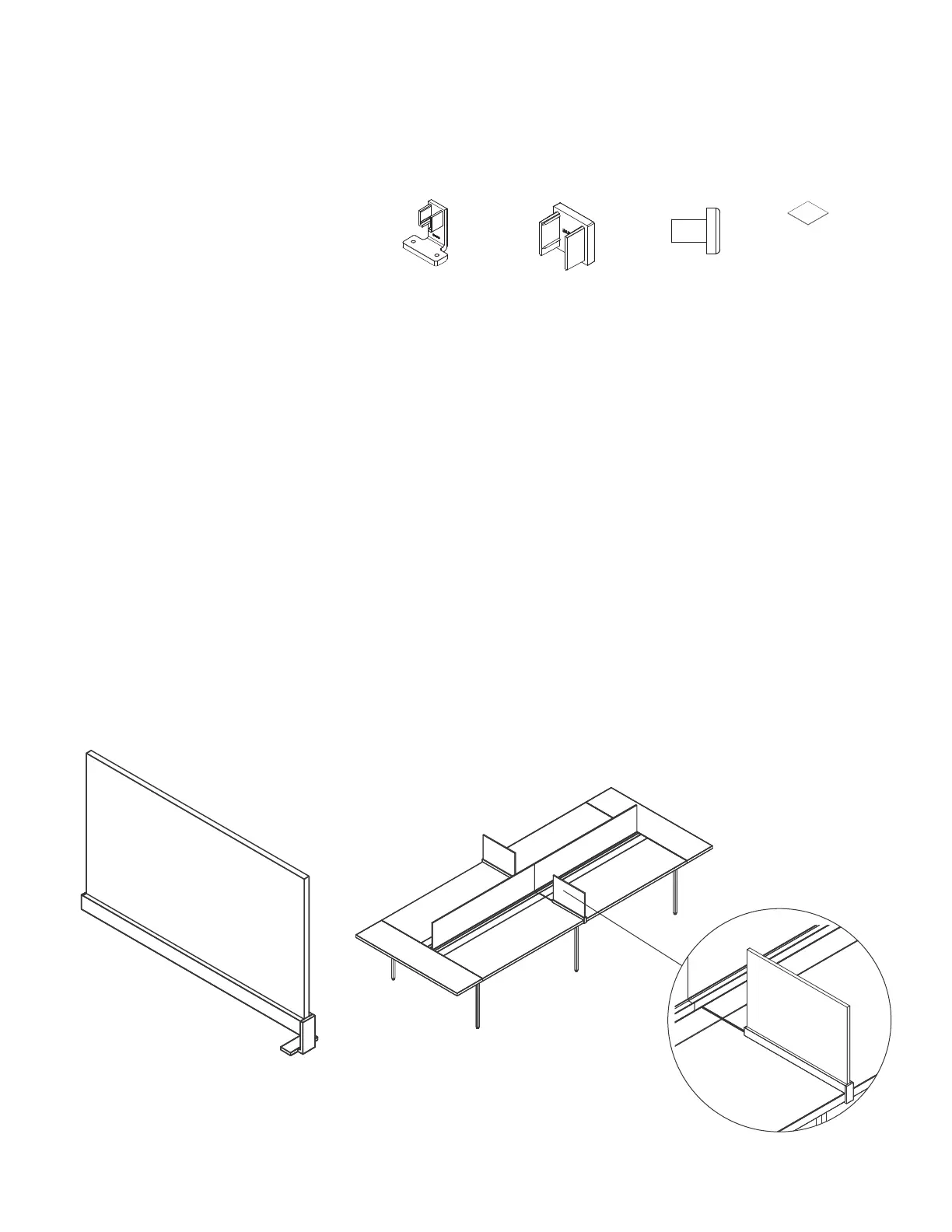

Parts List:
Non-Upholstered Intermediate Screen Rail Clamp (A)
Non-Upholstered Intermediate Screen Rail End Cap (B)
¼ - 20 x
3
/
8
" Black Oxide Machine Screw (C)
Non-Skid Pad (D)
Screen
Tools Needed:
Drill
Phillips #2 and #3 bits
STEPS
1. Fully insert (1) non-upholstered intermediate
screen rail end cap (B) into one end
of the screen’s bottom extrusion.
2. Peel the protective paper from one
side of the non-skid pad (D) to expose
one of the adhesive sides.
3. Affix the non-skid pad (D) to the underside of
the screen’s bottom extrusion, close to the
end cap (B) that has just been attached.
NOTE: DO NOT REMOVE THE OTHER SIDE
OF THE PROTECTIVE PAPER AT THIS POINT.
4. Determine the desired screen position along
the width of the table, and position the
screen on the worksurface accordingly.
5. Hook (1) non-upholstered intermediate screen rail
clamp (A) to the front edge of the worksurface
so that the clamp’s two "fins" are above the
worksurface and the two screw holes are
below the worksurface. Slide the open end
of the screen’s bottom extrusion onto the
"fins" to temporarily support the bracket.
6. Lifting the free end of the screen slightly,
carefully peel the protective paper from the other
side of the non-skid pad (D), then firmly press
the screen assembly downward to adhere the
free end of the screen to the worksurface.
7. Insert (2) ¼ - 20 x
3
/
8
" black oxide machine
screws (C) into the holes under the rail clamp (A).
Hold the clamp’s "fins" firmly against the side of
the screen’s bottom extrusion and tighten the
screws against the bottom of the worksurface.
NOTE: The ¼ - 20 x
3
/
8
" black oxide machine
screws (C) are to be treated as set screws and
will create the tight connection between the
screen’s bottom extrusion and the worksurface.
The rail clamp (A) must be seated firmly within
the side of the bottom extrusion, but should not
be pressed tight against the bottom of the
worksurface. A space will remain between the
rail clamp and the bottom of the worksurface.
(A) 3AB1210* (B) 3AB1209* (C) 7019440 (D) 3AB419700
Intermediate Screens
Planning and Specification Guidelines
Antenna Workspaces
142
Partial Depth Intermediate Screen
for Use with Hinged Access Tops
Big Table with Hinged Access Tops and
Partial Depth Intermediate Screens
