Knoll Antenna Workspaces - Page 95

Fabric Intermediate Screens - Partial Depth for
Use with Tops with Hinged Access
Step 11
Screen
Step 1
Bayonet Mount
Bracket (A)
Step 8
Upholstered Intermediate
Screen Rail Clamp (B)
Step 10
¼ - 20 x
3
/
8
" Black Oxide
Machine Screw (E)
Step 2
5
/
16
-18 x ¾" Machine
Screw (D)
Screen Bottom
Extrusion
Steps 5, 6 & 9
Non-Skid Pad (F)
Step 4
Hex Head Set Screw (G)
Step 3
Upholstered Intermediate
Screen Rail End Cap (C)

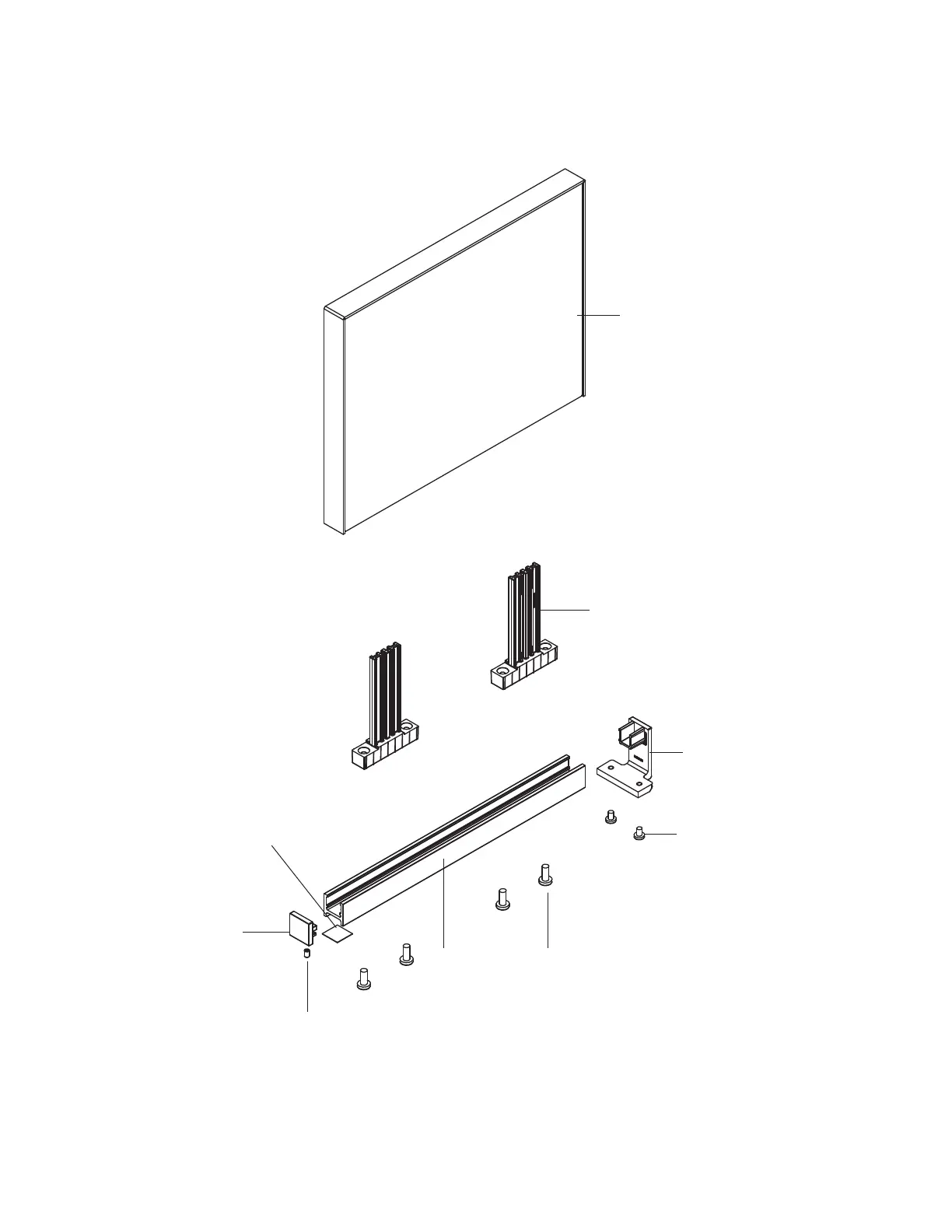

Partial Depth Fabric Intermediate Screen Assembly Detail
