Knoll Antenna Workspaces - Floorstanding L Screen with Pedestal

STEPS
1. Build desk assembly with pedestal
(See desk supported by 25"H
storage assembly instructions).
2. Position (1) screen mounting bracket (A)
under the desk top; on the back edge of
the top. The flat portion of the bracket
should face the underside of the top.
Note: The bracket should be positioned
so that its outside edge will fall
approximately 2" within the L-screen.
3. Temporarily attach the bracket (A)
to the underside of the top using (2)
#12 X ¾" black wood screws (B).
4. Place the floorstanding L-screen into
position around the corner of the
desk and level the glides on the desk
and the screen, as necessary.
5. Under the desk, mark the three visible screen
mounting bracket (A) hole positions on the
interior of the L-screen with a pencil.
6. Position the corner bracket (C) under the
corner of the worksurface, but above the
pedestal top, so it sits against both sides of
the L screen, and mark the four hole positions
on the interior of the screen with the pencil.
7. Remove the L-screen and corner bracket
(C), and unscrew the screen mounting
bracket (A) from under the desk top.
8. Position the screen mounting bracket
(A) on the L-screen so it aligns with its
three corresponding pencil marks, and
then mark the upper three holes with
a pencil. There should be (6) marks for
the screen mounting bracket (A).
9. Place the screen mounting bracket aside,
and drill pilot holes with a
1
/
8
" drill bit into the
L-screen at the marked locations for the screen
mounting bracket (A) and the corner bracket
(C), taking care to not damage the exterior face
of the L-screen. Use a drill stop, if necessary.
10. Attach the brackets (A & C) to the L-screen,
utilizing the pre drilled holes, with (6) #12
X ¾" black wood screws (B) per screen
mounting bracket, and (4) #12 x
5
/
8
" SM TRP
black screws (D) for the corner bracket (C).
11. Replace the L-screen screen around the
desk and re-attach the screen mounting
bracket (A) to the underside of the top
with the same (2) #12 X ¾" black wood
screws (B) previously removed.
Floorstanding L Screen With Pedestal
Pattern Numbers Represented:
L Screen, YSFS_____
L Screen Corner Bracket, YSFSB

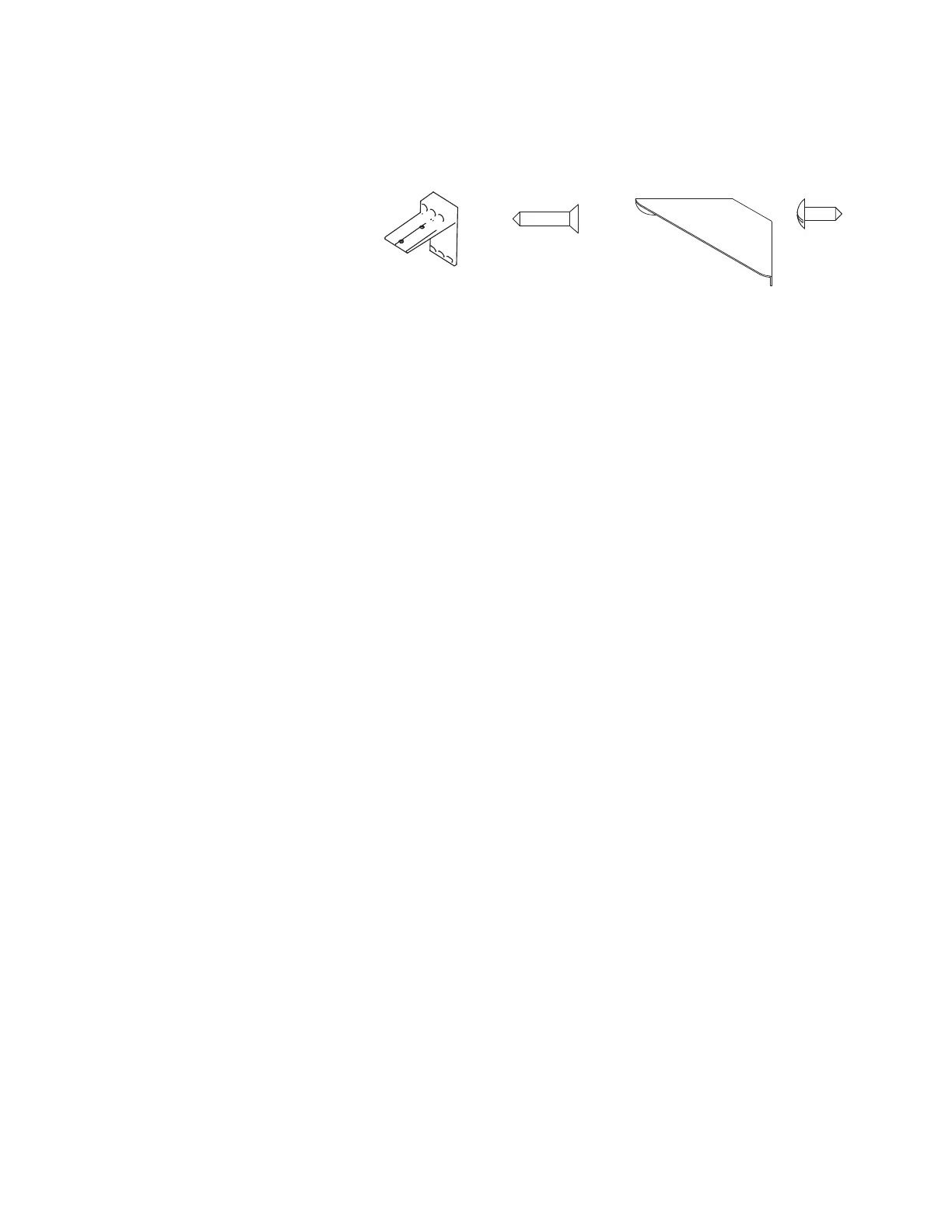

Parts List:
Screen Mounting Bracket (A)
#12 X ¾" Black Wood Screw (B)
Corner Bracket (C)
#12 x
5
/
8
" SM TRP Black Screw (D)
L Screen
Tools Needed:
Drill
Phillips #2 and #3 bits
1
/
8
" Drill Bit
Drill Stop
Pencil
(A) 3AB4043* (B) 7196440 (C) 6942395 (D) 7128440
