Knoll Antenna Workspaces - Desk Screens

STEPS:
1. Attach (2) screen mounting brackets
(A) to fabric desk screen.
• For laminate, markerboard and
veneer desk screens, position the
mounting brackets (B) to align with
the pre-drilled holes in the screen,
and attach using (4) ¼-20 x
5
/
8
"
machine screws (C) per bracket.
• For fabric screens, position the
mounting brackets to align with the
indentations provided in the screen,
and attach using (2) ¼-20 x 1"
machine screws (E) per bracket.
2. Using a 9/64" bit, drill .75" deep pilot
holes in underside of top for (4) #14 x
1.00 Sheet Metal Screws (D) per bracket.
3. Attach screen mounting brackets (A) to
underside of top using (4) #14 x 1.00"
Sheet Metal Screws (D) per bracket.
Desk Screens
Pattern Numbers Represented:
Screens for Desks, YPSB___
Part List:
Screen Mounting Bracket for Fabric Screen (A)
Screen Mounting Bracket for Wood Screen (B)
¼-20 x
5
/
8
" Machine Screw (C)
#14 x 1.125" Blunt Tip Screw (D)
¼-20 x 1" Machine Screw (E)
Desk Screen
Tools Needed:
Drill
Phillips #2 and #3 bits
9/64" Drill Bit
(A) 3AB4483
(B) 3AB4484
(D) 743410 0
(C) 7189140
Desk
Top
Desk
Screen
Mounting
Bracket (A)
Screen
Mounting
Bracket (A)
¼-20 x 1"
Machine
Screw (E)
Fabric Desk
Screen
Desk Top
#14 x 1" Sheet
Metal Screw (D)
Desk
Screen
(E) 7194100
3AB4040
Screw, Mach, FLP 1/4-20 X 1

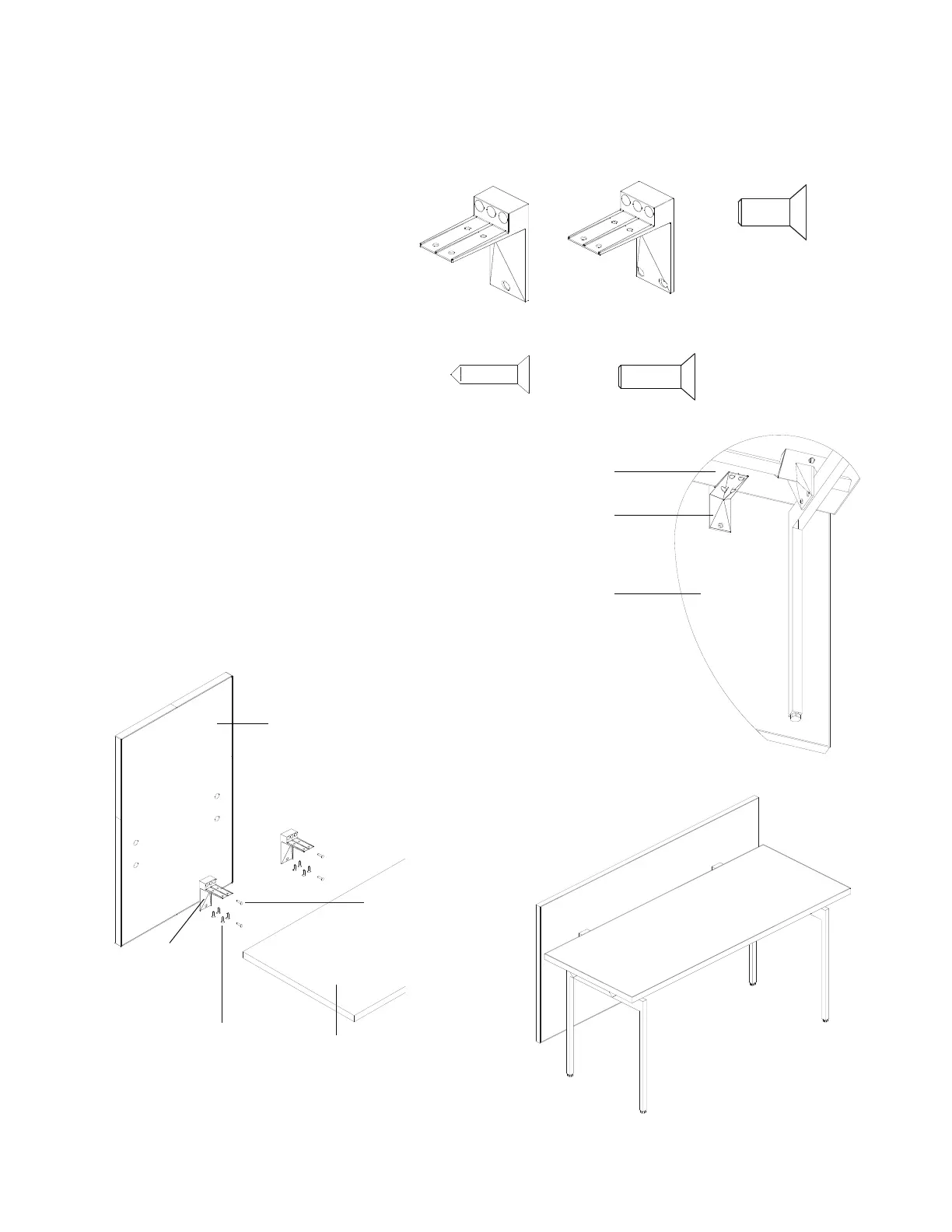

Full Width Fabric Desk Screen
Fabric Desk Screen Mounting
Bracket Exploded Detail
