STEPS
1. For each end panel note the drillings
near the top of the panel:
End panels for 18" dual sided big tables
will have (2) sets of drillings with 2 holes
in each set. All other width end panels
for dual sided big tables will have (2) sets
of drillings with 4 holes in each set.
End panels for single sided big tables will have
a 2-hole drilling set and a 4-hole drilling set.
2. Attach the appropriate small or large end
panel bracket (A or B) to each drilling
set on the end panel, using either (2) or
(4) ¼-20 x
5
/
8
" machine screws (D).
Note: The number of screws needed
depends on the size of the bracket (A or B).
Each hole in the bracket must be utilized.
3. Position the end panel alongside the big table,
align with the worksurfaces, and attach the
end panel brackets (A or B) to the underside
of the worksurfaces using (2) or (4) ¼ -14 x
.875" machine screws (E) per bracket.
Note: The number of screws needed
depends on the size of the bracket (A or B).
Each hole in the bracket must be utilized.
4. Position a spacer bracket (C) on the inside
of each leg, 2" from the bottom of the end
panel, so that the wide portion of the spacer
fits between the inside of the end panel
and the outside edge of the end leg.
5. Attach the spacer brackets to the
end panel using (1) #14 x 2" BLK
wood screw (F) per spacer.
6. Adjust glides in end panel as necessary.
End Panels for Single Sided and Double Sided Big Tables
Pattern Numbers Represented:
YEP28_
YEPSSF28__

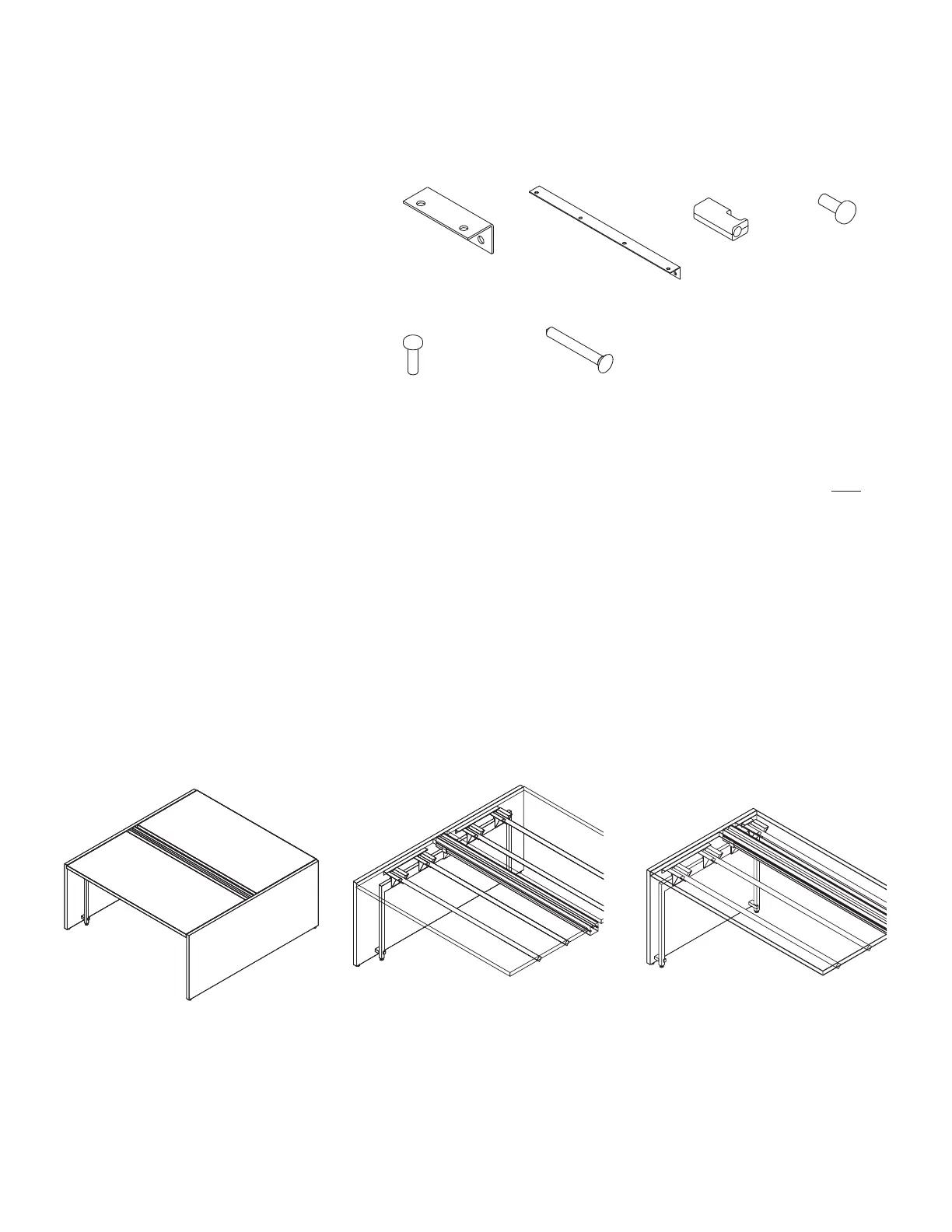

Parts List:
End Panel Bracket, Small (A)
End Panel Bracket, Large (B)
Spacer Bracket (C)
¼ - 20 x
5
/
8
" Machine Screw, Black (D)
¼ - 14 x .875" Machine Screw, Black (E)
#14 x 2" BLK Wood Screw (F)
End Panel
Tools Needed:
Drill
Phillips #2 and #3 bits
(A) 3AB4209* (B) 3AB4189* (C) 3AB4191* (D) 7207340
(E) 4A214020140
(F ) 74 4110 0
end panels
big table
big table
bracket detail
Dual Sided Big Table with End Panels
end panels
big table
big table
bracket detail
Dual Sided Big Table with End Panels Detail Single Sided Big Table with End Panels Detail
