STEPS:
1 Position (2) screen mounting brackets (A)
under the desk top; one bracket on the back
edge of the top and one bracket on the end
edge of the top. The flat portion of the bracket
should face the underside of the top.
2. Temporarily attach the brackets (A) to the
underside of the top using (2) #12 X ¾"
black wood screws (B) per bracket (A).
3. Place the floorstanding L-screen into
position around the corner of the
desk and level the glides on the desk
and the screen, as necessary.
4. Under the desk, mark the three visible screen
mounting bracket (A) hole positions on the
interior of the L-screen with a pencil.
5. Remove the L-screen, and remove the (2)
brackets (A) from under the desk top.
6. Position each bracket (A) on the L-screen
so it aligns with its three corresponding
pencil marks, and then mark the upper
three holes with a pencil. There should
be (6) marks per bracket (A).
7. Place the brackets aside, and drill pilot
holes with a
1
/
8
" drill bit into the L-screen
at the marked locations, taking care
to not damage the exterior face of the
L-screen. Use a drill stop, if necessary.
8. Attach the brackets (A) to the L-screen,
utilizing the pre drilled holes, with (6) #12 X
¾" black wood screws (B) per bracket.
9. Replace the L-screen screen around the
desk and re-attach the brackets (A) to
the underside of the top with the same
(2) #12 X ¾" black wood screws (B) per
bracket (A) previously removed.
Floorstanding L Screen Without Pedestal
Pattern Numbers Represented:
L Screens, YSFS_____
Part List:
Screen Mounting Bracket (A)
#12 X ¾" Black Wood Screw (B)
L Screen
Tools Needed:
Drill
Phillips #2 and #3 bits
1
/
8
" Drill Bit
Drill Stop
Pencil

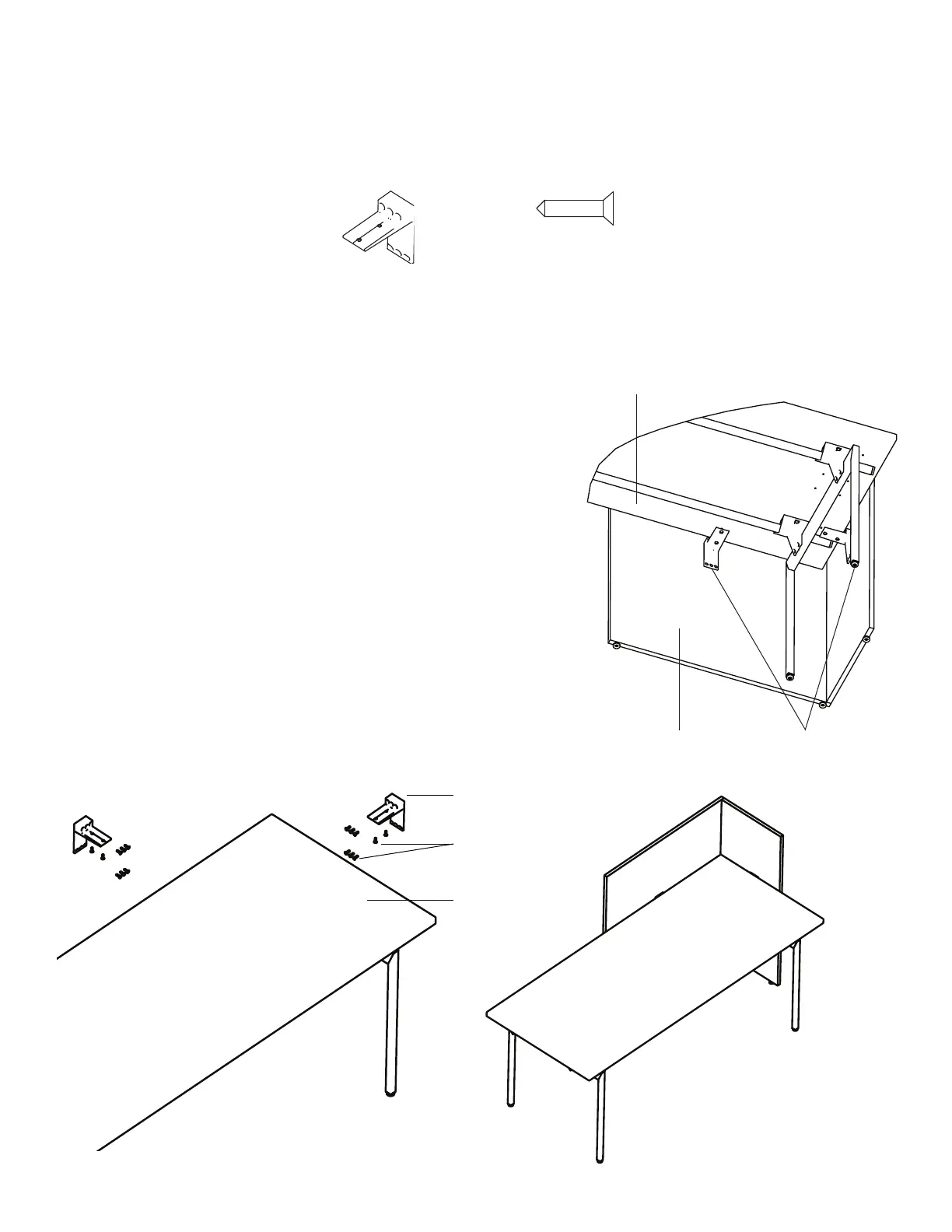

B.) 7196440 A.) 3AB4043*
Floorstanding L Screen Mounting
Bracket Exploded Detail
Desk with Floorstanding
L Screen Assembly
Top
Top
#12 X ¾" Black
Wood Screws (B)
Mounting
Brackets (A)
Screen Mounting
Bracket (A)
Floorstanding
L Screen
