Table Desk (Flush Legs)
Pattern Numbers Represented:
Legs for Table Desks (Desk Height), YELS__
Starter Rails without End Caps, YBRT_

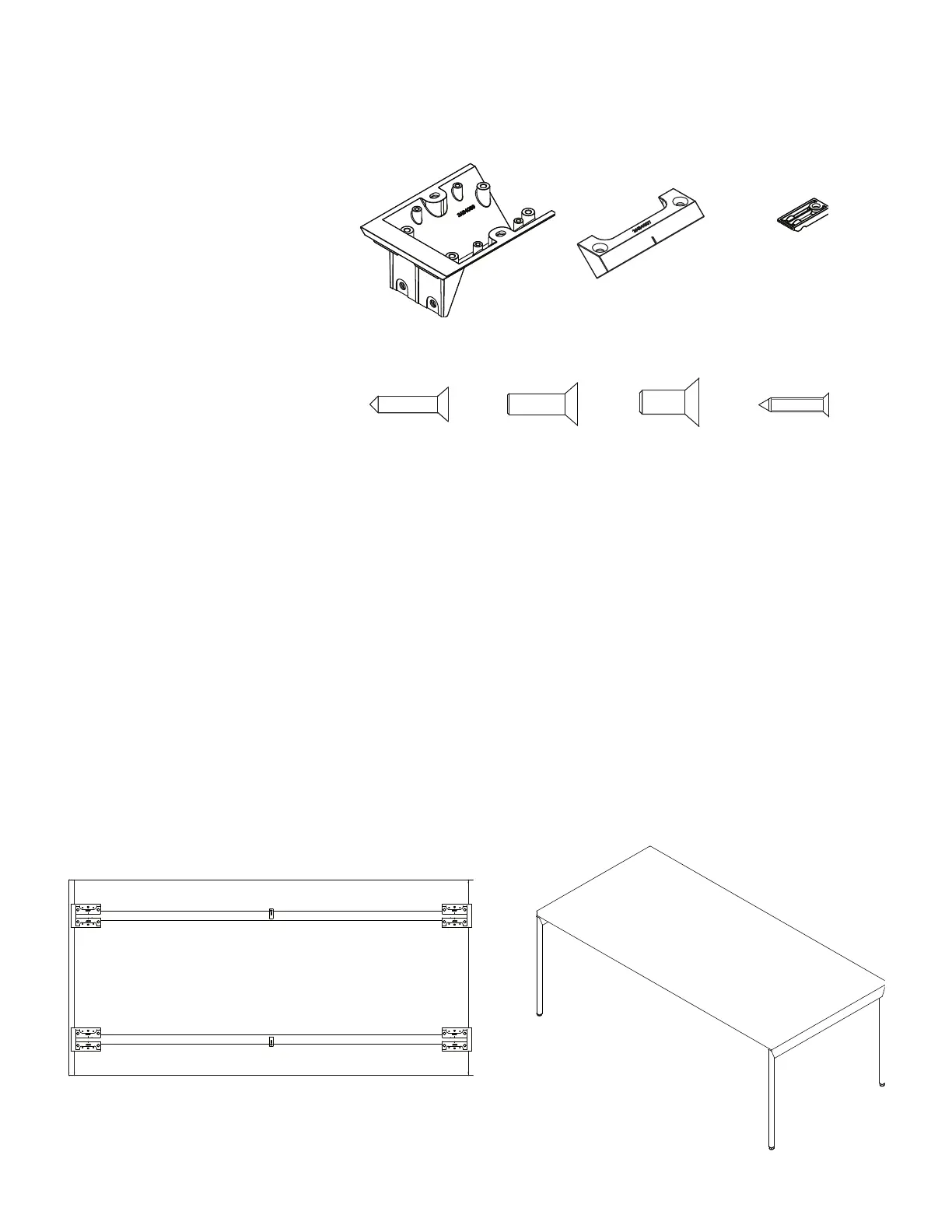

Part List:
Table Desk Cradle (A)
Cradle Clamp Bracket (B)
Spacer (C)
#12 X ¾" Black Wood Screw (D)
¼-20 x 1" Machine Screw (E)
¼-20 x
5
/
8
" Machine Screw (F)
#14 x 1" FH Wood Screw (G)
Rails
Table Desk End Legs
Top
Tools Needed:
Drill
Phillips #2 and #3 bits
STEPS:
1. Attach table desk cradles (A) to
legs, (2) per leg, using (2) ¼-20 x 1"
machine screws (E) per cradle (A).
2. Attach (1) pair of horizontal rails to cradles
(A) by first fastening (2) cradle clamp
brackets (B) loosely to each cradle (A)
using (4) ¼-20 x
5
/
8
" machine screws (F).
NOTE: Rails are 3" shorter than top width.
ie: 72" wide tops use 69" wide rails.
Slide one end of each rail into a cradle/clamp
assembly, with rail paint holes facing up and
toward the center of the table desk assembly.
NOTE: If a glass top is being used,
holes are to face down and toward
center of the table desk assembly.
NOTE: End of rail must be fully inserted
against (not on top of) the "fins" at the
back of the cradle. No endcaps are required.
Tighten the screws (F) in the cradle clamp
brackets (B).
3. Attach other ends of the rails to the (2) cradles
(A) in the other leg assembly as noted in step 2.
4. If applicable, attach suspended storage,
returns and/or electrical components at this
time. (see suspended storage, table desk with
return and electrical installation instructions).
5. Surfaces 48" wide and greater require a spacer
(C) for additional support. When necessary,
a spacer (C) should be placed between the
top of each rail and the underside of the top,
centered on the width of the top. Spacers
(C) are attached to the top using (1) #12 X
¾" black wood screw (D) per spacer.
6. Lay top on base assembly. Attach top using (2)
#14 x 1" FH wood screws (G) per cradle (A) into
pre-drilled holes in the underside of the top.
7. Adjust glides as needed to level table desk.
7434100
Screw, SM, FLP 14 X 1 Type A CAD or Zinc
3AB4040
Screw, Mach, FLP 1/4-20 X 1
A.) 3AB4069* B.) 3AB4007* C.) 3AB401252
G.) 743 410 0F.) 718914 0E.) 7194140D.) 7196440
Table Desk Assembly Plan Table Desk Assembly
