Knoll Antenna Workspaces - Page 125

Big Table with 22"H Template End Support
big table template brackets
22"h - ybatb22
25"h - ybatb25
bracket detail
bracket detail
Big Table with 22 ½" High
Template End Support
big table template brackets
22"h - ybatb22
25"h - ybatb25
bracket detail
bracket detail
YBATBT22
Step 9
Spring Slot Nut (E)
M6 X 25mm Machine Screw (I)
Step 2
Center Beam Mounting Bracket (C)
¼-20 x 1" Machine Screw (F)
Step 10
Center Beam Mounting
Bracket C-Clamp (D)
Step 4
¼-20 x
5
/
8
" Machine Screw (G)
Cradle Clamp Bracket (B)
Step 1
Horizontal Rail Cradle (A)
¼-20 x 1" Machine Screw (F)
Step 12
#14 x 1" FH Wood
Screw (H)

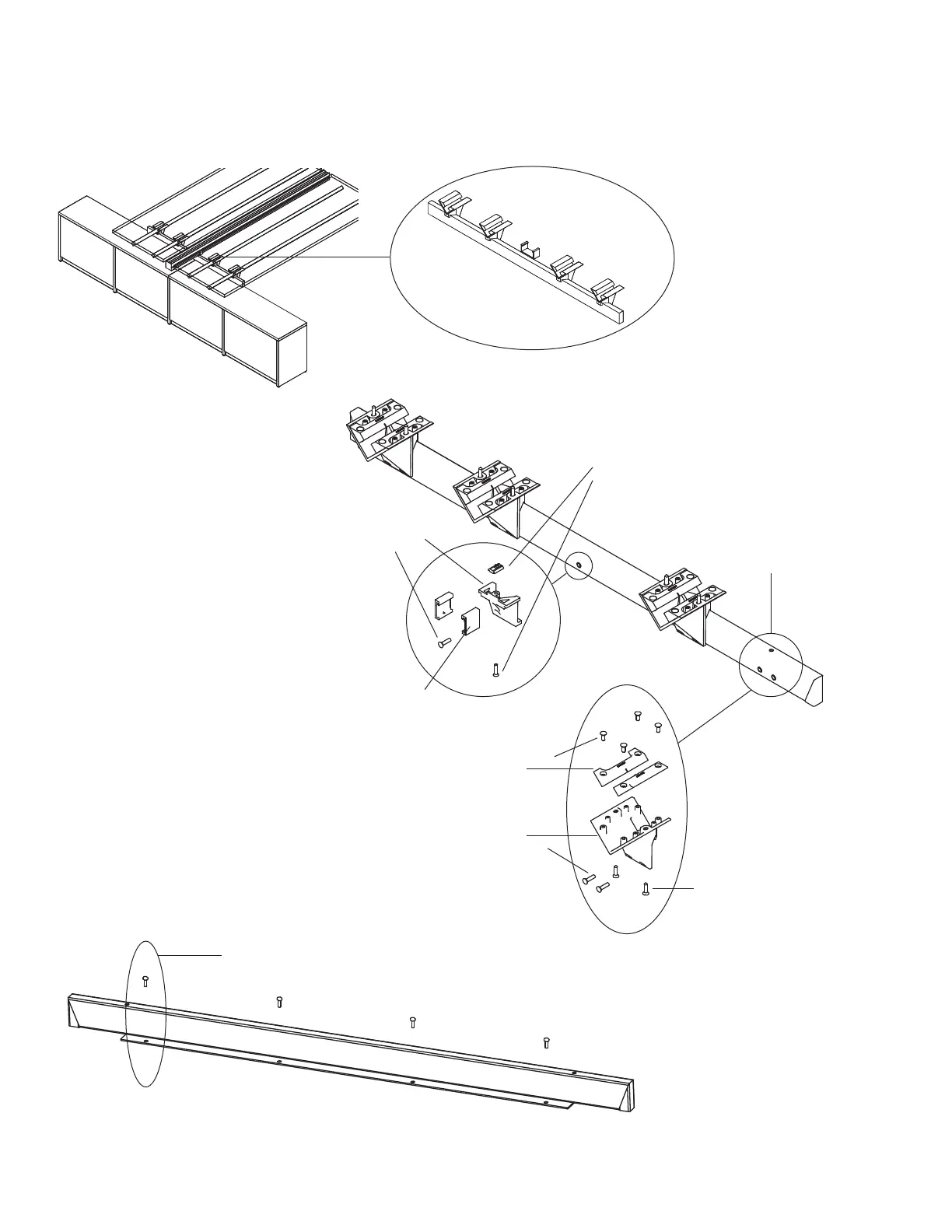

Exploded Support Adapter for Big Table - 22"H Case, YBATBT22
Big Table Leg
Adapter Bar
(J) - see back
detail drawing
Step 11
#14 x 1" FH Wood Screw (H)
Back Detail of Big Table Leg Adapter Bar (J)
