Knoll Antenna Workspaces - Page 19

ANTENNA 03 H
ANTENNA 03 I
Table Desk or Desk with Bridge
Table Desk
Assembly
Step 6
Steps 5 and 7
Steps 2 and 3
W-Bracket
(D)
W-Bracket
(D)
Bridge
Top
Spacer (A)
Bridge
Rail
Return Rail
Hook Top
and Clamp
Bracket (B & C)
Return Rail
Hook Top
and Clamp
Bracket (B & C)
Table Desk
Assembly

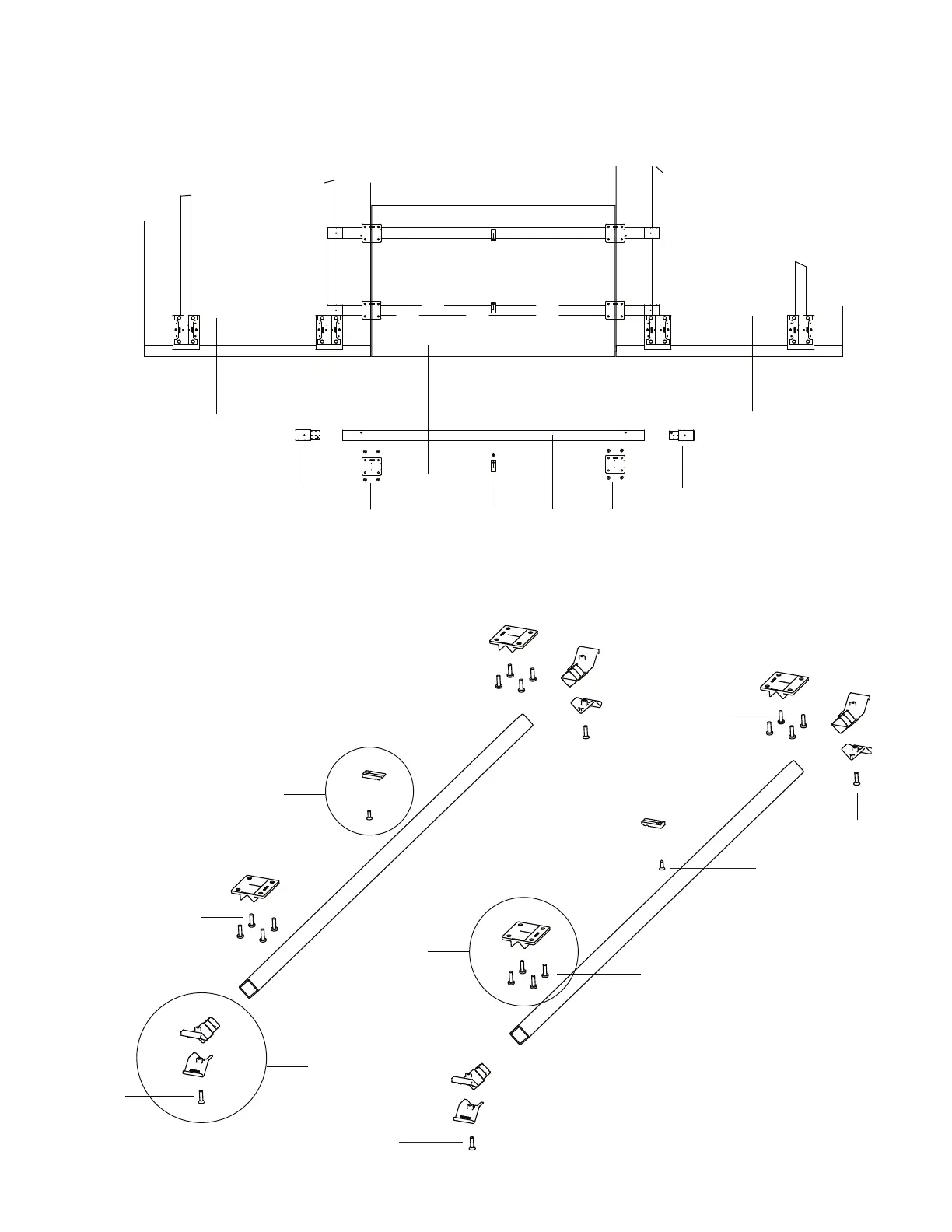

Exploded Bridge Assembly Detail
Table Desks with Bridge Plan View
#14 x 1" FH
Wood Screw (G)
¼-20 x 1" Machine
Screw (F)
#12 X ¾" Black
Wood Screw (E)
#14 x 1" FH Wood Screw (G)
#14 x 1" FH
Wood Screw (J)
¼ -20 X 1"
Machine
Screw (H)
¼-20 x 1" Machine
Screw (F)
