Knoll Antenna Workspaces - Page 28

Linked Desks
Rail Connection
Centered in Cradle
Desk Cradle Connection to End Leg Detail
Starter Rail/ Extended Rail
Cradle Alignment Detail

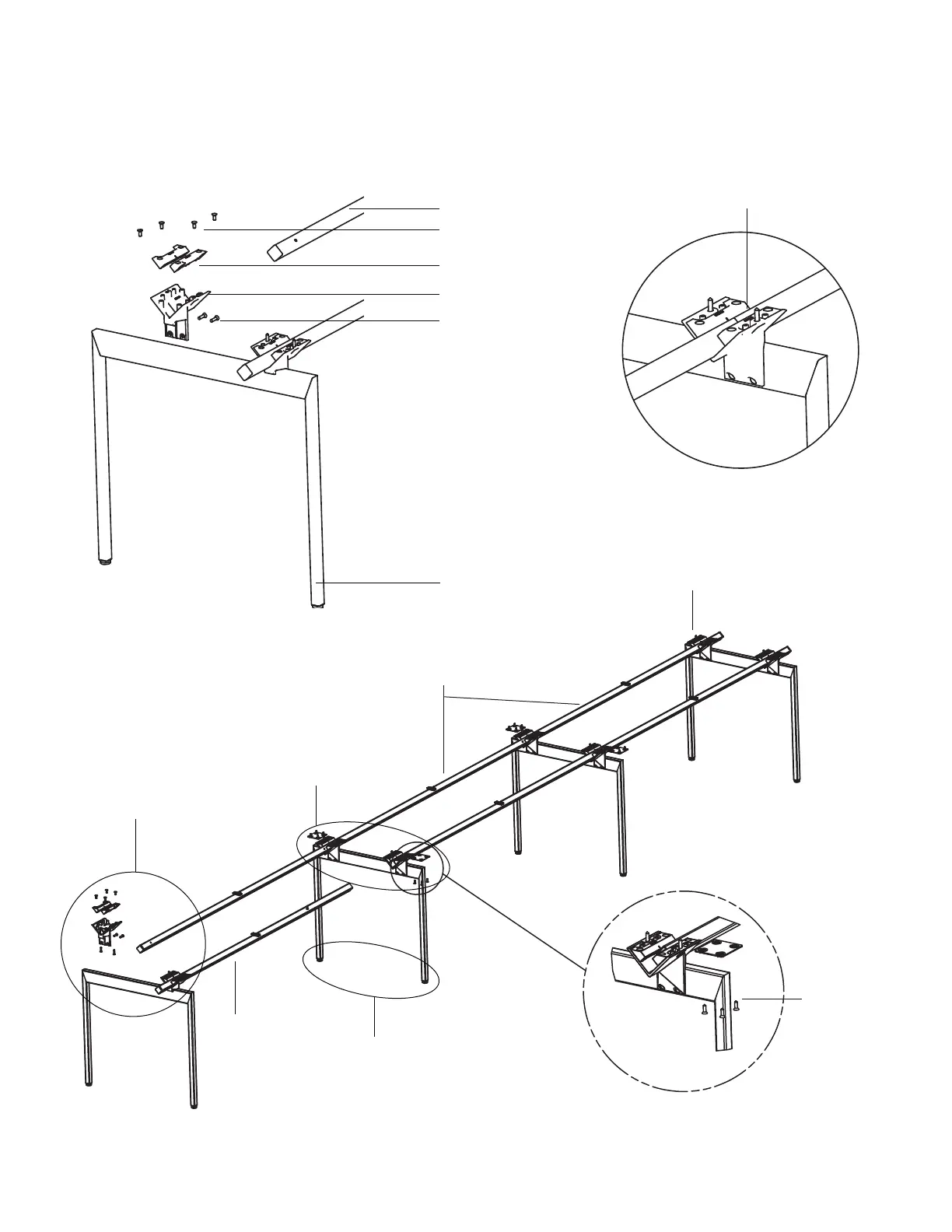

Exploded Linked Desk Assembly Detail
Steps 1, 2 & 3
Step 9
Starter Rails
Extended Rails
#14 x 1" FH
Wood Screw (G)
Step 4
(see additional
detail above)
NOTE: Flat brackets
must be used to connect
linked tops (see step 7).
Use install gauge to
position outermost legs
Starter Rail
Cradle Clamp (B)
Desk End Leg
Horizontal Rail Cradle (A)
¼-20 x 1" Machine
Screws
¼-20 x
5
/
8
" Machine
Screw (F)
