12" Deep Big Table Cable Basket and 6" Deep
Data Cable Basket
Center Beam
Step 1
Steps 2 & 3
Step 4
Step 5
Spring Nut (D)
Upper Rod Weldment (C)
M6 x 14mm Machine Screw (G)
Upper Cable Basket Bracket (A)
Lower Cable Basket Bracket (B)
M6 x 25mm Machine Screw (E)
5
/
16
-18 x ¾" Machine Screw (F)
Cable Basket
Lower Rod Weldment (H)
M6 x 25mm Machine Screw (E)
Upper Cable Basket Bracket (A)
Lower Cable Basket Bracket (B)
M6 x 25mm Machine Screw (E)
5
/
16
-18 x ¾" Machine Screw (F)
5
/
16
-18 x ¾" Machine Screw (F)
Steps 6 & 7
Step 8
Step 9

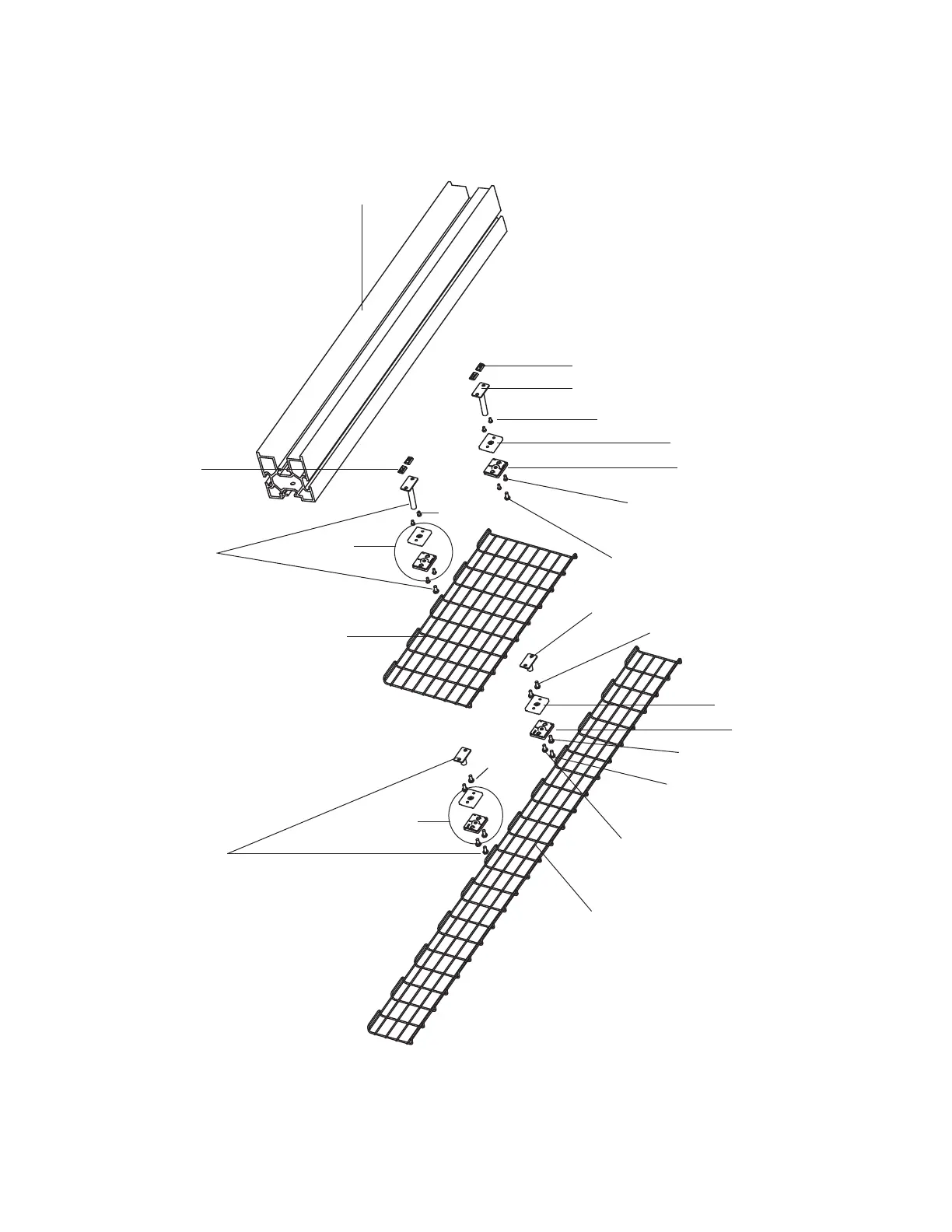

Exploded 12" D Big Table Cable Basket and
6" D Data Cable Basket Assembly
Data Cable Basket
