Knoll Antenna Workspaces - Page 91

Fabric Intermediate Screens- Full Depth for Use with
Tops without Hinged Access
Step 8
Screen
Step 1
Bayonet Mount
Bracket (A)
Steps 6 & 7
¼ - 20 x
3
/
8
" Black Oxide
Machine Screw (D)
Step 2
5
/
16
-18 x ¾" Machine Screw (C)
Screen Bottom Extrusion

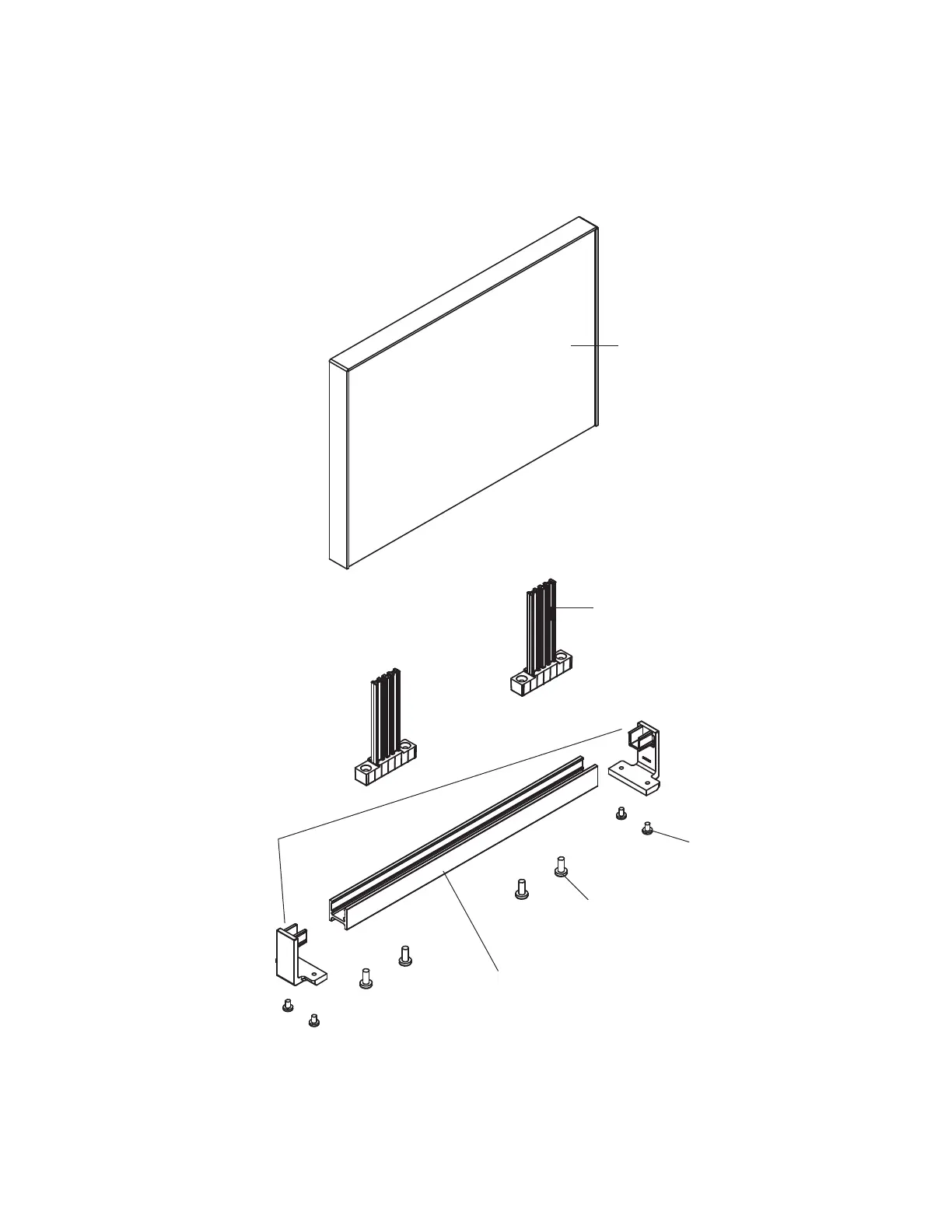

Full Depth Fabric Intermediate Screen Assembly Detail
Stes 4 & 5
Upholstered Intermediate
Screen Rail Clamp (B)
