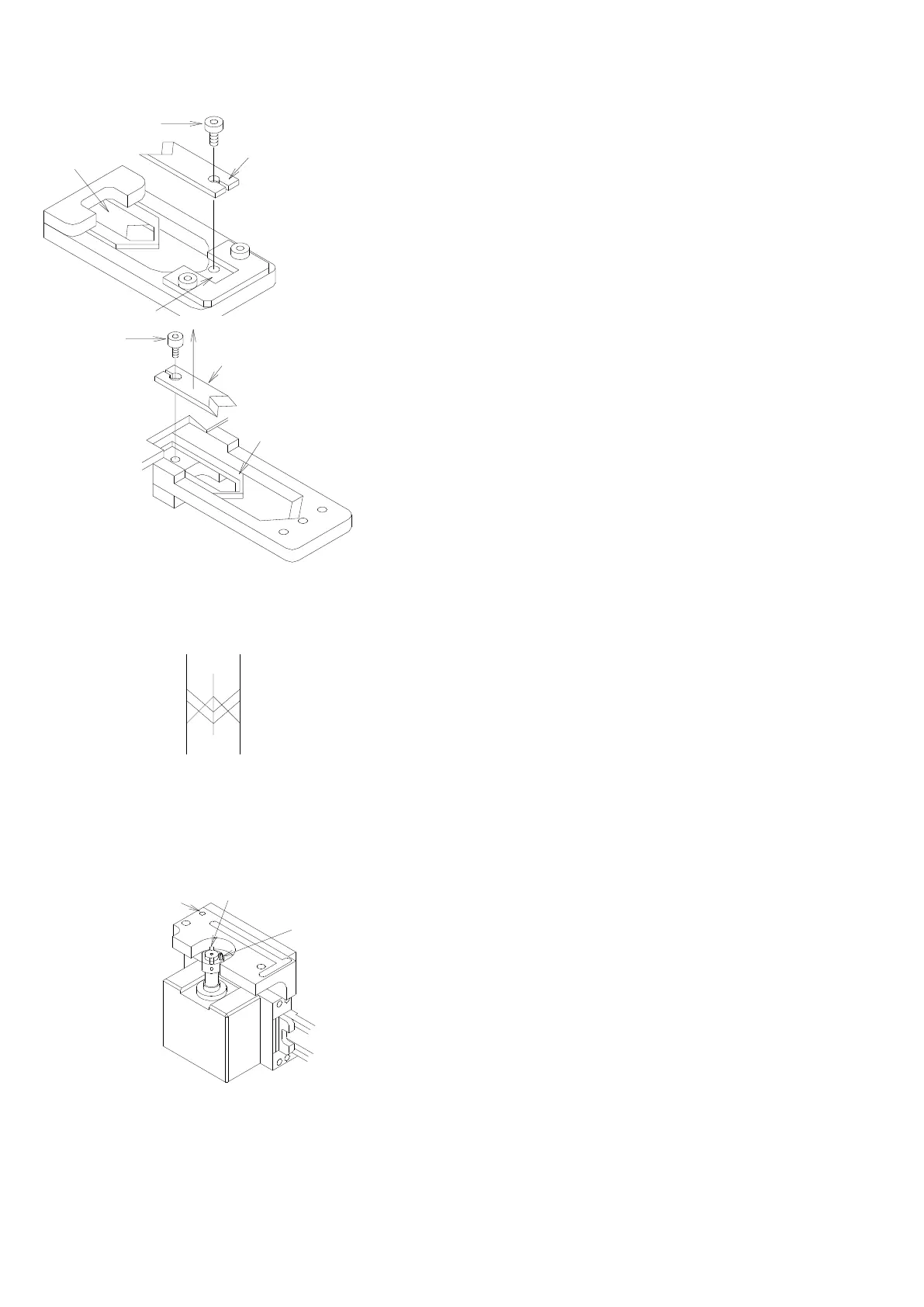

・ Remove M3 cap screw Ｂ with the included hex wrench and
take the lower blade out.
（See Fig4）
・ Remove M3 Cap Screw C and pull the upper blade
out in the direction of the arrow.
（See Fig 5）
・ To mount the blades, fully insert the upper blade
into the upper blade holder and fix it with cap screw
C firmly.
・ Next, insert the lower blade into the lower blade
holder completely and fix it with M3 cap screw B
firmly. （See Fig4）
・ After fixing the blades make sure that the upper
and lower blades are glided over each other without
misalignment as shown Fig.6
・Mount the blade block while adjusting the concave and convex
of the coupling , the pins, knock pin and knock hole to fit with
unit side precisely, then fasten M6 cap screw Ａ as shown in Fig.
（See Fig 7）
※Handle the blades extremely carefully.
