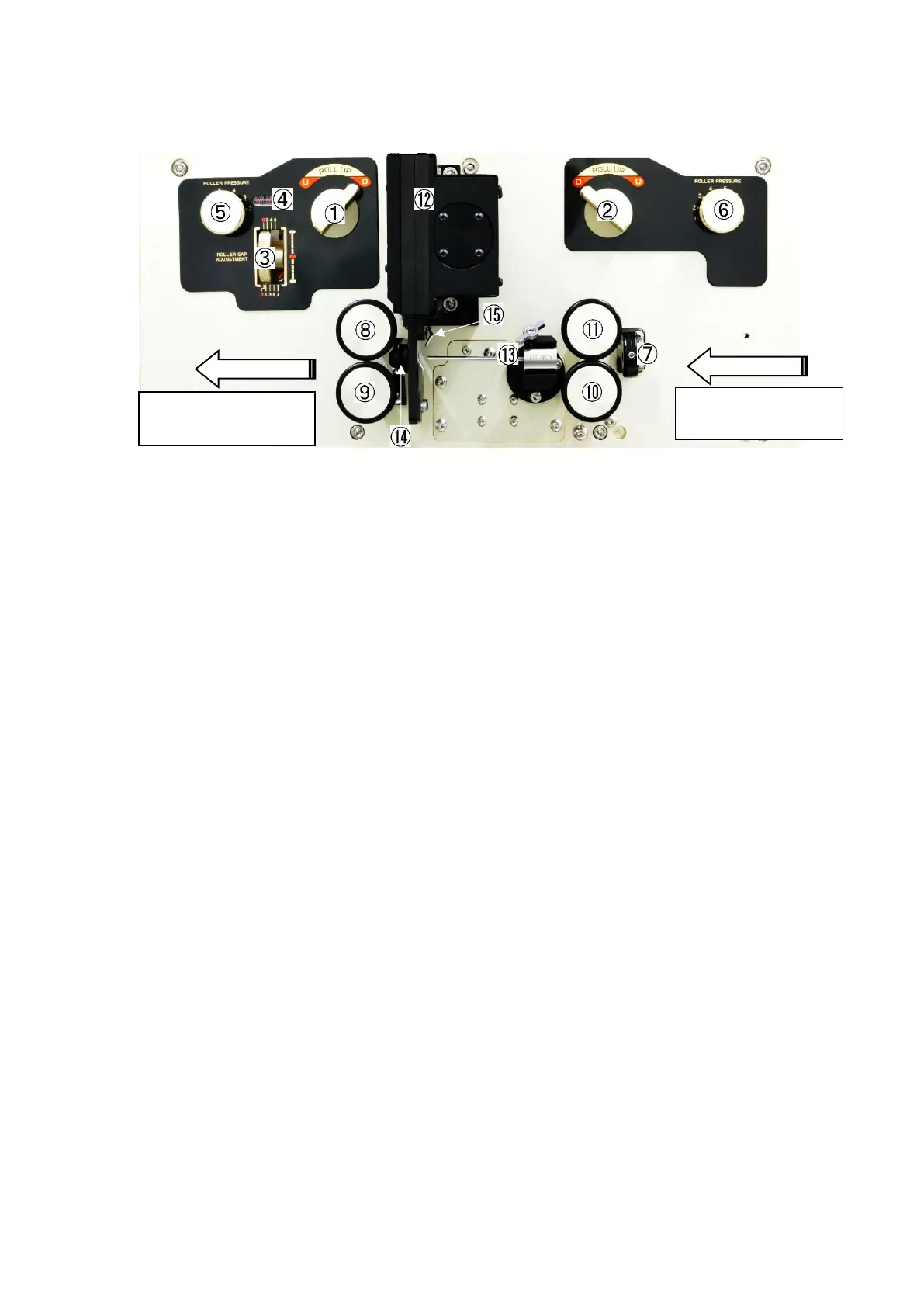

Names of front mechanical parts
①Left side knob for roller UP/DOWN
・・・Used to open the left side upper roller. The knob uses to take out wire or 《Short Mode》.
②Right side knob for roller UP/DOWN
・・・Used to open the right side upper roller. The knob uses to set a processing wire to the cutting
blade.
③Left side roller gap adjusting dial
・・・Used to adjust the left side both rollers gap. Turn the dial up, the gap becomes wider. Turn the
dial down, the gap becomes narrower. (Reference P.11-4)
④Wire detection indicator LED
・・・The LED lamp will light up when the Gap is adjusted correctly and the processed wire is
detected. (Reference P.11-4)
⑤Left side knob for roller pressure adjustment
・・・Used to adjust the left side wire pinching pressure. Pull the knob, turn it to the properly
pinching pressure, and push it in. (Reference P.25-7)
⑥Right side knob for roller pressure adjustment
・・・Used to adjust the right side wire pinching pressure. (Reference P.25-7)
⑦Right side wire guide
・・・Replace it depends on the wire outer diameter as much as possible. Too large for the wire outer
diameter, it may cause to fall wire off. Too small for the wire outer diameter, it may cause to
length variation. (How to replace the guide and guide size list. Reference P.26 P.32)
⑧⑨⑩⑪Roller
・・・Each roller is a common part. Use an appropriate roller depending on the adhesive strength of
insulator and the tolerance for roller marks. (Reference P.32 Option part list)
⑫Cutter block
・・・It works during cutting and stripping, and it has sharp blades attached to the top and bottom.
Please use these blades carefully. Blades are consumption parts. Please be careful with the
blade condition sufficiently, wear and chipping of blades greatly affects wire processing. (How
to replace the blade. Reference P.26)
⑬Guide pipe
・・・Please refer P.32,P.33 instructions, and use appropriate guide pipe for each wire outer
diameter.
⑭Left side wire guide
・・・Choose from 2 types of wire guide to match the processing wire. (Reference P.32)
⑮Insulation scum removal air nozzle
・・・Removal air blows during full stripping processing to remove insulation scum.
Air pressure has been adjusted already using the air regulator inside the main unit.
