KODERA CASTING C370G - How to Attach and Use CN-03（Wire Straightener

7
4. How to Attach and Use CN-03 （ wire straightener ）

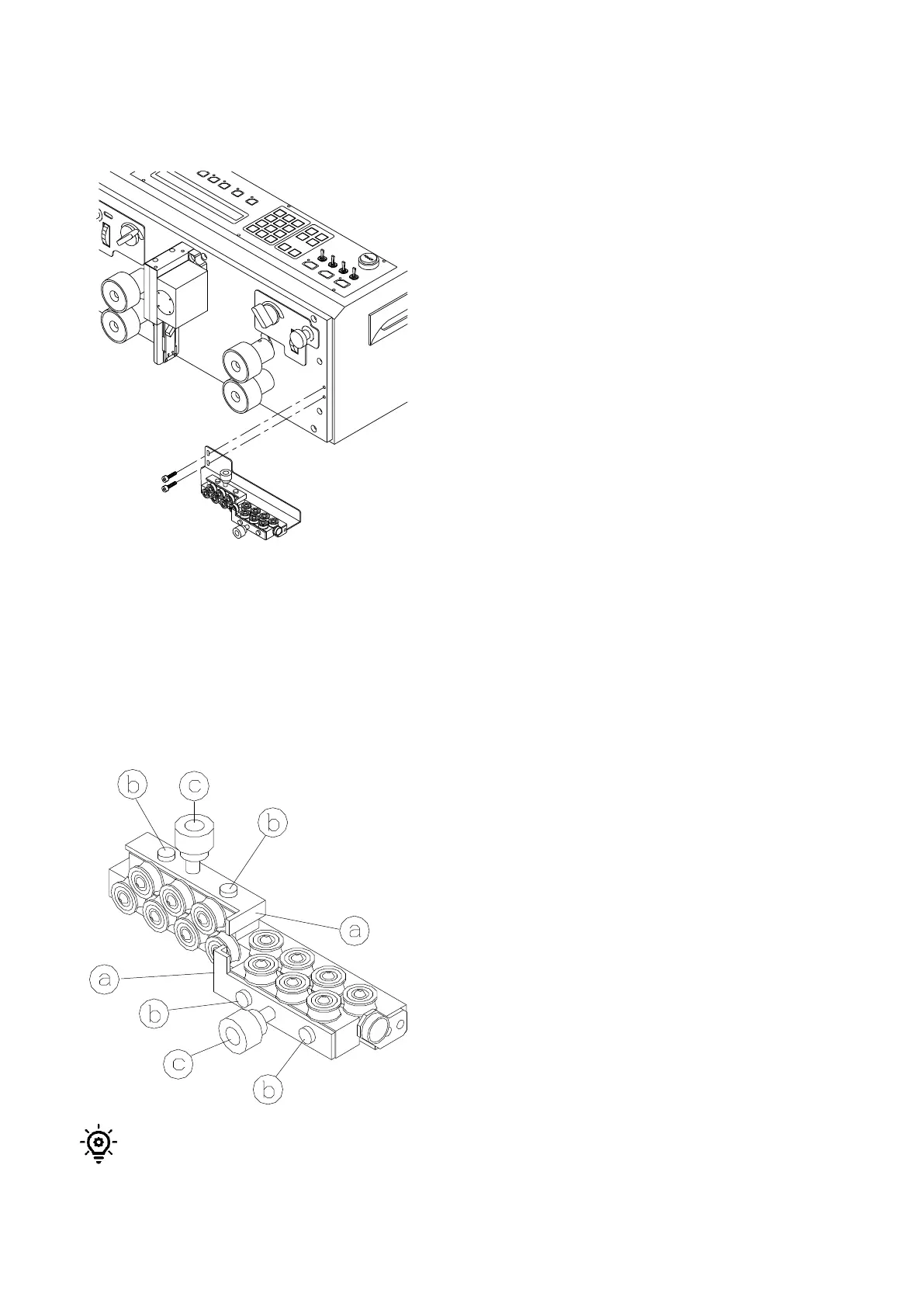

・How to attach
Please fix CN-03 with the attached M4 cap screws like
left figure.
・How to use
Push
○
a (lever) to left or right, the lock function will be released and roller gap widens. Let the wire
through and press
○
b .
Turn the
○
c (knob) and adjust roller gap. Turn the
○
c (knob) clockwise to narrow the roller gap. Turn
it counterclockwise the gap will widen. Adjust the vertical and horizontal direction roller gap to be
same.
Depending on the wire type, some wire curls are easy to remove, while others are difficult to get rid
of wrapping curl. Please correspond to each wire type.
If the roller gap is too narrow (strong), measurement resistance may occur and the total
processed wire length may be shortened.
