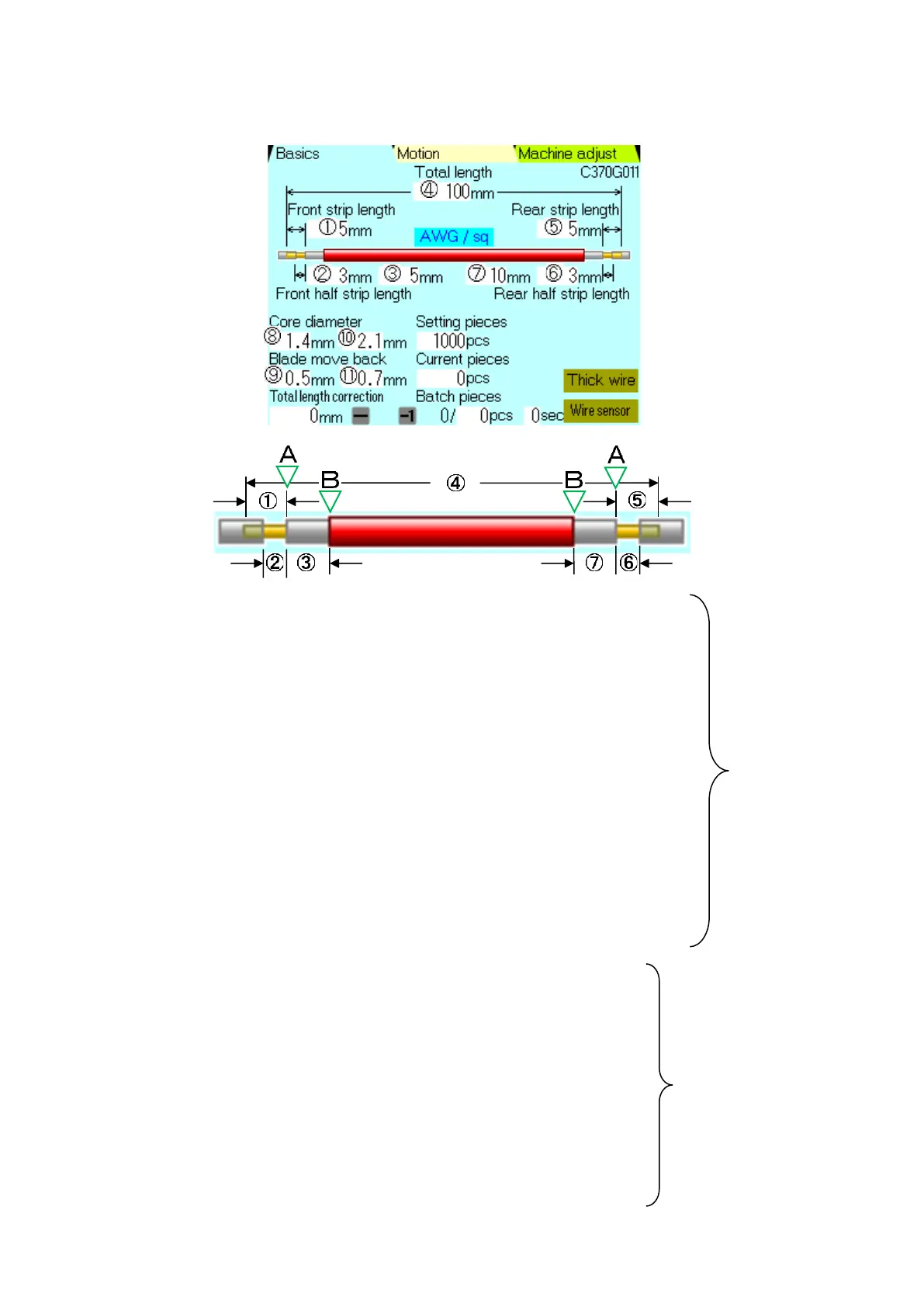

《Basics》 screen at 《Sheath Strip (half stripping of core wire)》
Select ⑩on the 《Motion》screen （P.13）.
①《Front Strip Length》：Setting of the stripping length of the front side
insulation.
②《Front Half Strip Length》：Setting of the half stripping length of front
side.
③Setting of the stripping length of front side outside insulation.
④《Total Length》：Setting of the total cutting length of the wire.
⑤《Rear Strip Length》：Setting of the stripping length of the rear side
insulation.
⑥《Rear Half Strip Length》：Setting of the half stripping length of rear
side.
⑦Setting of the stripping length of the rear side outside insulation.
⑧《Core Diameter》：Depth of the blade at A when stripping the
insulation.(See P.10-2)
⑨《Blade Move Back》：Blade’s move back at A when stripping the
insulation.(See P.11)
⑩Depth of the blade at B when stripping the outside insulation. (See
P.10-2)
⑪Blade’s move back at B when stripping the outside insulation. (See
P.11)
