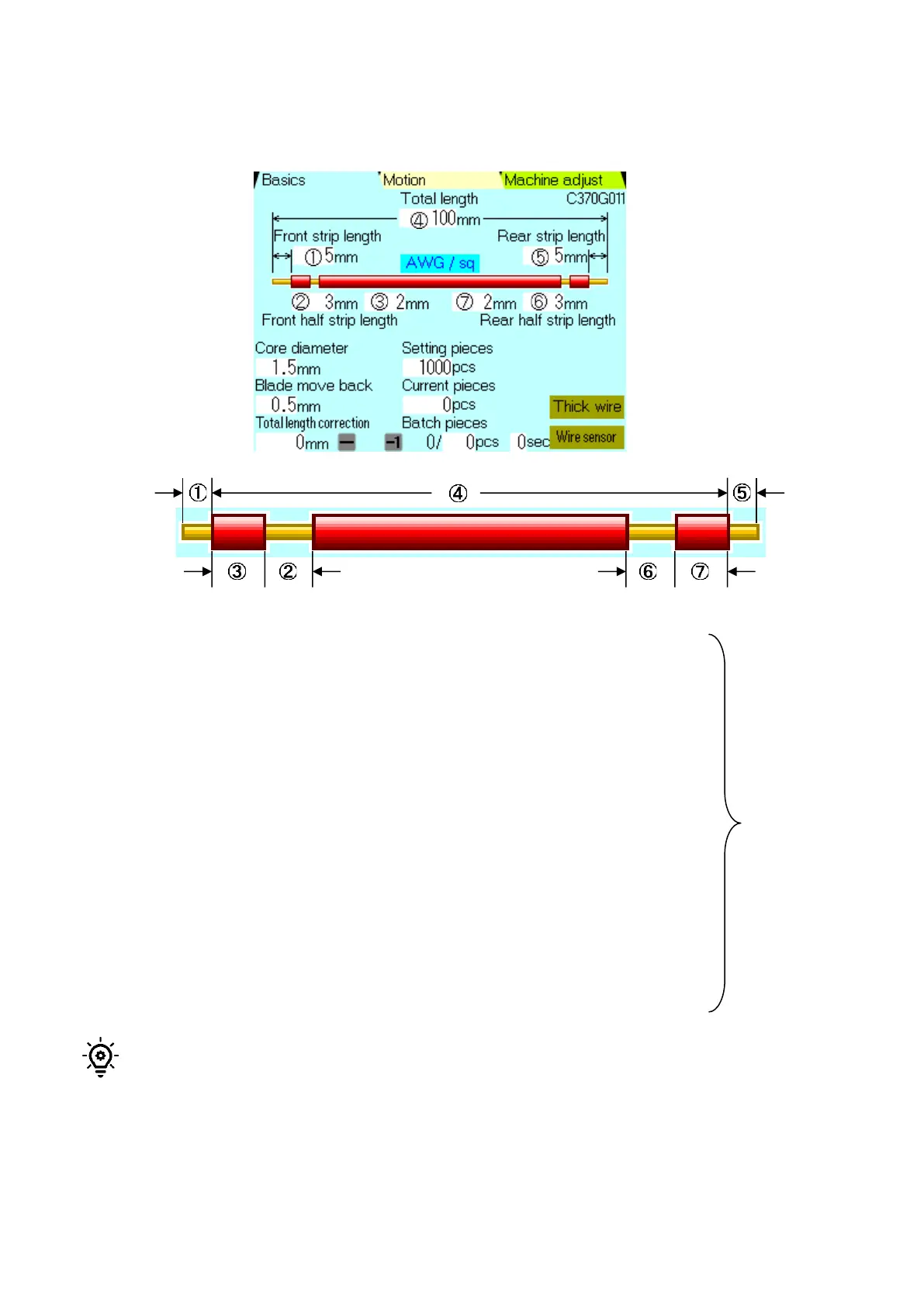

《Basics》 screen at 《Double strip》 Select 《Double strip》 on the 《Motion》 screen （P.15
⑨）.
①《Front Strip Length》：Setting of the stripping length of the front side
insulation.
②《Front Hal Strip Length》：Setting of the half stripping length of front side of
the wire
③《Front Disintermidiate Length》：Setting of the insulation length of front side
which is not stripped.
④《Total Length》：Setting of the total cutting length of the wire.
⑤《Rear Strip Length》：Setting of the stripping length of the rear side
insulation.
⑥《Rear Half Strip Length》：Setting of the half stripping length of rear side of
the wire.
⑦《Rear Disintermediate Length》：Setting of the insulation length of front side
which is not stripped.
ONE POINT: When adherence of core wire and insulation is strong, processing may not
be performed just like setting.
Please change the settings flexibly based on the processed wire materials.
