KODERA CASTING C370G - When Taking out the Wire after Finishing the Processing; 9．Replacement of Guide Pipe; 10．Replacement of the Guide Wire; 11．Replacement of Blades

26
8. When taking out the wire after finishing the
processing.
Turn the roller UP/DOWN tab on the mechanical section to up the roller and take out the wire.
Note： Take out the wire when it’s not processed. Because the wire may be transformed if
the wire is pinched by the feeding rollers for a long time.
9 ． Replacement of Guide Pipe
・Demount Loosen screw Ａ, and pull it out to the operator’s side.
・Mount Fix the guide pipe so that the knock
pin is inserted into the knock hole and fasten
Screw A.
Be careful not to overtighten screw A.
（See Fig.1）
10 ． Replacement of the Guide Wire
・Demount Loosen screw Ａ with the included hex wrench and pull it
out to the right side.
・Mount Fully insert the wire guide so that M3 screw Ａ fits in the
grooves of the wire guide, and fasten the M3 screw A.
（See Fig.2）
11 ． Replacement of Blades
Handle the blades with careful attention.
It may cause injuries.
・ Remove two pieces M6 screw Ａs with the included hex wrench,
and remove the cutter block.
Pull it out to your side gently and horizontally because the knock
pin is inserted for positioning.
（See Fig.3）

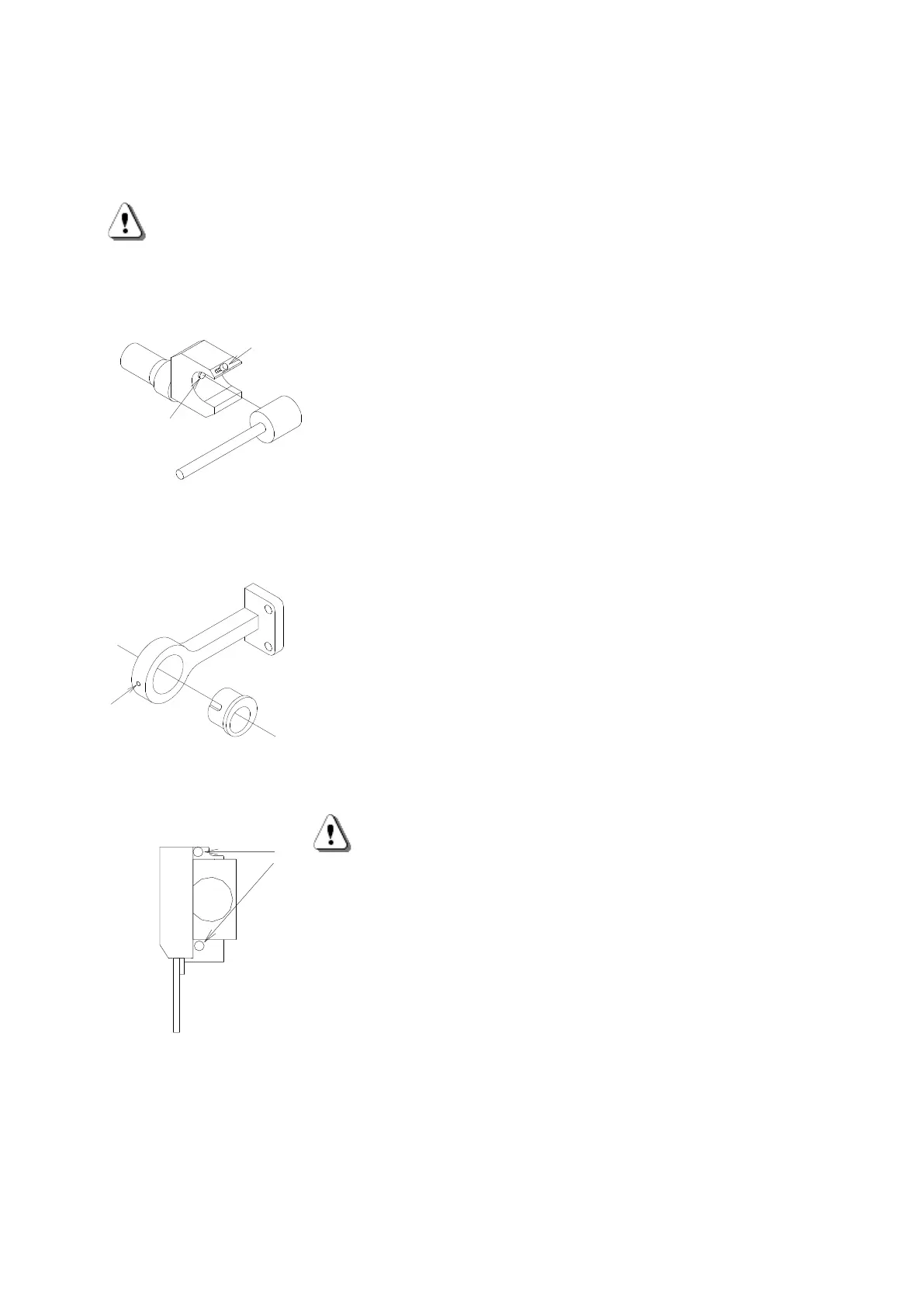

Fig.1
Knock pin
A
A
Fig.2
Fig.3
A
