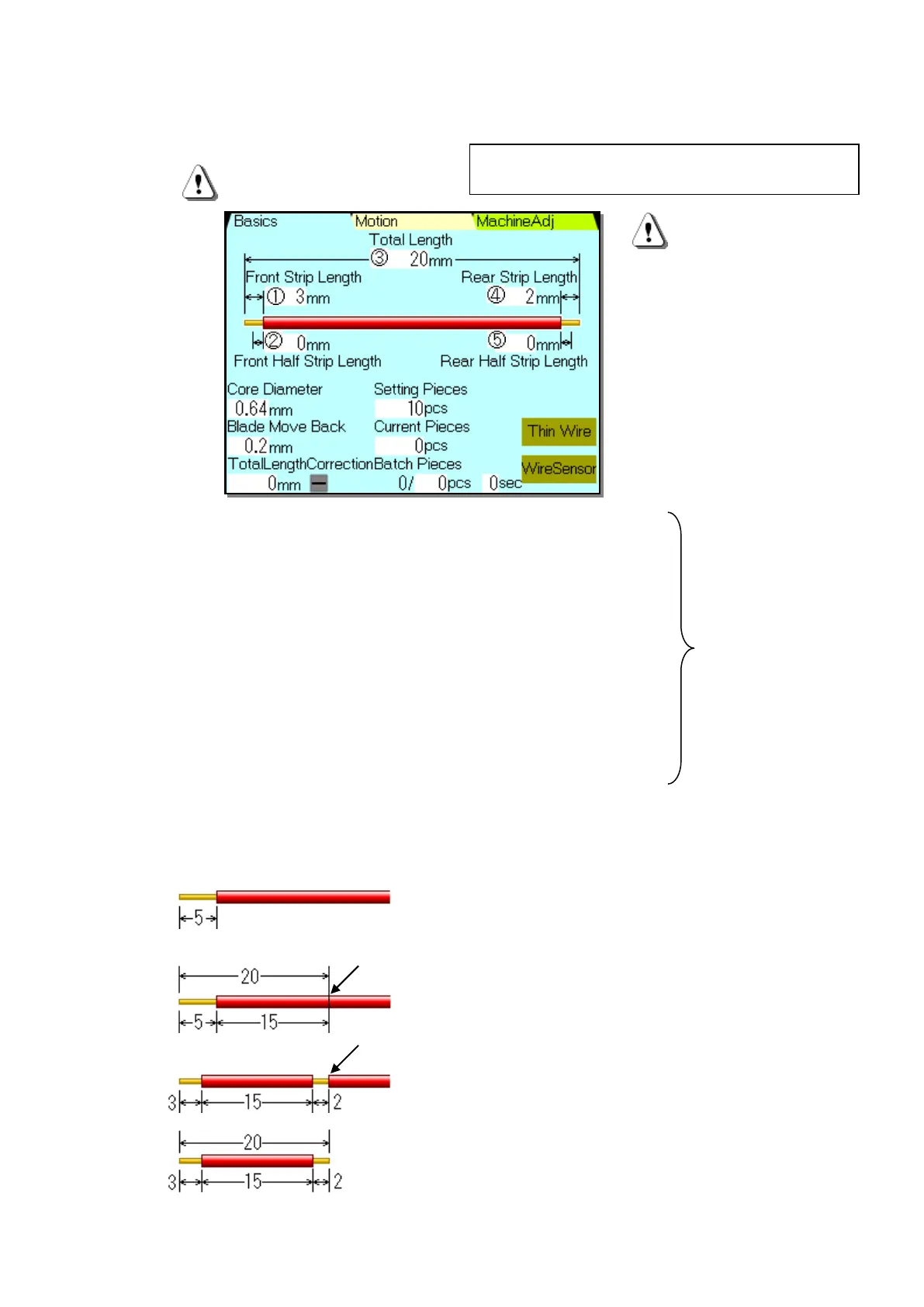

《Basics》 screen at 《Short Mode》
Select 《Short Mode》 on the 《Basics》 screen（P.11）.
The left roller should be UP.
①《Front Strip Length》：Setting of the stripping length of the
front side insulation of the wire.
②《Front Half Strip Length》：Setting of the half stripping length
of front side of the wire.
③《Total Length》：Setting of the cutting length of the wire.
④《Rear Strip Length》：Setting of the stripping length of the rear
side insulation of the wire.
⑤《Rear Half Strip Length》：Setting of the half stripping length
of rear side of the wire.
Explanation of the motions （In case of the sizes above）
When processing a short
length wire, it is possible to
perform half-
stripping.
But the state of the
half-stripping might be
different from the one
which you have expected.
When the length of the remaining wire
insulation is shorter than 47.9mm
Unit:
0.1mm
Strip “5mm” which is “Front side 3mm”and “rear side 2mm”
Insert the blade at the position where
“Total Length is 20mm”.
Insert the Blade
Move the insulation by 2mm for “rear side”.
Completed.
Cut
（1）
（3）
（2）
（4）
