KODERA CASTING C371A - Basics》 Screen at 《Divide Strip

14

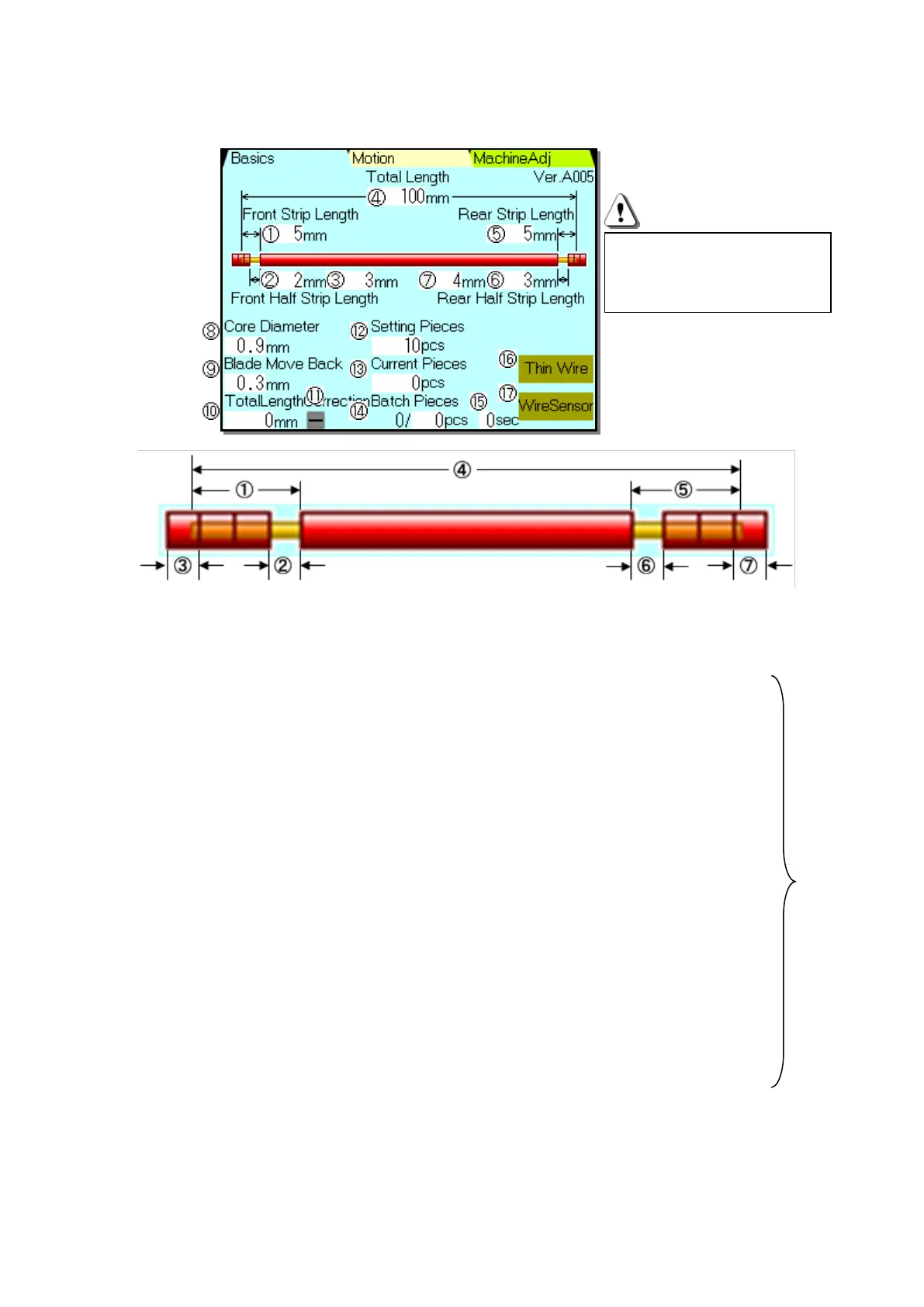

《Basics》 screen at 《Divide Strip》
Select 《Divide Strip》 at 《Motion》 screen （P.11）.
①《Front Strip Length》：Setting of the stripping length of the front side insulation.
②《Front Half Strip Length》：Setting of the half-stripping length of front side of
the wire.
③《Front Divide Strip Length》：When stripping can’t be performed because
of the adherance of the core wire or long stripping,
it is done by dividing.
Input each stripping length (mm) to divide.
④《Total Length》：Setting of the cutting length of the wire.
⑤《Rear Strip Length》：Setting of the stripping length of the rear side insulation.
⑥《Rear Half Strip Length》：Setting of the half stripping length of rear side of
the wire.
⑦《Rear Divide Strip Length》：When stripping can’t be performed because of the
strong adherence of the core wire or long stripping,
it is done by dividing.
Input each striping length (mm) to divide.
Divide strip processing,
please be sure to enter the
Half-strip length.
Unit:
0.1mm
