KODERA CASTING C371A - Basics》 Screen at 《Sheath Strip》(Half Stripping of Core Wire)

16

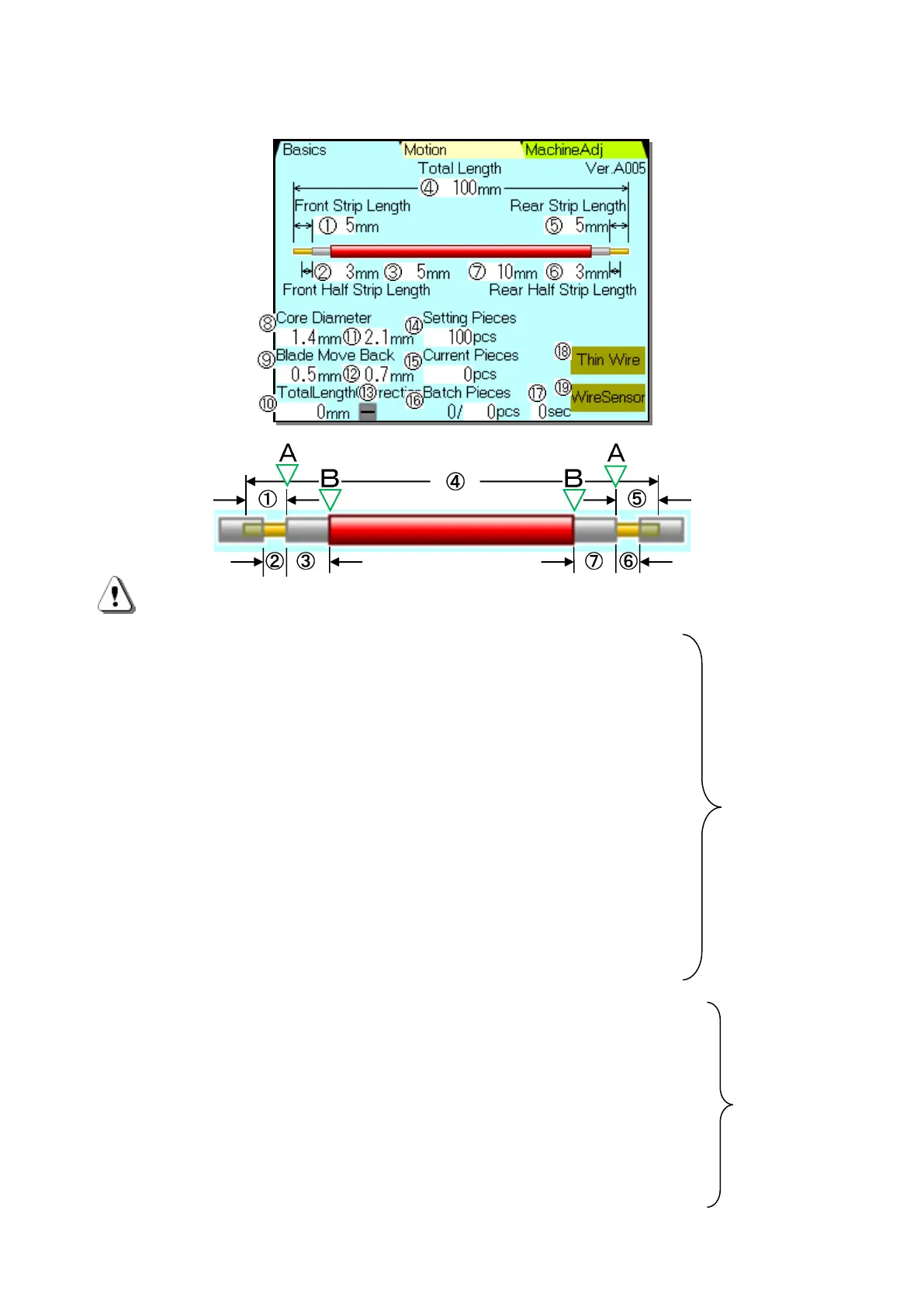

《Basics》 screen at 《Sheath Strip》(half stripping of core wire)
Select ⑧ on the 《Motion》screen （P.11）.
At above Figure, Semi-Strip scene are displayed so that setting becomes easily
understandable. But it is not displayed on the screen of the device.
①《Front Strip Length》：Setting of the stripping length of the front
side insulation.
②《Rear Half Strip Length》：Setting of the half stripping length of
front side.
③Setting of the stripping length of front side outside insulation.
④《Total Length》：Setting of the cutting length of the wire.
⑤《Rear Strip Length》：Setting of the stripping length of the rear side
insulation.
⑥《Rear Half Strip Length》：Setting of the half stripping length of
rear side.
⑦Setting of the stripping length of the rear side outside insulation.
⑧《Core Diameter》：Depth of the blade at A when stripping the
insulation. (See P.8)
⑨《Blade Move Back》：Blade’s move back at A when stripping
the insulation. (See P.9)
⑩Depth of the blade at B when stripping the outside insulation. (See P.8)
⑪Blade’s move back at B when stripping the outside insulation.(See P.9)
Unit:
0.1mm
Unit:
0.01mm
