9
Depth of the blade when stripping should be as deep as possible but not damage the core. In
case that the blade scratches the core wire, set the numerical value of 《Blade Move Back》 to
open the gap of the blade which once cut in by the numerical value of the 《Blade Move Back》
and strip.
Appropriate value of 《Blade Move Back》 is:
・1/3 of 《Core Diameter》
・Half of the thickness of the insulation.
Input
⑥
《Core Diameter》
[0] [.] [6] [4]
[SET]
⑦
《Blade Move Back》
[0] [.] [2]
[SET]
3.Next is setting the number of pieces to be processed. Select 《Setting Pieces》 and input
the number with Ten keys in the same way.
You can set it to 99,999 pieces maximum. At trial processing, 2 or 3 pieces are set up.
The settings of all the processing conditions are completed.
・When a setting is error or you want to change it, press the select key again so that you can
change it.
Input
⑧
《Setting Pieces》
[1] [0]
[SET]

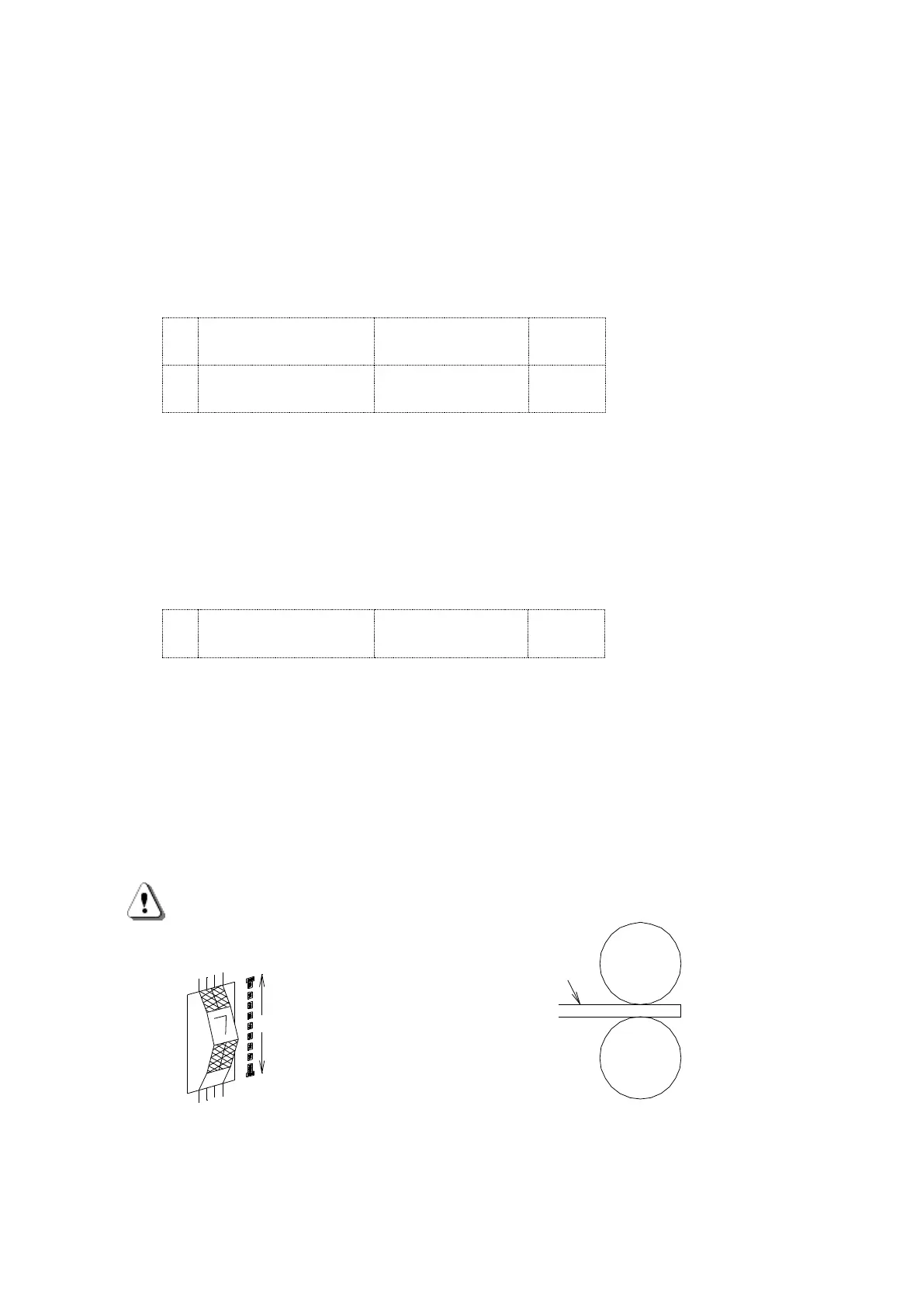

4.Adjustment of the left side roller gap
Handling the UP/DOWN knob of the left side roller to grasp the wire intended to be
processed, keep the knob at the
D
(Down) position.
Turn the roller gap dial on the front mechanical section and adjust the dial to the degrees
that the wire to be processed can’t be pulled out even by hand. In general, as a rough guide,
turn down the dial to half or 360-degree roll from the position where the wire sensor lamp is
vanished.
Caution・・・The gap should be wider or narrower depending on the kinds of wire.
上へ回す→広がる
下へ回す→狭くなる
加工したい線材
左側ローラー
ローラーギャップ調整ダイヤル
Turn the dial up
→ The gap opens up
Turn the dial down
→The gap becomes narrower
Adjustment of the roller gap
Wire intended
to be processed
Left side roller
