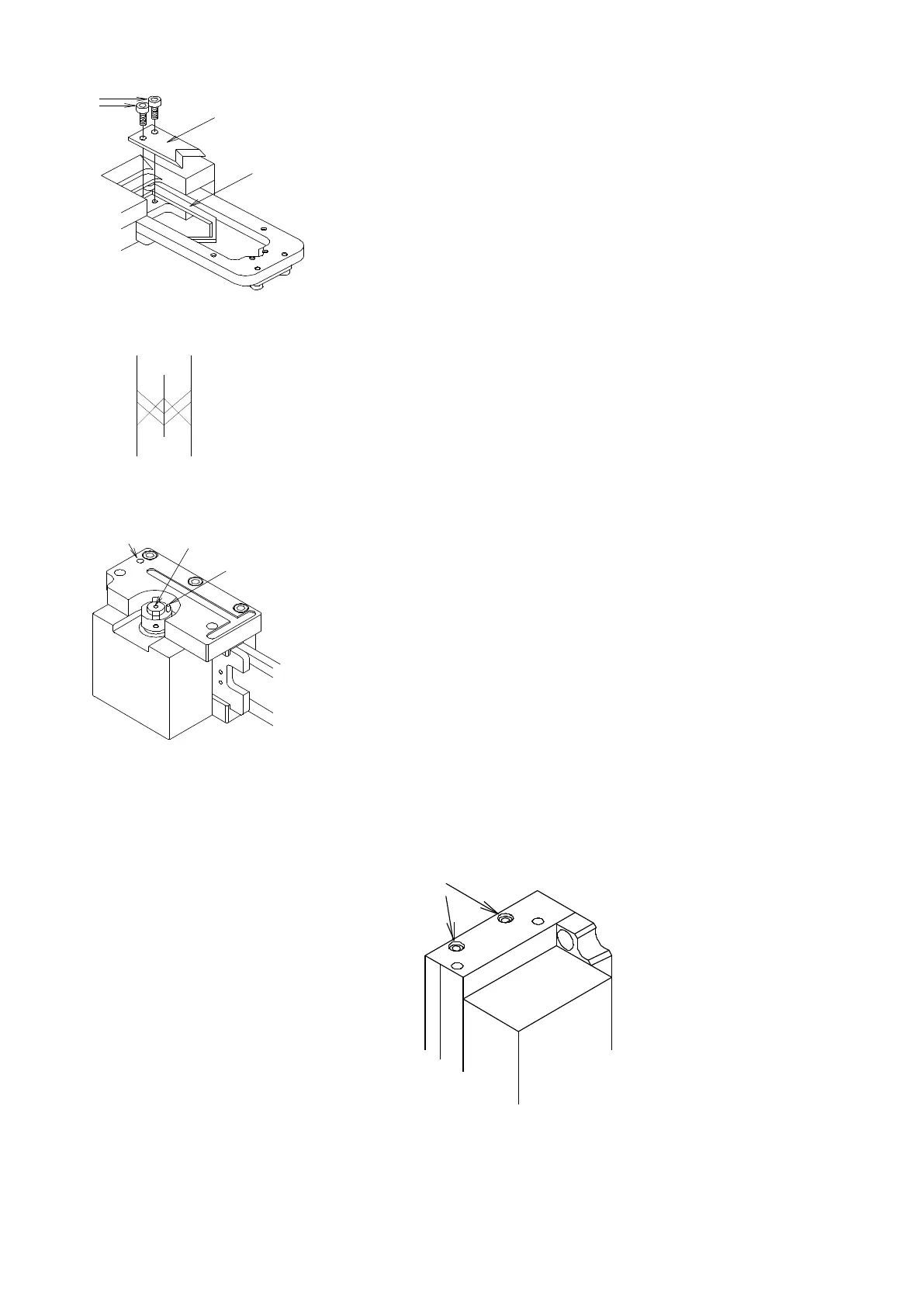

・ Remove Screw Ｃ and pull the upper blade out in the
direction of the arrow. （See Fig 5）
・ To mount the blades, fully insert the upper blade into the
upper blade holder in the opposite direction of the allow as
shown in Fig 5. And fix it with screw C firmly.
・ Next, insert the lower blade into the lower blade holder
completely and fix it with screw B firmly.
・ After fixing the blades make sure that the upper and lower blades are
glided over each other without misalignment as shown Fig.6
・Mount the blade block while adjusting the concave and convex of the
coupling , the pins, knock pin and knock hole to fit precisely、
Then fasten screw Ａ as shown in Fig 3.
（See Fig7）
※Handle the blades extremely carefully.
11. Maintenance and inspection
Allways turn the illuminated ON/OFF switch of the C371A to OFF prior to carrying out any
conversion, maintainance or inspection work on the machine.
BLADE BLOCK
-Remove screw A and pour grease
into hole A.
-Fasten screw A.
*To prevent the blade block from
seizing, check that grease is
always supplied.
Make sure the blades are always lubricated to prevent them from jamming, i.e. occasional
checks are necessary.
Dirt is the most common cause of operating problems!
