3.How to Attach and Use CN-03
（
dressing machine
）
,
(optional)
・How to attach

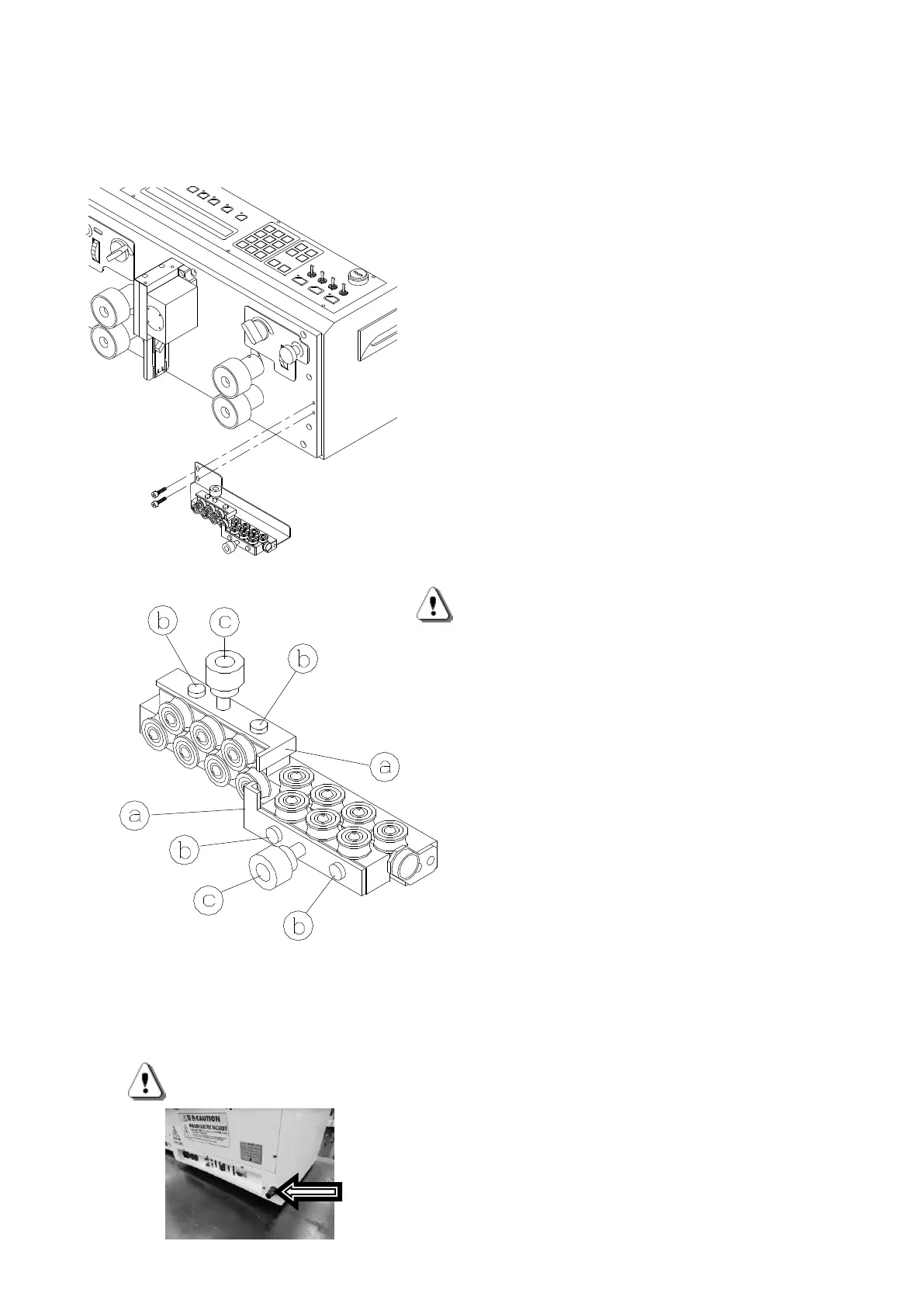

Attach CN-03 with the cap screws like left figure.
・How to use
Push
○
a （ plate ） right and left and
straightening part is widened. Let the wire
through and press
○
b .
Adjust strong and weak of the straightening
by turning
○
c (knob).
Caution：If the straightening part is
narrower(stronger), the total length of the
processed wire will be shorter.
How to connect air tube
・The slug remove air is made to work with the power of the air. Let through the regulator
from the compressor to provided coupler to connect to the insertion opening on the rear side
of the main body.
A suitable numerical value for the air pressure is 0.4～0.5MPa.
Do not input a pressure value higher than 0.65MPa.
