How to set up the processing conditions

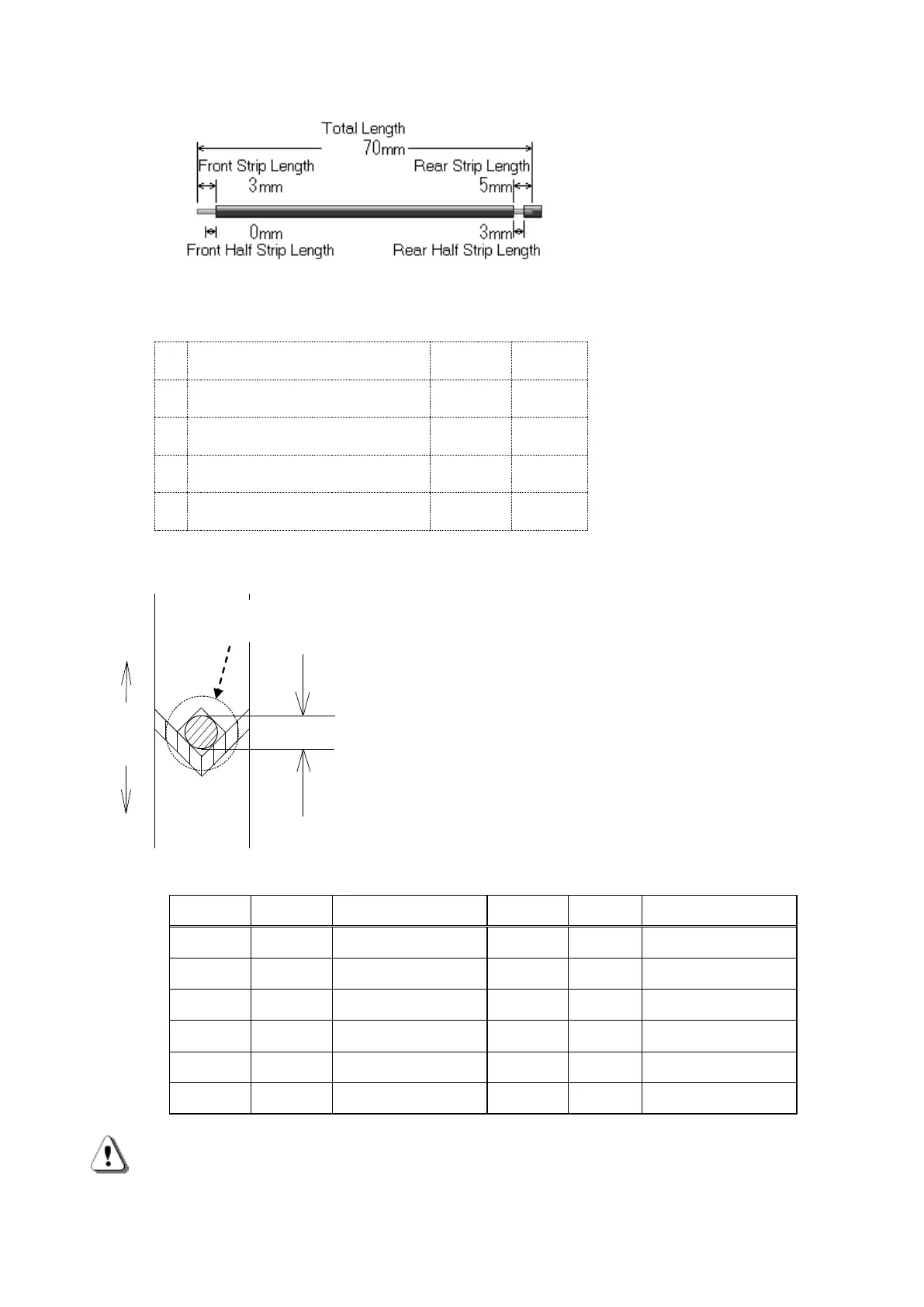

1.The wire of the above picture is to be processed.
Input
①
《Front Strip Length》
[3]
[SET]
②
《Front Half Strip Length》
[0]
[SET]
③
《Total Length》
[7] [0]
[SET]
④
《Rear Strip Length》
[5]
[SET]
⑤
《Rear Half Strip Length》
[3]
[SET]
2.Setting of the blade’s depth when stripping
Input the numerical value of the core diameter of the
wire rod which is to be processed. Input it according to
the list below. And perform trial-produce. If the core wire
is scratched, increase the numerical value and if it’s not
stripped, decrease the numerical value to select the
appropriate value.
The value can be input in a unit of 0.01mm.
Sq
AWG
Core Diameter
Sq
AWG
Core Diameter
0.08
#28
0.32mm
1.25
#16
1.29mm
0.13
#26
0.40mm
2.0
#14
1.63mm
0.2
#24
0.51mm
3.5
#12
2.05mm
0.3
#22
0.64mm
5.0
#10
2.59mm
0.5
#20
0.81mm
8.0
#8
3.21mm
0.75
#18
1.02mm
10.0
#7
3.67mm
・When sum of “Core Diameter” value and “Blade Move Back” value is more than “10mm”,
error comes up.
・This is a rough indication because even if the number is same, the numerical value of the
《Core Diameter》 may be different depending on the type of the wire to be processed.
刃
線材
芯線直径
Movable
blades
Wire
Core Diameter
Wire size 0.3sq
Required Pieces １０pieces
