Kohler Courage SV470 - Removing Carburetor; Removing Heat Deflector Screw and Ground Lead; Disconnecting Pulse Line from Fitting; Disconnecting Fuel Line from Carburetor

8.4
Section 8
Disassembly
1. Shut off the fuel supply. Disconnect the fuel line
from the carburetor inlet fiing. See Figure 8-11.
If a fuel pump is used, disconnect the pulse line
from the fiing on the closure plate. See Figure
8-12.

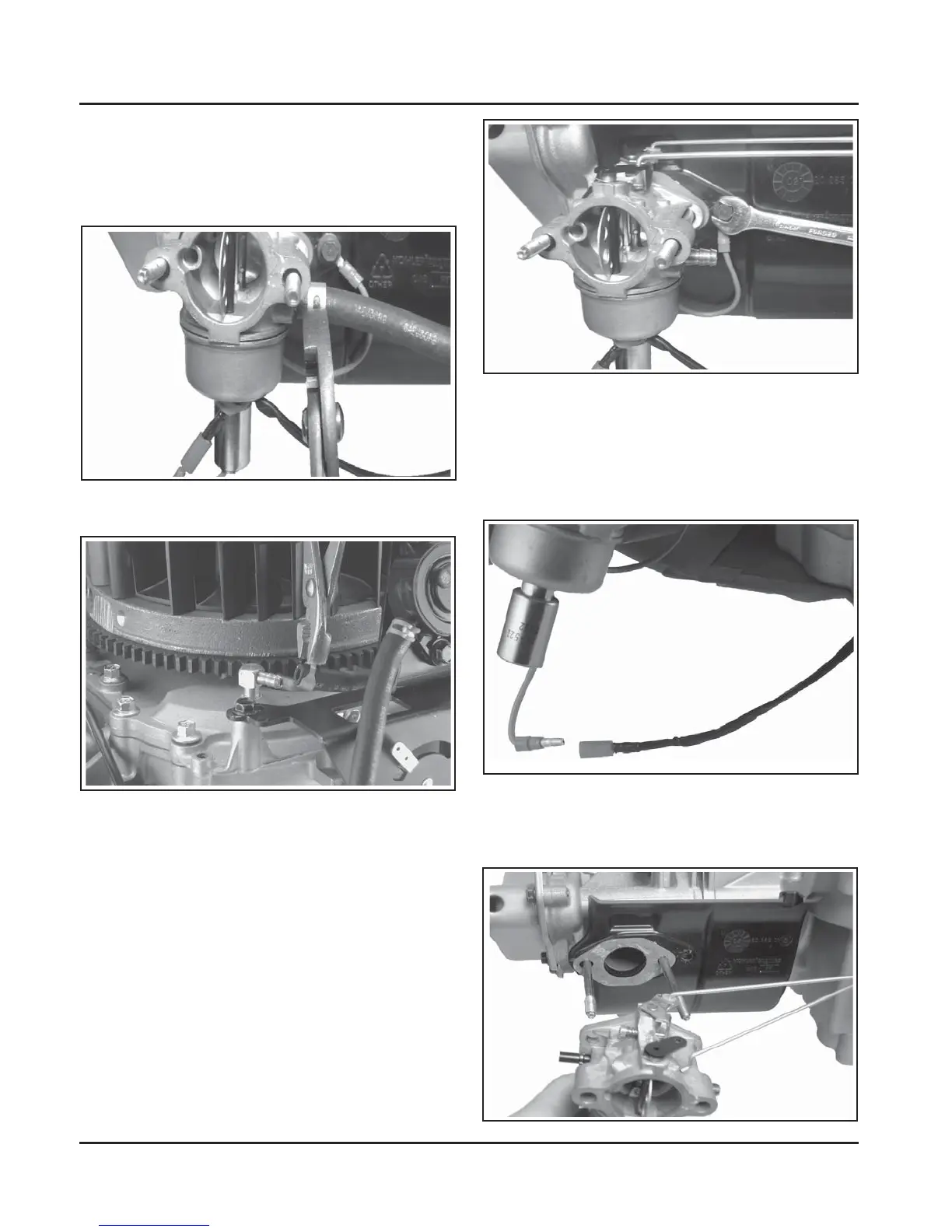

Figure 8-11. Disconnecting Fuel Line from
Carburetor.
Figure 8-13. Removing Heat Deflector Screw and
Ground Lead.
3. If the carburetor uses a fuel solenoid, carefully
cut the plastic tie strap and disconnect the fuel
solenoid lead from the wiring harness. See Figure
8-14.
Figure 8-15. Removing Carburetor.
Figure 8-12. Disconnecting Pulse Line from Fitting.
2. Remove the heat deflector mounting screw and
special washer, which also secures the ground
lead for the fuel shut-off solenoid, if so equipped.
See Figure 8-13.
Figure 8-14. Disconnecting Fuel Solenoid Lead.
4. Slide the carburetor outward and disconnect the
throle and choke linkages. See Figure 8-15.
