TP-6461 1/08 99Section 6, Component Replacement, Model KSS Switches
19. Insert four mounting screws with washers and align
the mounting bracket with marks made in step 13.
20. Tighten all four bolts to 10.8 Nm (96 in. lb).
21. Connect the DC fast-on connections to the DC
terminals of the rectifier. See Figure 6-23.
Note: A red dot identifies one DC terminal. The
other DC terminal is at the opposite corner.
22. Install any required tie wraps. See Figure 6-23.
23. Close the ATS enclosure.
24. Reconnect power to the ATS.
25. Enable the generator set startup.
a. Check that the generator set master switch is in
the OFF position.
b. Reconnect the generator set engine starting
batter(ies), negative (--) lead last.
c. Reconnect the battery charger, if equipped.
26. Move the generator set master switch to the AUTO
position.
27. Test the transfer switch operation by performing
the Automatic Operation Test Procedure described
in Section 4.5.4.
Note: Do not leave transfer switch in Test mode.

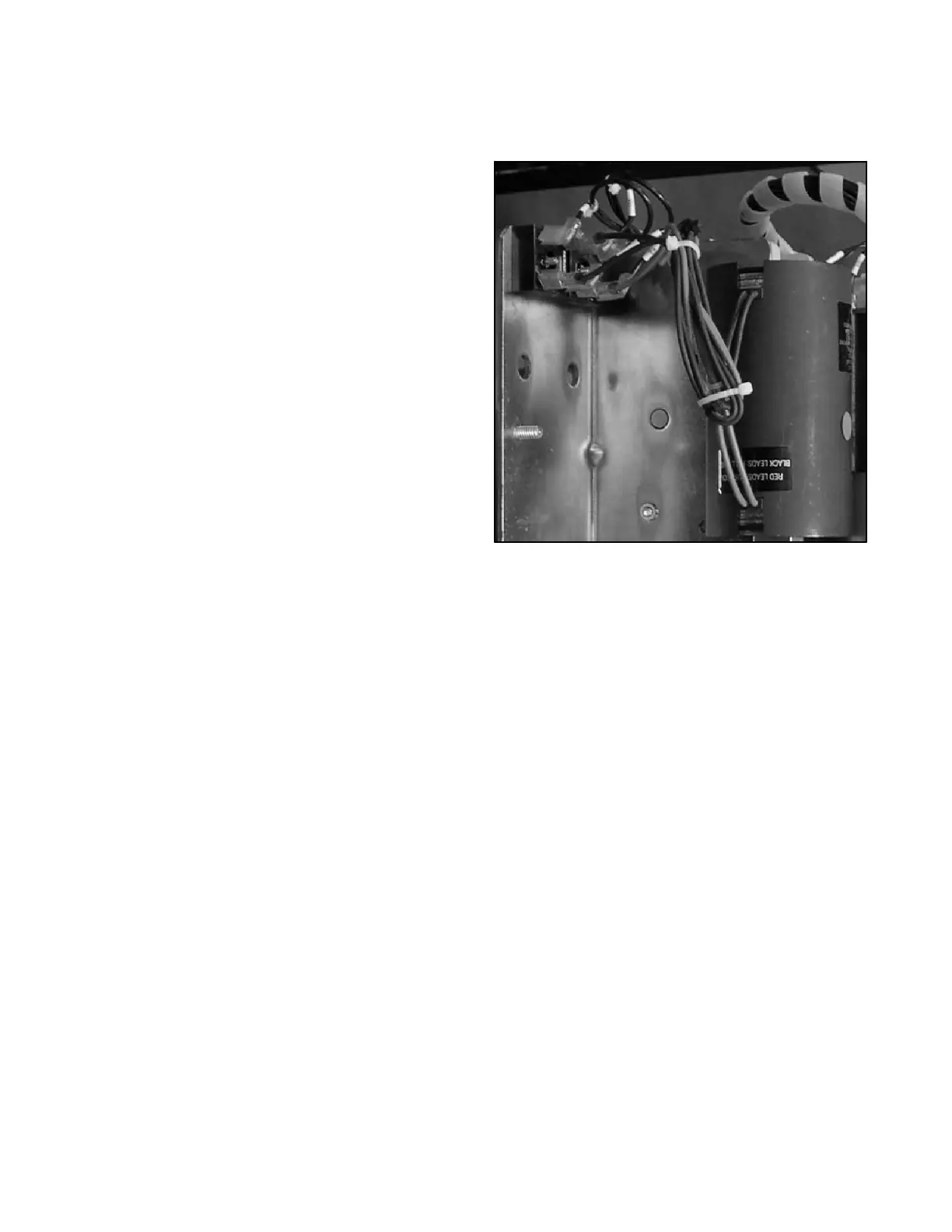

Figure 6-23 Rectifier Connections and Tie Wraps
