AKD2G Product Safety Guide | 9 Appendix

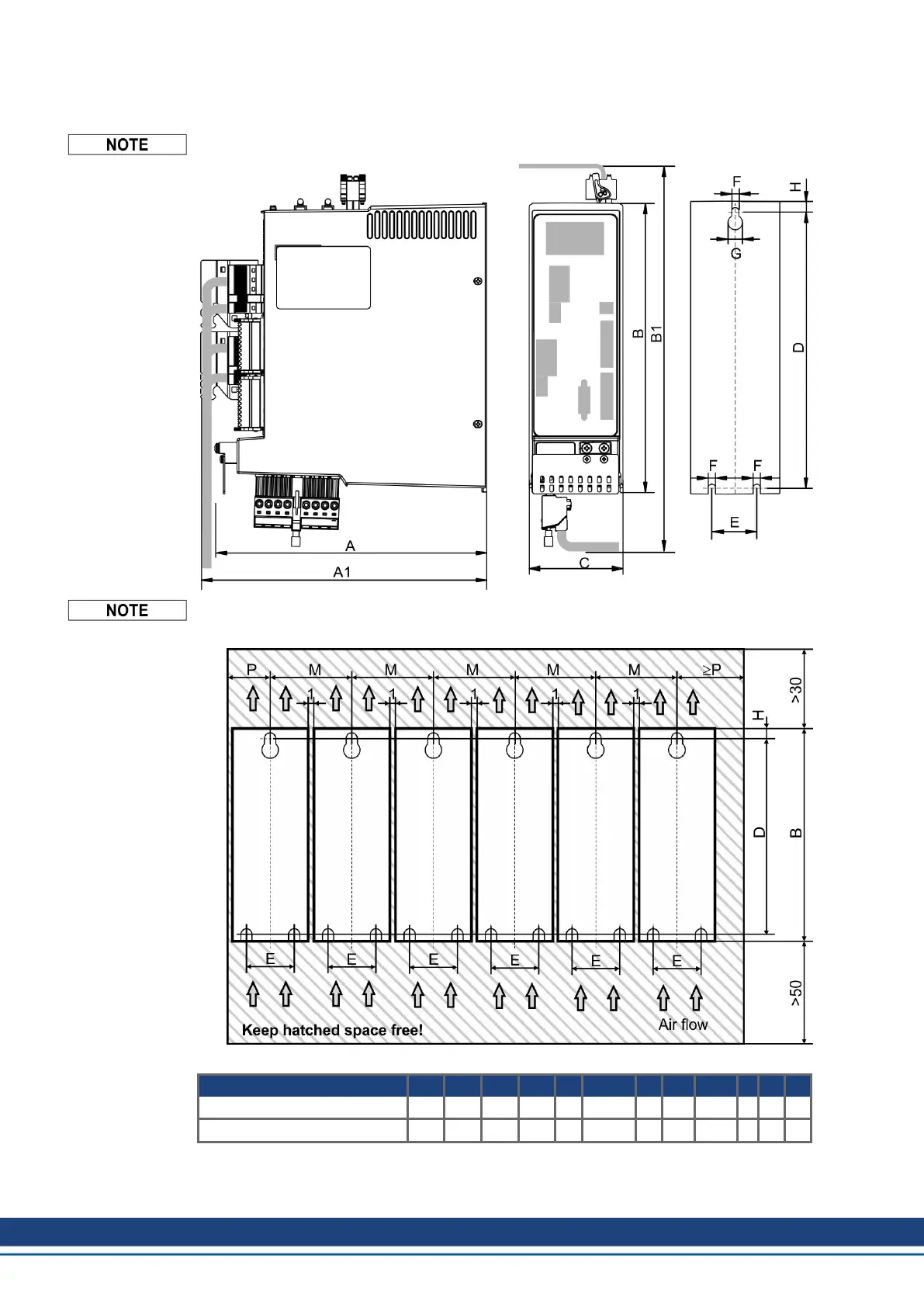

9.3 Dimensions
Mounting material: three M5 hexagon socket screws to ISO 4762, 4 mm T-handle Allen key
Outline width and height dimensions are measured on footprint level (mounting plate).
Dimensions on the front plate are slightly smaller. All dimensions in mm.
Dimensions in mm A A1 B B1 C D E F G H M P
AKD2G-Sxx-6V (3 to 12 A) 221 232 235 303 76 221,5 36 5,8 11,5 7 78 40
AKD2G-Sxx-7V (3 to 12 A) 221 232 272 340 75 259 36 5,8 11,5 6 77 39
60 Kollmorgen | kdn.kollmorgen.com | Beta, December 2018
