9.4 Connection Overview
Detailed connector pinout (➜ # 67), interface descriptions see Installation Manual.

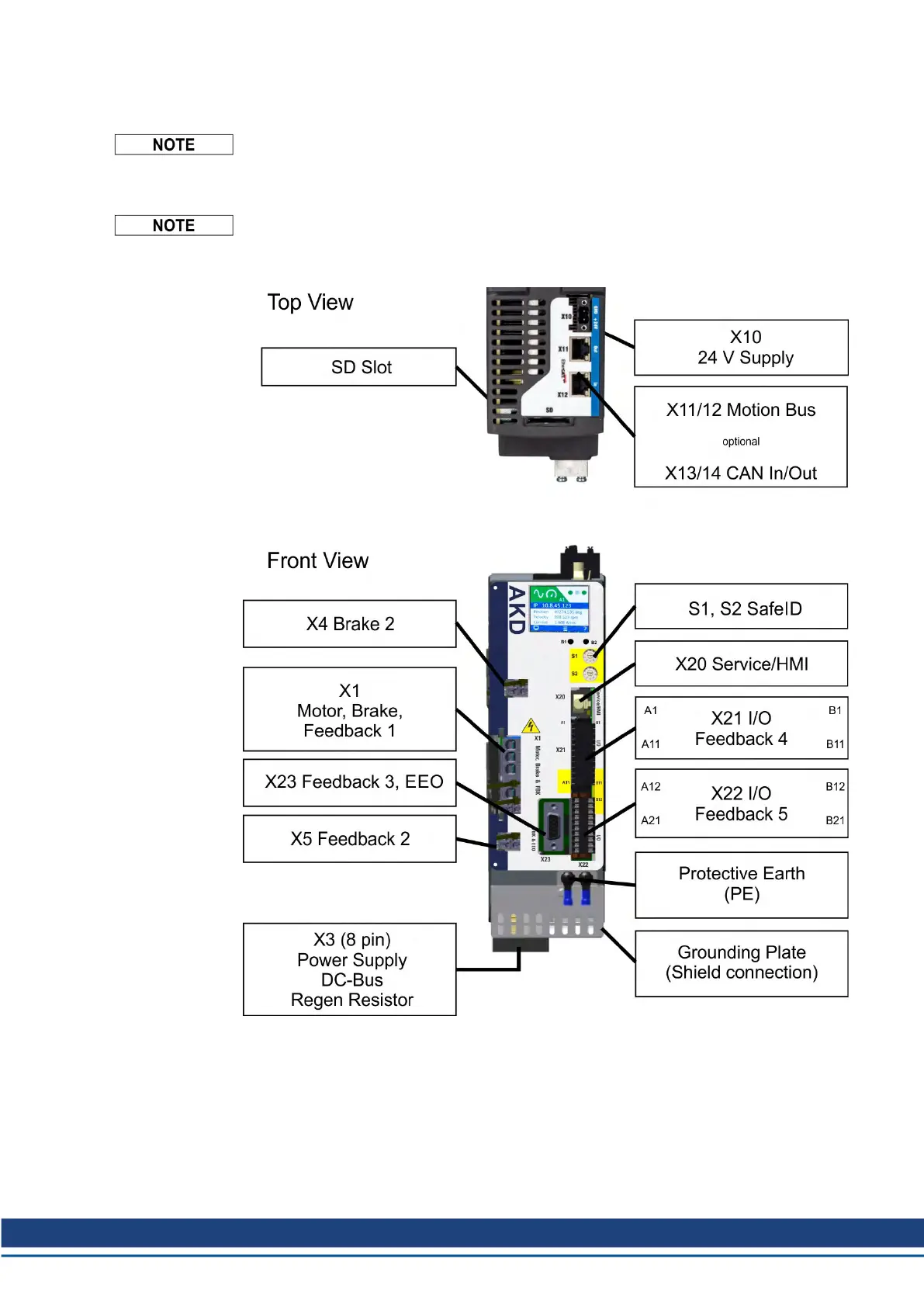

9.4.1 Connector Position AKD2G-Sxx-6VxxS
The graphics shows a single axis drive (supply voltage 110 V to 240 V) with all possible con-
nectors (X4, X5, S1, S2 with safety option 2 or 3 only).
AKD2G Product Safety Guide | 9 Appendix
Kollmorgen | kdn.kollmorgen.com | Beta, December 2018 61
