24
Screws
(M6x20L)
Cabinet unit
Connectors
(White)
Connectors
(Yellow)
Stage units
Unit connection pipe
Once remove the screws for
fixing the unit connection
pipe, which have been set
to each unit beforehand,
when connecting the unit
connection pipe.

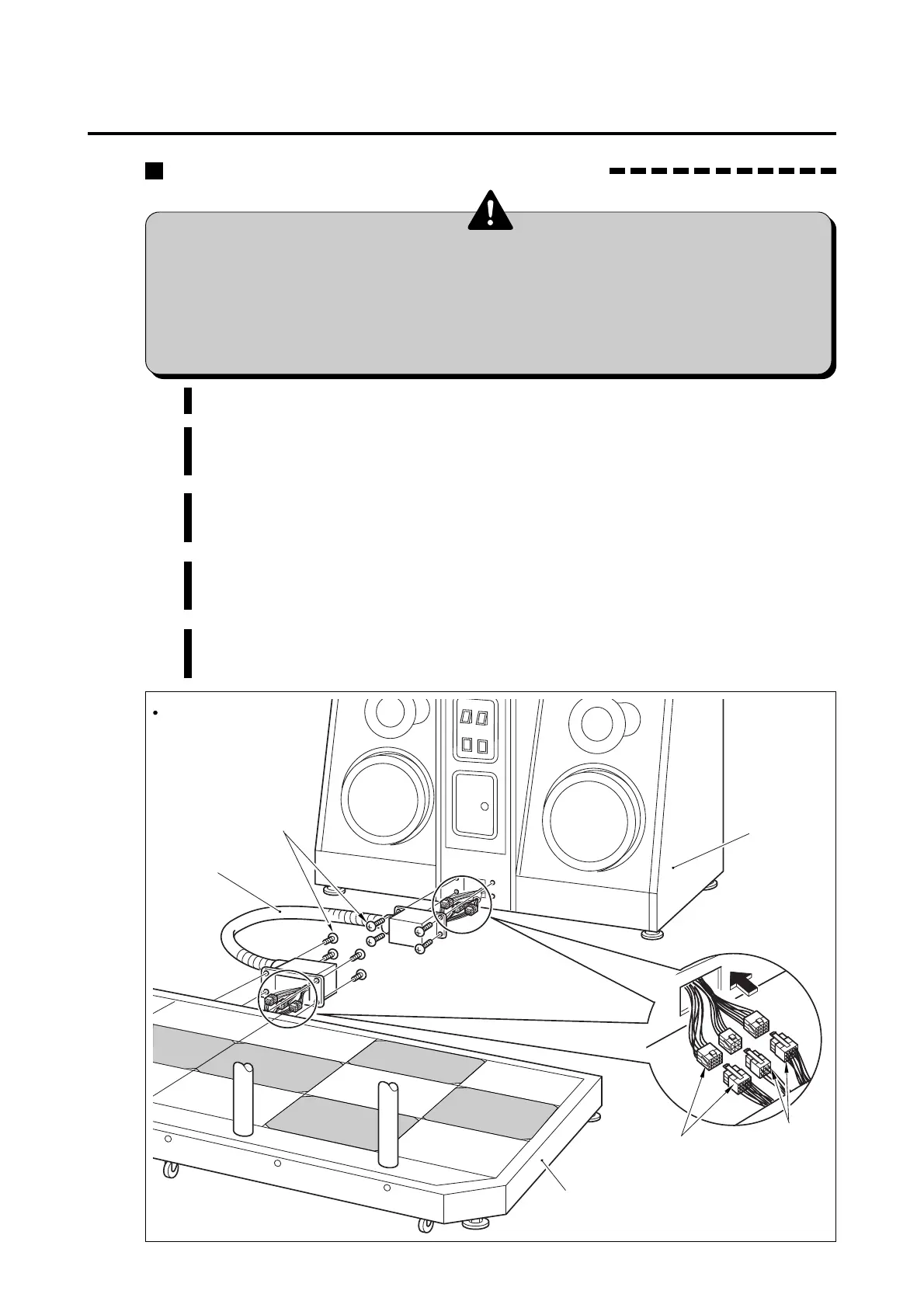

How to connect the stage units and cabinet units
•Do not hold the unit connection pipe for moving the units.
•Do not apply a strong force for moving the units after connection.
•Do not move the units across a step after connection.
•Pay full attention not to pinch the wires when connecting the units.
•Provide a clearance of more than 200 mm(8 in) and less than 400 mm(16 in)
between the stage units and the cabinet units.
1 Remove the screws fixing the unit connection pipe mounted to the stage units.
2 Connect the connectors extended from the stage units to the connectors of
unit connection pipe, paying attention not to confuse their colors.
3 Fix the unit connection pipe to the stage units with use of the screws which
have been removed in step 1 above.
4 Connect the connectors extended from the cabinet unit to the connectors of
unit connecting pipe.
5 Fix the unit connection pipe to the cabinet unit with the screws which have
been removed in step 1 above.
6 Installation and Assembling
To Next Page
