26
Cabinet unit
Hexagon nut
Hexagon nut
Lift the caster about 5 mm
(0.2 in) from the floor.
Lift the caster about 5 mm
(0.2 in) from the floor.
Stage units
Max. adjustable height:
70 mm (2.76 in)
Min. 65 mm (2.56 in)
Max. adjustable height:
70 mm (2.76 in)
Min. 65 mm (2.56 in)

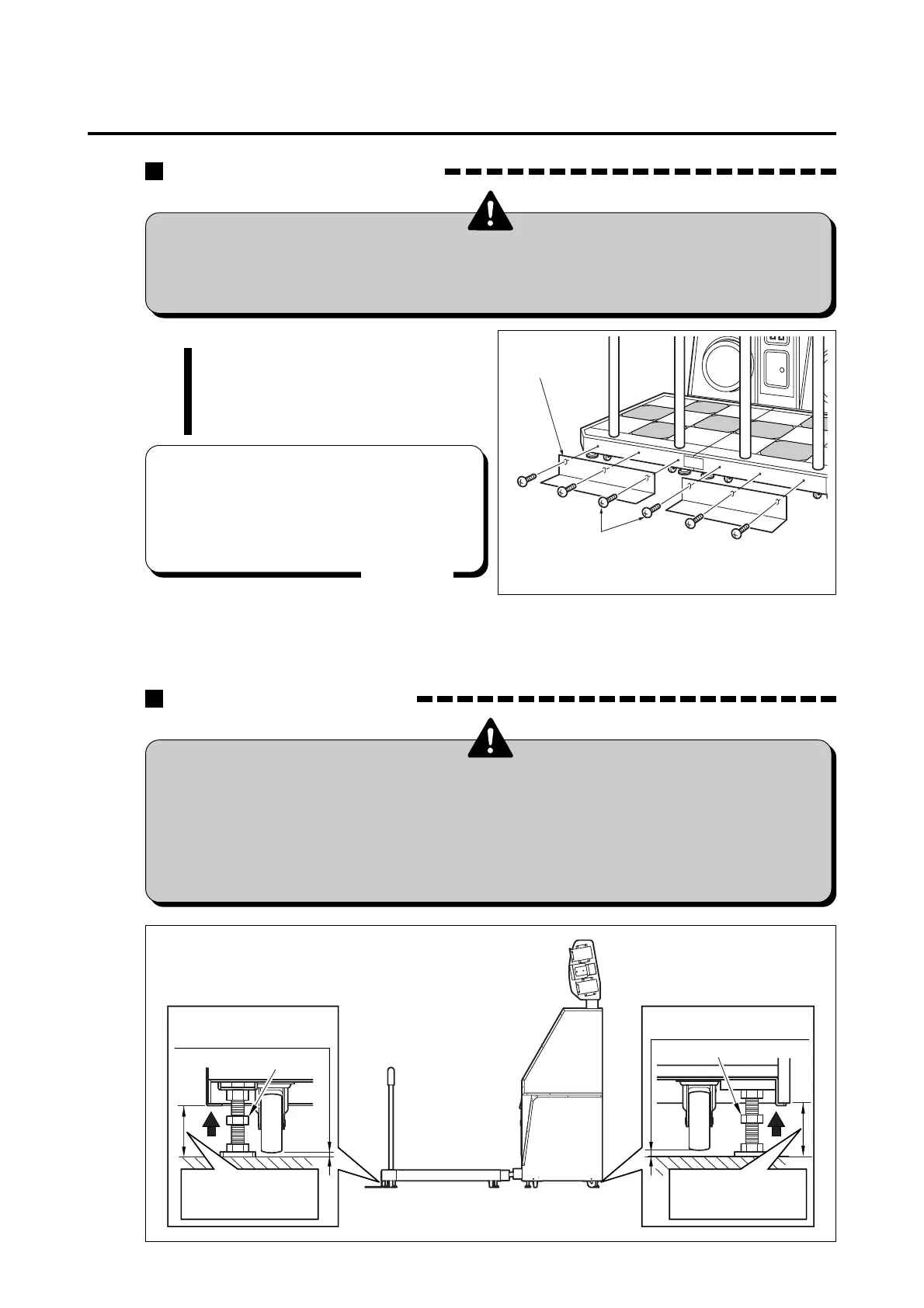

How to fasten the adjusters
•After the connection of the units, make all the adjusters contact the floor.
•Adjust the adjusters so that the casters do not touch the floor.
Take care not to exceed the maximum adjusting height of the adjuster.
•Make all the 12 adjusters come in contact with the floor, tighten them with
hexagon nuts after making sure that all the units are placed stably in a
horizontal position.
6-2 Fastening the adjusters
How to mount the stage plates
•Be sure to mount the stage plates which effectively prevent the stage unit
from lifting.
•Mount the stage plate after the fixation of adjusters of each unit.
·Tighten the screws with the bottom face of stage plate
being in contact with he floor.
Stage plate mounting screws
(M6 x 20L)
Stage plates
Mount the stage plates, which
have been removed in step 2 on
page 31, with the accompanying
screws.
MEMO
•Mount the stage plate after the
completion of the fixation described in
“6-2. Fastening the adjusters”.
•Be sure to remove the stage plates
when moving the units.
6 Installation and Assembling
To Next Page
