Konami Dance Dance Revolution - Mounting Billboards

29

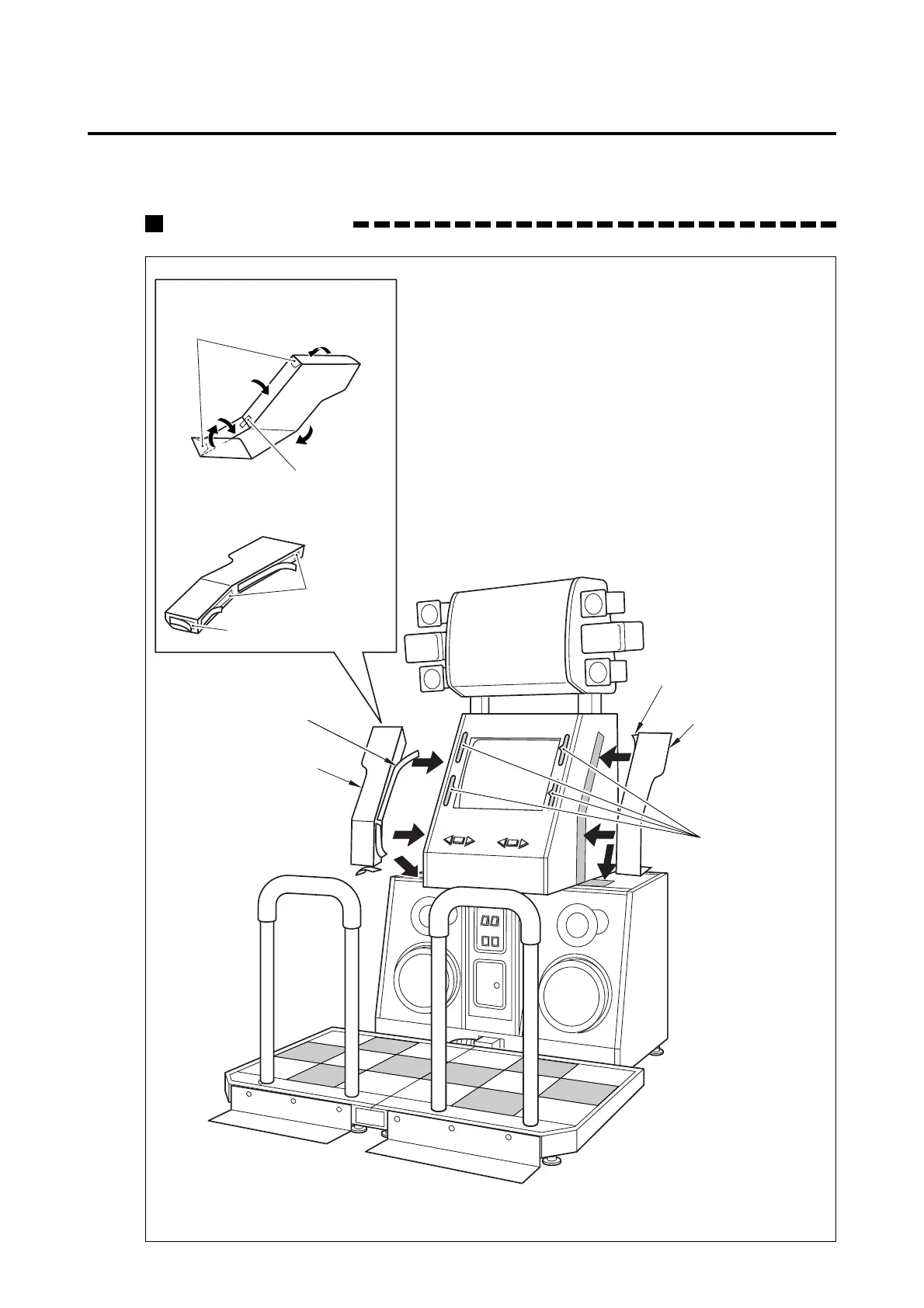

Right billboard
Installation seals (four)
Left billboard
Protection seals
(at three positions)
Protection seals
(at three positions)
Turn ON the machine and
apply the seals to suitable
positions on the game
screen.
Remove the protection seals
at three positions attached to
the cabinet and align the side
billboard with a braid provided
at the side of cabinet and fix it
to the side of monitor and on
the top of woofer box.
Mount the right billboard
in the same procedure
for the left one.
Set the billboard on the
top of woofer box to
check its height, and
then attach it.
1 Fold along all lines.
Fold the flaps upright and fix it on the
inside of flap.
Fold
Fold
Fold
Back
Put the flap ends together and fix them
with an adhesive tape(not included).
2 Remove three protection seals and
attach the billboard to the cabinet.
Attach these parts to
the side of monitor.
Attach this part on the
top of woofer box.
Fold
6-6 Mounting billboards
Mounting billboards
6 Installation and Assembling
