30
Screws(M6x20L)
Unit connection pipe

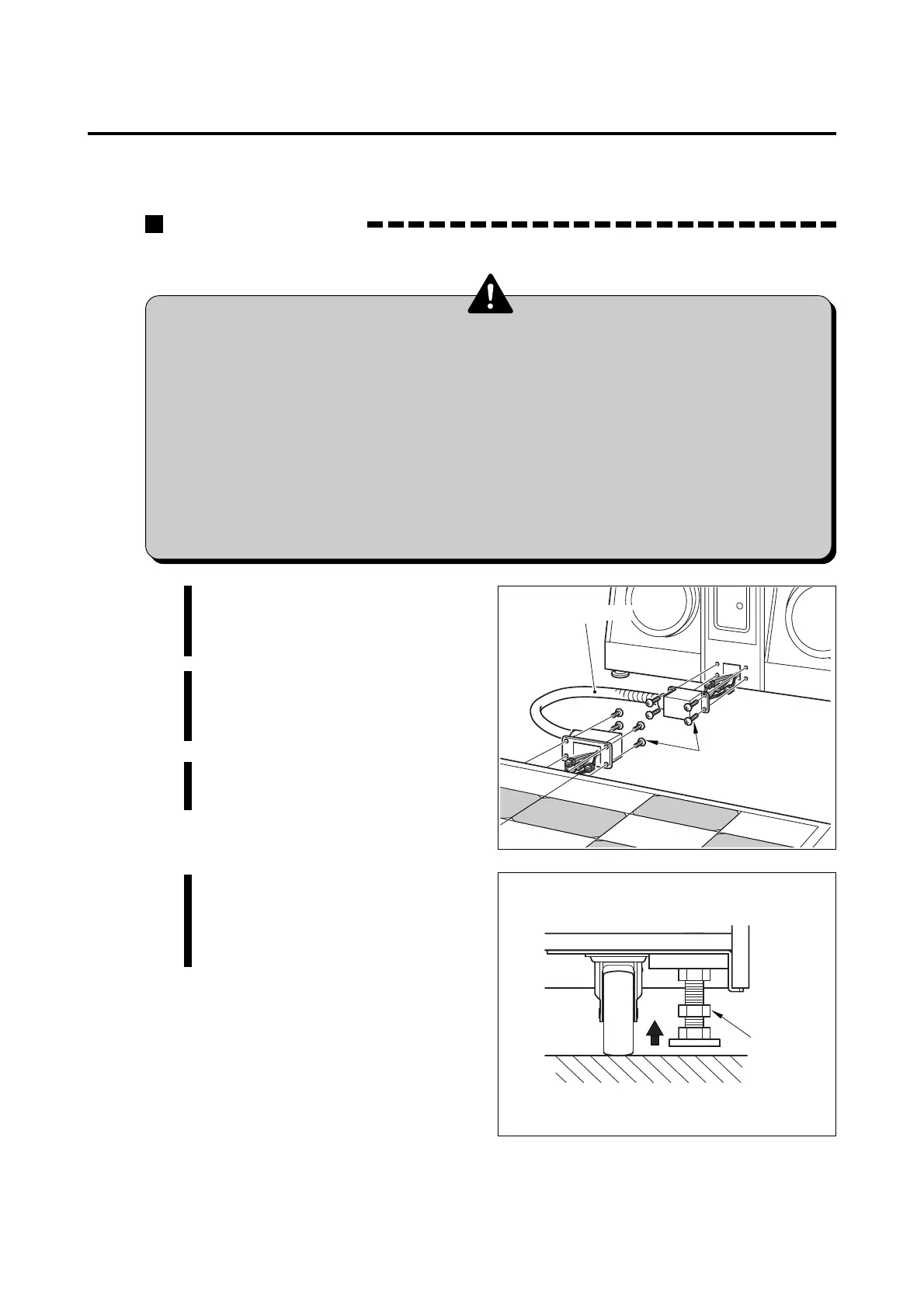

6-7 Splitting into and moving of units
How to split into units
•Before splitting the product, be sure to turn OFF the main power switch
and unplug the power code from the receptacle.
•When moving this product, be sure to split it into the stage units, cabinet
unit and unit connection pipe and remove connectors.
•If it is necessary to separate the title unit from the cabinet unit, split them
before loosening the adjusters.
•Fully lift up the 12 adjusters before moving the product. Use casters to
move it.
•When connecting the split units again, pay due attention not to pinch your
hand and wires.
1 Turn OFF the main power switch
and unplug the power cord from the
receptacle.
2 Split the stage units from the
cabinet units in the reverse of
connection. (See page 32.)
3 Remove the stage plates mounted
to the stage units. (See page 34.)
4 Loosen the 12 adjusters and move
the units on casters. It is necessary
to dismount the title unit, dismount
it before loosening the adjusters.
Hexagon nut
Lift up adjuster and lower casters to the floor.
This product can be split into individual units.
6 Installation and Assembling
