28
External output terminals
RGB output terminal
Audio output terminal
The RGB output terminal adopted in this
product is of 3.3Vp-p. When video signal is
output to an ordinary monitor or projector, it is
impossible to obtain the video image without
brightness controlling.
External output terminals

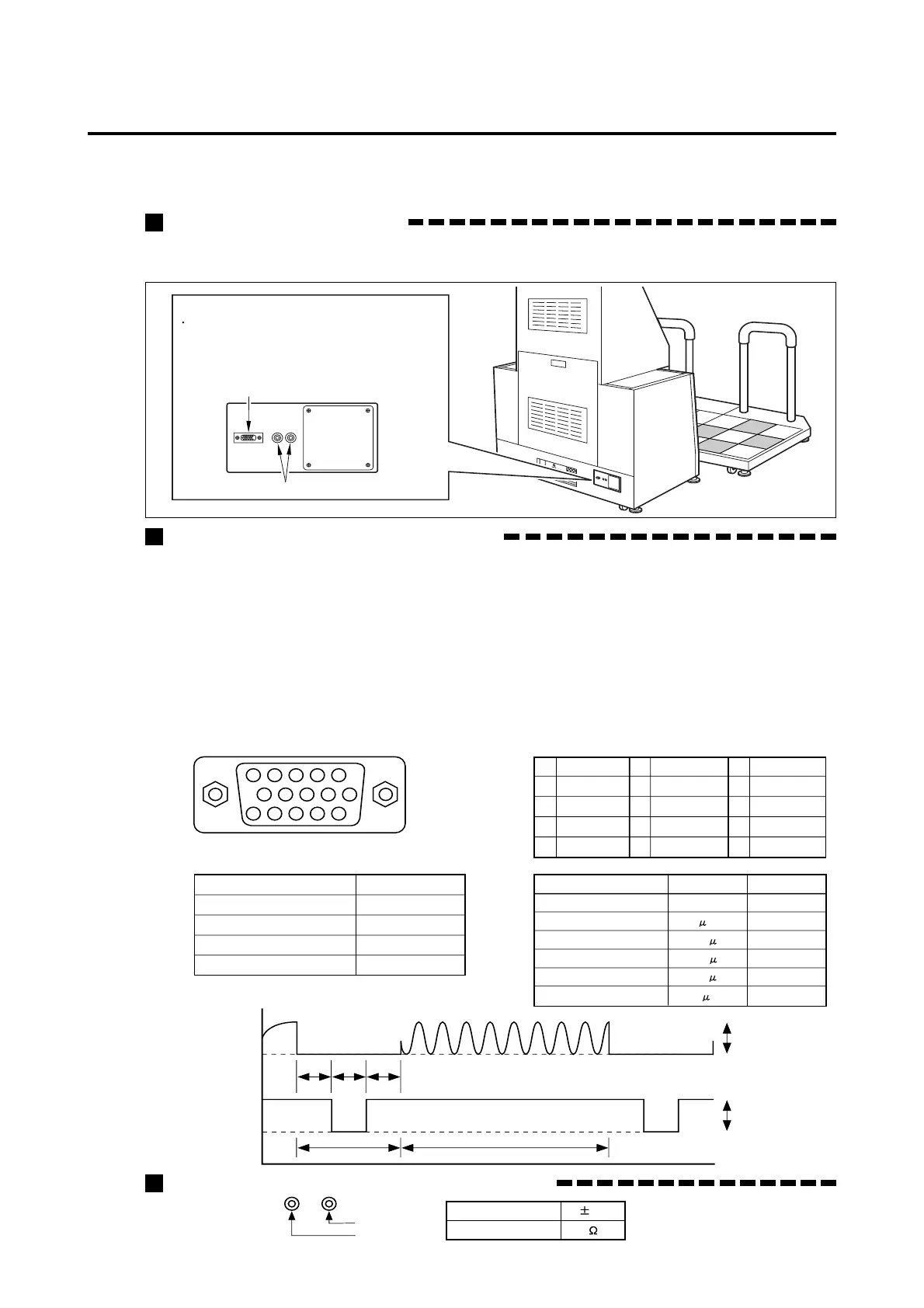

6-5 External output terminals
For video output and audio output from this product, the external output terminals
are provided at the rear side of cabinet.
Sync. frequency
B = Display section
C =
Sync. signal amplitude
D = Front porch
Horizontal sync.
Vertical sync.
15.8kHz
16 s
47.8 s
3.81 s
8.5 s
3.69 s
59.8Hz
38 lines
224 lines
2 lines
24 lines
12 lines
A =
Non-display section
E = Back porch
Video signal timing
15-pin Mini Dsub
(conforming to MIL-C-24308 Standard) (Female)
Shape
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RED
GREEN
BLUE C-SYNC
GND
GND
GND
GND
Arrangement
Video signal output specification
Horizontal sync.frequency
RGB video signal level
RGB video signal terminal
Sync. signal level
Sync. signal system
15.8kHz
3.3Vp-p
High impedance
TTL level
Composite
Sync. signal
Red(RIGHT)
White
LEFT
Audio output level 0 6dB
Output impedance 2k
Video signal
3.3Vp-p
TTL level
AB
CDE
Video signal timing chart
5 4 3 2 1
15 14 13 12 11
10 9 8 7 6
Specification of RGB output terminal
When outputting the video image to an external projector etc. through this RGB
output terminal, be sure to check the external equipment to be connected to this
terminal to see if its specification is compatible with the specification of the terminal.
The RGB output terminal outputs the RGB signal of 3.3Vp-p video signal amplitude
for a video game monitor CRT of composite SYNC specification. Accordingly, if
this signal is input by a monitor CRT for personal computer etc. of 0.7Vp-p amplitude,
horizontal/vertical separation SYNC input specification, such monitor CRT will not
work normally or cause a trouble with the equipment.
Please refer to the tables below as for the specifications of the RGB terminal.
The specifications of audio output terminal
6 Installation and Assembling
