7-1 Replacing the coin selector
How to replace the coin selector
•Before replacing the coin selector, be sure to turn OFF the main power
switch and unplug the power cord from the receptacle.
•When replacing parts, be sure to use parts of the correct specifications.
Never use parts other than the specified ones.
•Strictly refrain from disassembly and repair of parts which are not indicated
in this manual, as well as settings and remodelling.
1 Be sure to turn OFF the main power
switch and unplug the power cord
from the receptacle.

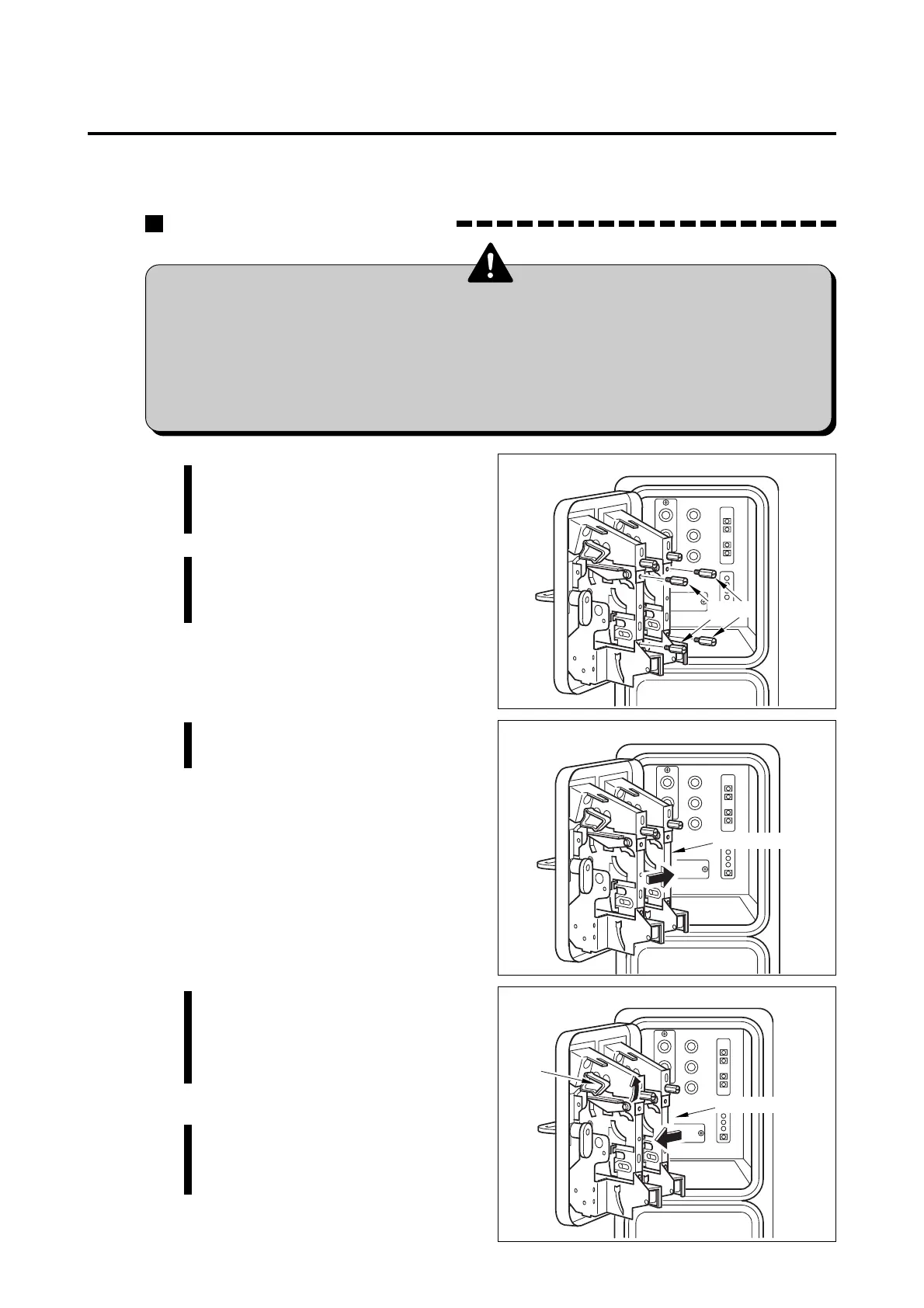

2 Open the maintenance door and
remove two bolts as shown in figure
which fix the coin selector.
7 Maintenance
3 Release the levers that fix the coin
selector. See at right.
4
To fit the coin selector again
While holding up the white lever,
mount a new coin selector by
sliding it toward the left.
5 After fixing the bolts which have
been remove in step 2, close the
maintenance door.
Bolts
Coin selector
White
lever
Coin selector
