23
Stage unit(R)
Joint metals
Connectors
(White)
Screws(M8x20L)
Joint metals
Stage unit(L)
Screws
Plates
Bolts
Spring
washers
Plain
washers
Safety ber
Screws(M8x20L)
(Note)
Push the connectors and wires into one of the
stage units and use care not allow them to be
pinched between the stage units.
When connecting the stage
units, remove once the joint
metals mounted to one of
the stage units beforehand.
·
8
8
7
6
Stage plates
After the stage plate
is removed, set the
screws to original
positions.
6 Installation and assembling

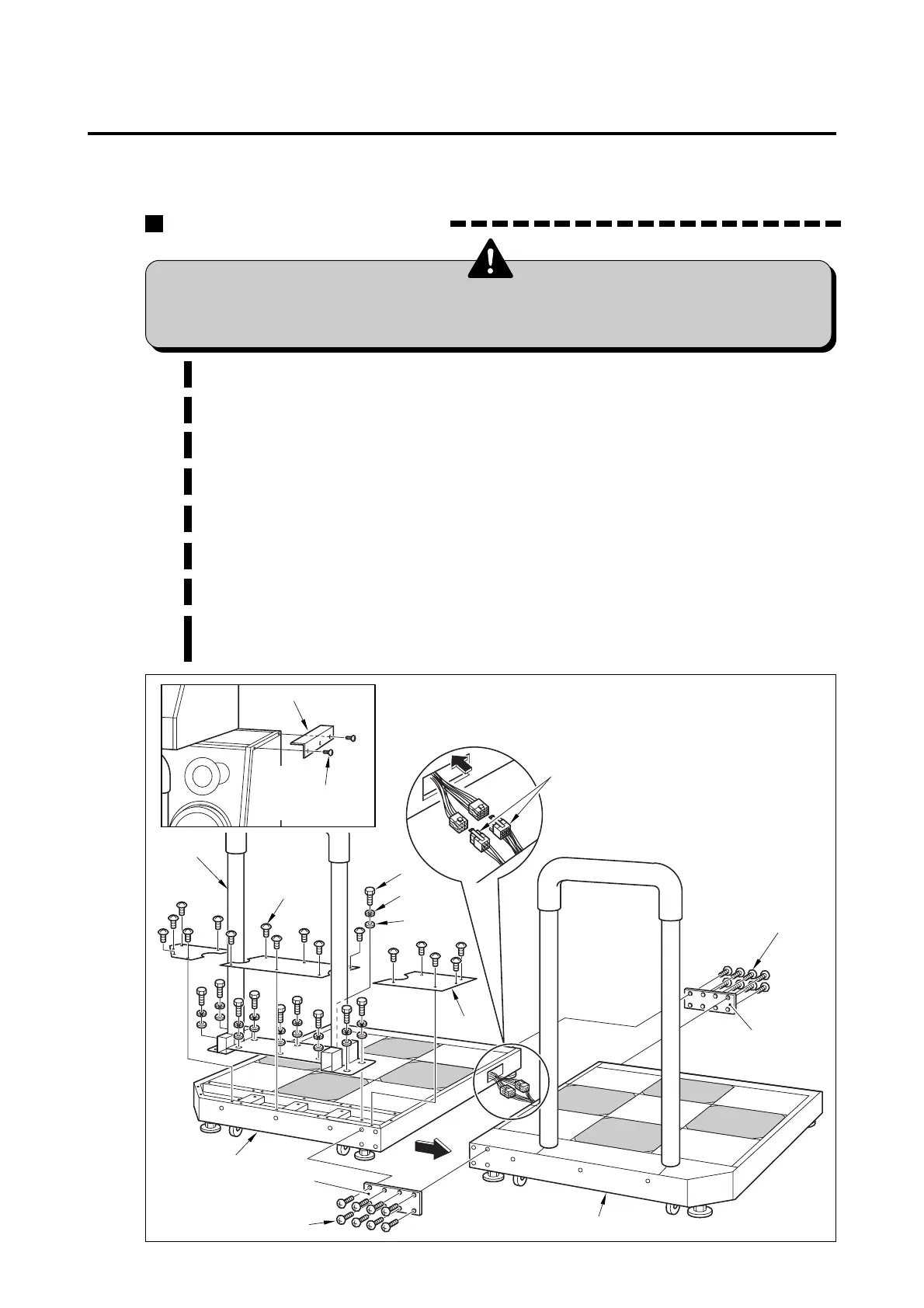

How to connect the stage units
•Do not apply a strong force for moving the stage units after connection.
•Never move the stage units across a step after connection.
•Pay full attention not to pinch wires in the connection of the stage units.
6-1 Connection of units
1 Remove plates shown in the figure from the stage units.
2 Remove safety bar fixing bolts from the stage units.
3 Use the bolts removed to fix the stage units.
4 Reinstall the plates removed in step 1 above.
5 Remove the joint metals mounted to the stage units.
6 Remove the stage plates mounted to the cabinet unit.
7 Connect the connectors which link the right and left stage units.
8 Connect the right and left stage units at two points with the joint metals removed
in step 5 above.
To Next Page
