Kone KDL16 - Page 18

AS-11.65.037
18 (40) (A) 2009-10-16
KDL16
Maintenance Instruction
© 2009 KONE Corporation
All rights reserved.
Disclosure prohibited

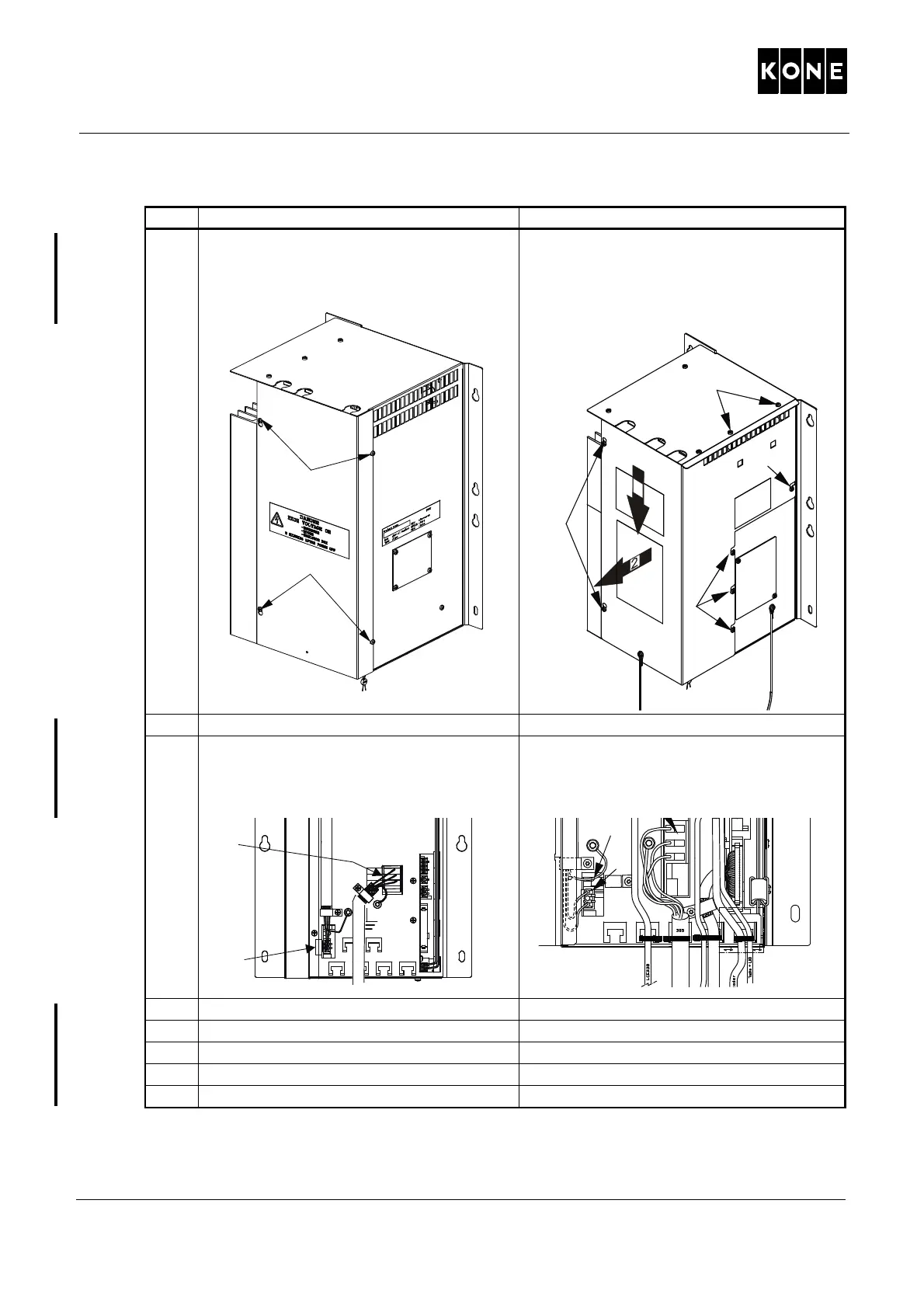

11 Open the V3F16L drive covers.
1.X:
Loosen fixing screws (B) (4 pcs.).
Remove the cover of the drive module.
2.X:
Remove fixing screws (A) (2 pcs.).
Loosen fixing screws (B) (6 pcs.).
Remove the cover of the drive module.
12 Switch ON the main switch (220).
13 Check that the DANGER led (D1) is lit. WARNING! If the DANGER led (D1)
does not illuminate, continue with
special caution!
1.X: (D1 led is located above connector B). 2.X:
14 Switch OFF the main switch (220).
15 Wait for 5 minutes.
16 Check that the DANGER led (D1) is NOT lit.
17 Lock and tag the main switch (220).
18 Close the MAP.
Step Action Illustration/Note
1063716.wmf
B
B
1062797.wmf
B
B
A
B
1
P10000230.wmf
A
B
1064018.wmf
B
D1
