AS-11.65.037
31 (40) (A) 2009-10-16
KDL16
Maintenance Instruction
© 2009 KONE Corporation
All rights reserved.
Disclosure prohibited
APPENDIX A.UPDATE OF LCE SOFTWARE
This section describes methods for updating LCE software to comply with KDL16L drive module.
A.1 Preparations
The LCE software must be updated, if the LCE version is older than 5.1.0 (18.01.2002).
Stand-by mode and brake test features require LCE version 6.7.18 or newer.

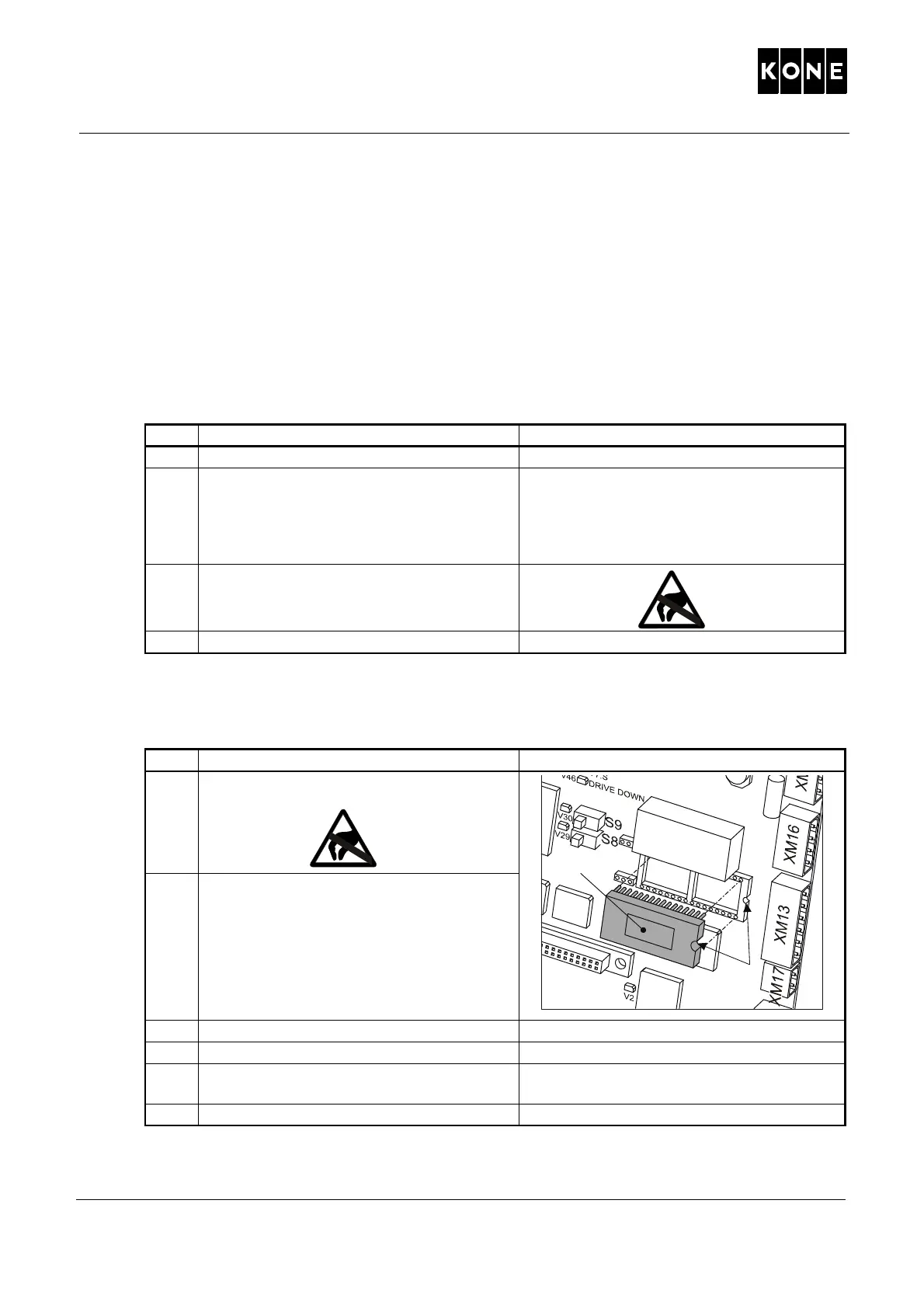

A.2 Updating LCE software (EPROM)
Step Action Illustration/Note
1 Open the MAP.
2 Use LCE User Interface on LOPCB board to
scroll and register into a paper all the set
parameters of the elevator.
This procedure is necessary, when updating
software (parameters are reset). The
memory of this board contains the
information of the elevator. The spare board
is normally set for the factory test machine.
3 Follow the instruction for working with
electrical discharge sensitive devices (ESD
sensitive devices)
4 On the car roof open the cover of the SEP.
Step Action Illustration/Note
1 Remove the old EPROM (A) from the board.
2 Attach the new EPROM (A) to the board.
Be careful!
• Avoid twisting the connection pins of
the EPROM.
• Place the notches (B) in EPROM and
socket against each other.
3 Ensure that the elevator is on the RDF.
4 Switch ON the power.
5 Check the parameters and modify the
values according to the old settings.
6 Return the elevator to normal.
