11 COMMISSIONING FOR RATED SPEED FOR MRL ELEVATORS
11.1 Selecting LWD setup type
11.2 Elevator shaft setup
NOTE! Relevelling is not possible if LWD setup is not done.

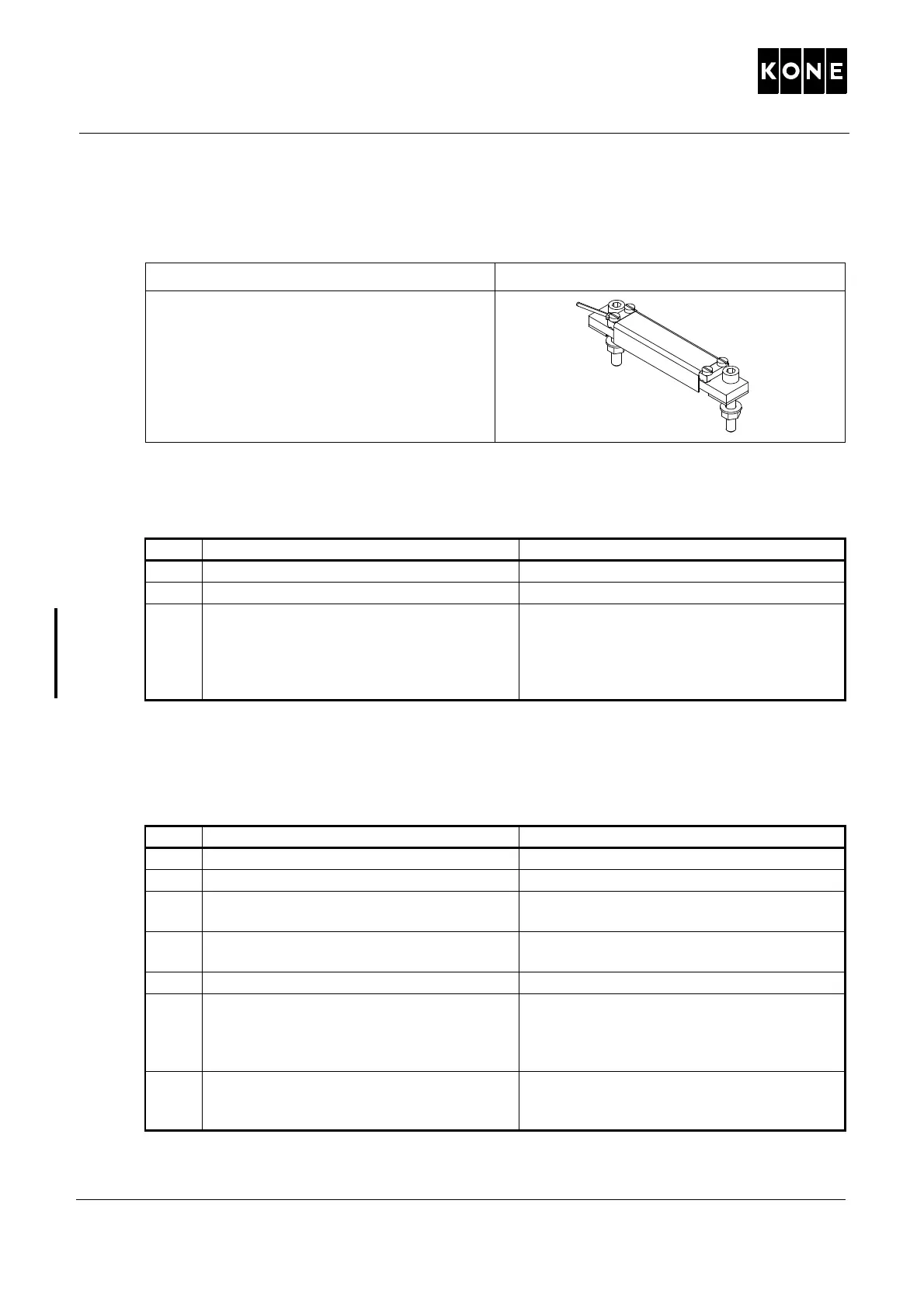

Type of load weighing device Illustration/Note
LWM:
Step Action Illustration/Note
1 Set LWD setup (6_74) parameter to -2.
2 Set Save (6_99) parameter to 1. Value is returned automatically to 0.
3 Leave Menu 6.
Verify LWD value from LWD adjustment
parameter (5_1).
With empty car the parameter value should
be 0.
If the load weighing device is not working
correctly, make adjustment according to
APPENDIX B.
Step Action Illustration/Note
1 Ensure that the RDF is switched ON.
2 Drive the car just below the bottom floor.
3 Check that leds 61:U, 77:N and 77:S are lit. Led 61:N must not be lit. LCE leds 30 and/
or B30 must be lit.
4 Activate the setup mode from the controller.
Set Shaft setup (5_2) parameter to 1.
5 Switch elevator to normal mode. Elevator starts the setup drive upwards.
6 Watch floor numbers on LOP-CB. Elevator is ready for the normal drive when
the car stops at the topmost floor.
The car relevels and the LOP-CB shows the
number of the topmost floor.
7 If the drive code 118 and related subcode is
displayed after setup, refer to KDL16
diagnostic codes, 972485D01.
