8.3 Getting the car off the blocking device (MRL elevators)

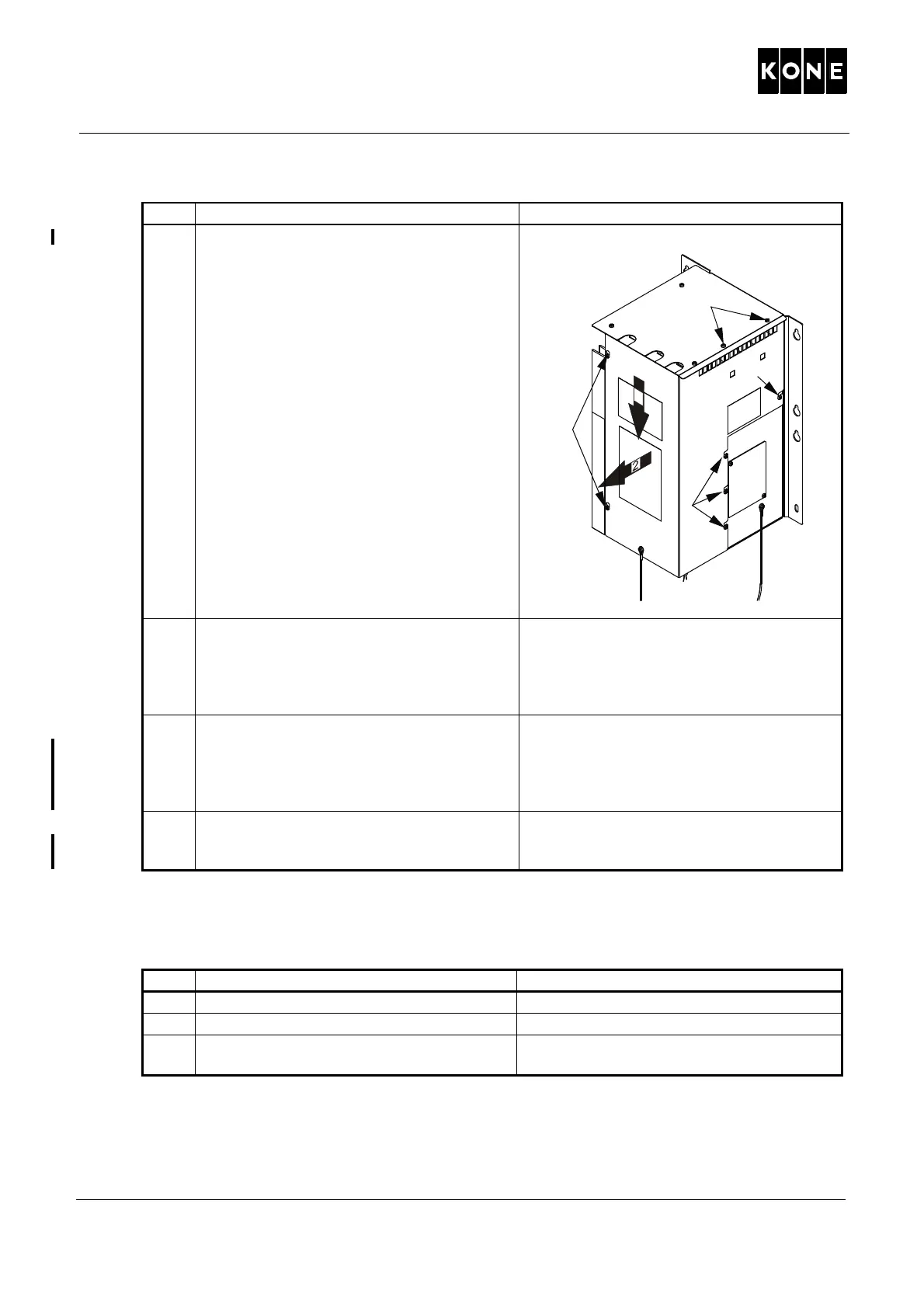

5 Loosen fixing screws (5 pcs.).
Slide the cover of the drive module
downwards and remove it.
6 Connect all the cables, which do not require
adapters.
Connect the earthings.
Secure the cables by using cable ties.
Check the cable markings. See section 1.8.
Especially check connections of the motor
cable terminals and power supply terminals.
Do not place wires too deep into the
connector.
7 Connect rest of the wires to the drive module
by using adapters.
Connect the earthings.
Secure the cables by using cable ties.
See the adapter connections in section 1.5.
The battery back-up cable is connected to
the drive module in this phase. The cable
will be connected to SEP later on. Secure
the cable until it is connected.
8 Install the cover to the drive module.
Tighten fixing screws (5 pcs.).
Be careful not to damage the cables.
Reconnect the emergency power supplies (if
applicable).
Step Action Illustration/Note
1 Remove all the tools from the car roof.
2 Disengage the blocking device.
3 Leave the car roof.
Close the landing door.
Step Action Illustration/Note
