Kone KDL16 - Commissioning for Rated Speed for Mr Elevators; Selecting LWD Setup Type

AS-11.65.037
29 (40) (A) 2009-10-16
KDL16
Maintenance Instruction
© 2009 KONE Corporation
All rights reserved.
Disclosure prohibited
12 COMMISSIONING FOR RATED SPEED FOR MR ELEVATORS
Select the correct procedure (sections) for adjusting the load weighing device according to the
load weighing device type.

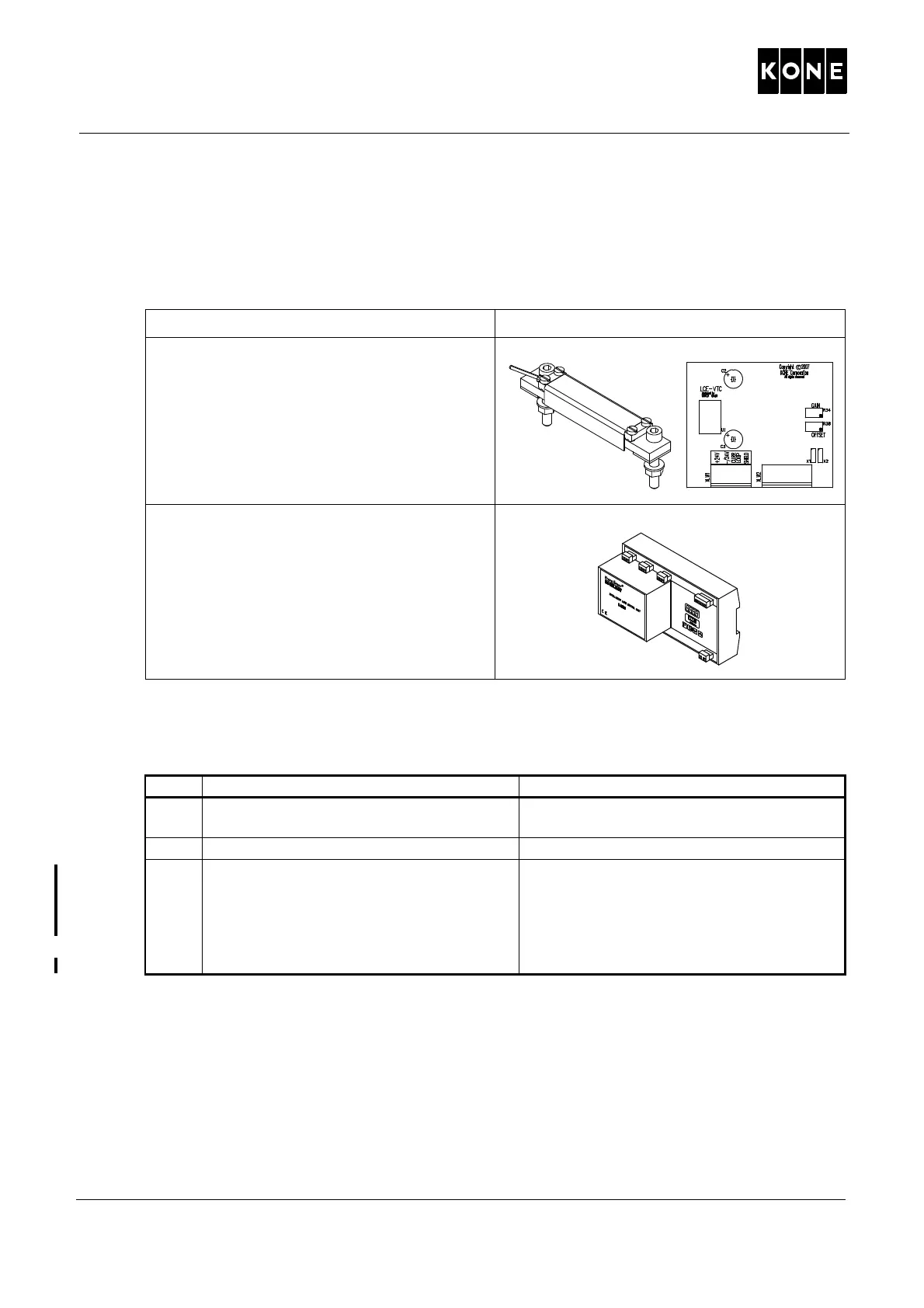

12.1 Selecting LWD setup type
Type of load weighing device Illustration/Note
LWM + LCEVTC:
WR (Micelect):
Step Action Illustration/Note
1 Set LWD setup (6_74) parameter to -2
(fixed scaling).
This must be done before programming load
weighing device.
2 Set Save (6_99) parameter to 1.
3 Leave Menu 6.
Verify LWD value from LWD adjustment
parameter (5_1).
With empty car the parameter value should
be 0.
If the load weighing device is not working
correctly, make adjustment according to
APPENDIX C. (LWM + LCEVTC) or
APPENDIX D. (WR, Micelect).
