Konica Minolta bizhub 4000P Service Manual

bizhub 4700P/bizhub 4000P Service Manual
- 177 -
Warning—Potential Damage: Avoid pressing against the cable when opening the locking mechanism.
This can also damage the cable.
These are the types of ZIF connectors used in this printer:
 Horizontal top contact connector
 Horizontal bottom contact connector
 Vertical mount contact connector
 Horizontal sliding connector
Horizontal top contact connector
This FRU contains a horizontal top contact cable connector. Read the instructions before proceeding.
The horizontal top contact connector uses a back flip locking actuator to lock the ribbon cable into the
Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift or close the two
tabs located on each end of the actuator. The two tabs should be moved simultaneously. Do not close
the actuator from the center of the actuator.
Removing a cable from the horizontal top contact connector

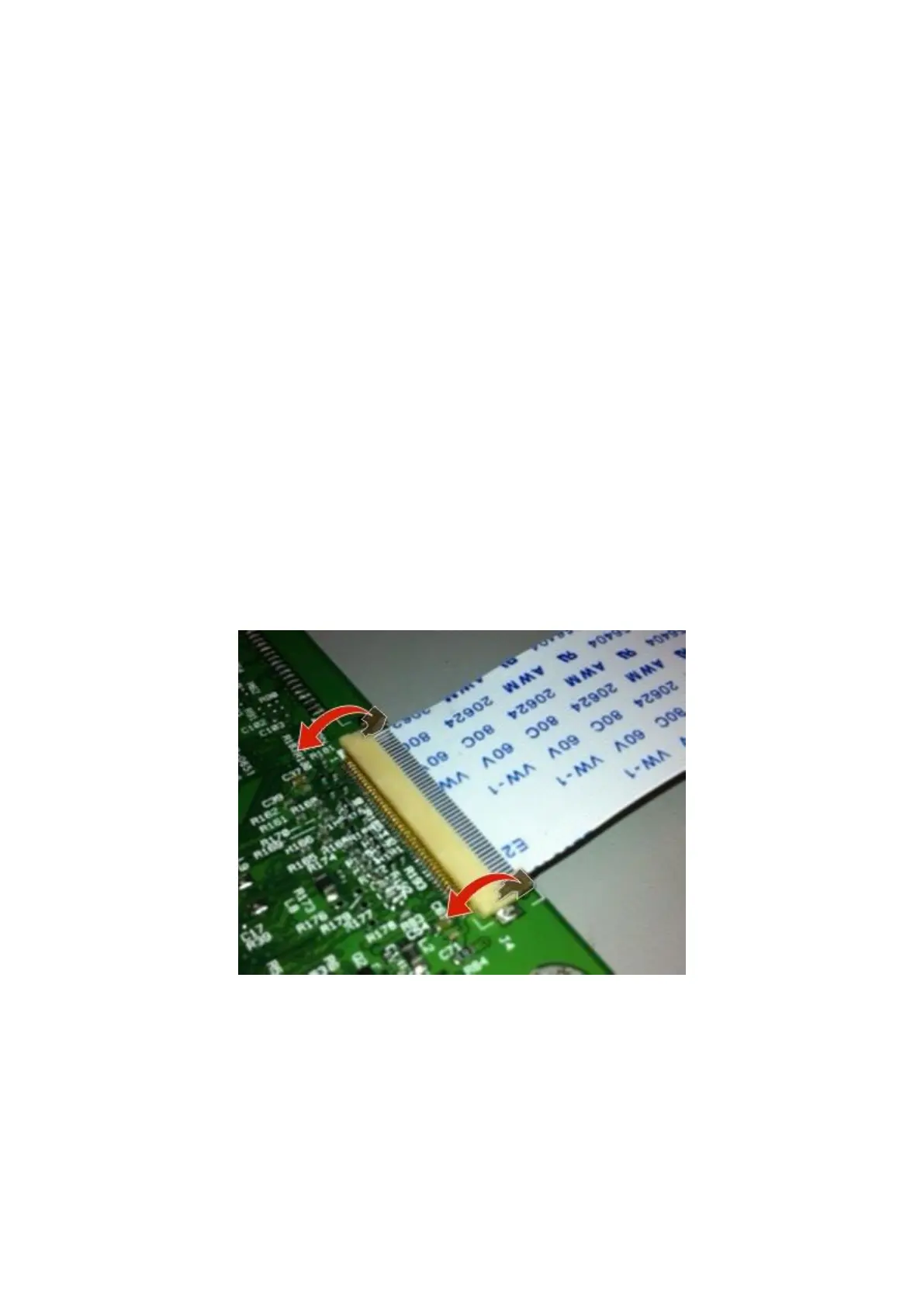

1. Place a finger at each end of the locking actuator, and then gently lift the actuator to the unlocked
position.
2. Slide the cable out of the connector.

Konica Minolta bizhub 4000P Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 100, 000 pages
Standard Output Capacity	150 sheets
Memory	256 MB
Supported Operating Systems	Windows, Mac OS, Linux
Duplex Printing	Automatic
Connectivity	USB 2.0, Ethernet
PDL	PCL 6, PostScript 3, XPS
Processor Speed	1.2 GHz
