Names and Functions of Parts

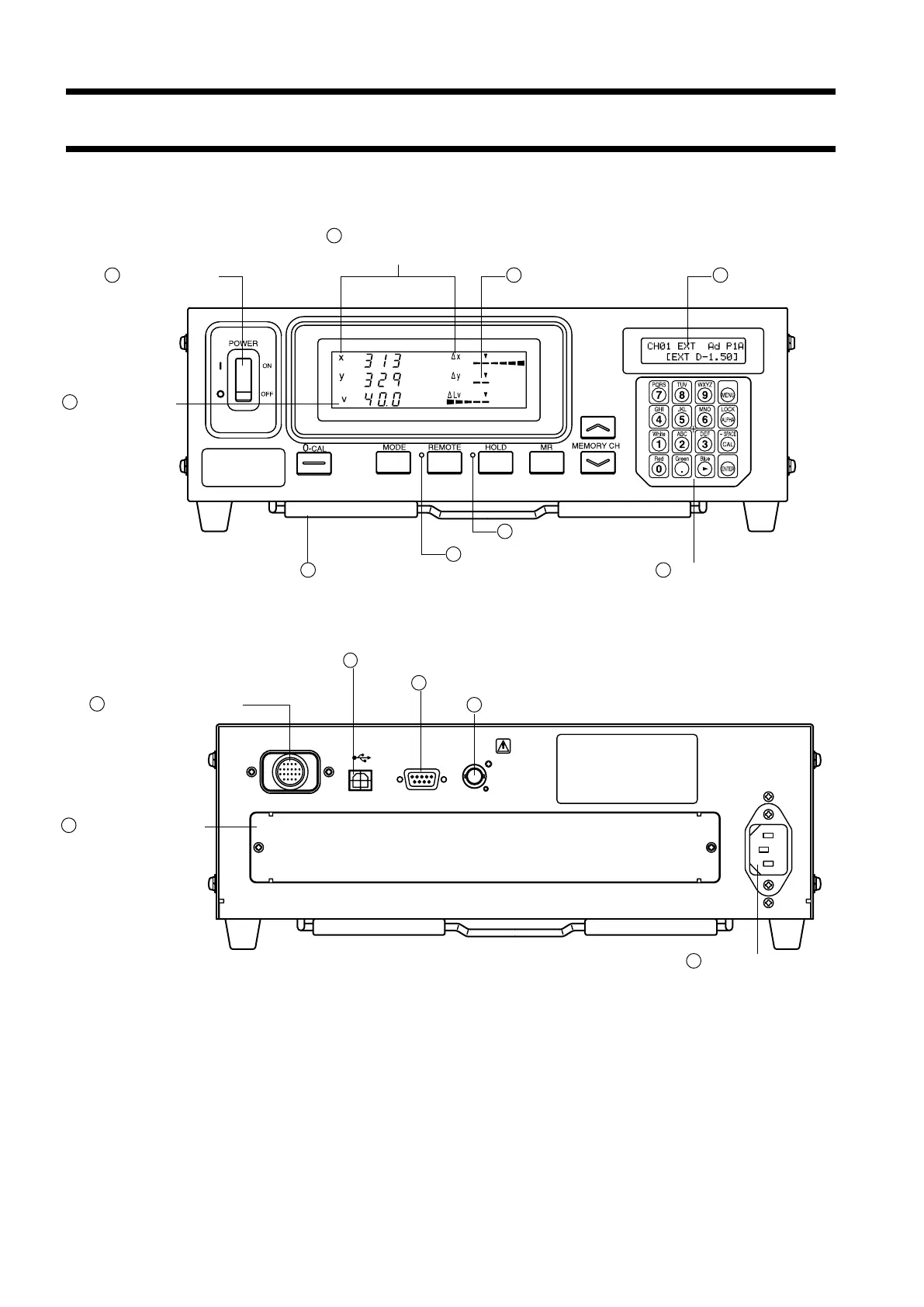

Main Body
<Front>
13 Vertical synchronizing signal input terminal
10 Probe connector [P1]
15 4-Probe Expansion
Board slot
11 USB connector
12 RS-232C connector
14 AC power connector
<Rear>
2 Digital display
1 POWER switch
4 Measurement mode
indications
9 Tilt stand
6 HOLD LED
7 REMOTE LED
8 Key panel
5 LCD display3 Analog display
