Konica Minolta CA-310 - About Measuring Probe; Setting a Measuring Probe; Setting the Measuring Distance

12
Measuring is done with the probe in close contact with the surface of display in the measuring part of this equip-
ment. There are 2 m(6.6ft.) and 5 m(16.4ft) long cords. There are 4 types of Measuring Probes.
Probe model Cord length Product name Probe model Cord length Product name
LED Universal Measuring ø27 Probe 2m CA-PU32 LED Flicker Measuring ø27 Probe 2m CA-P32
LED Universal Measuring ø27 Probe 5m CA-PU35 LED Flicker Measuring ø27 Probe 5m CA-P35
LED Universal Measuring ø10 Probe 2m CA-PSU32 LED Flicker Measuring ø10 Probe 2m CA-PS32
LED Universal Measuring ø10 Probe 5m CA-PSU35 LED Flicker Measuring ø10 Probe 5m CA-PS35
∗
Either of the accessories described above is included.
A
Receptor ....................................................• Face this receptor toward the display’s screen surface to perform
measurement.
B
Pointing ring .............................................• For zero calibration, set this ring to the “0–CAL” position to block
entry of light into the probe.
For measurement : Set the ring to the “MEAS” position to perform
measurement.
C
Ring stopper ..............................................• Stops the ring at two positions.
D
Screw hole.................................................• Used to secure the probe to a jig, etc.
E
Plug ...........................................................• Connect this plug to the probe connector on the main unit or that
on the optional 4-Probe Expansion board (CA-B15).
F
Hood..........................................................• Used to prevent entry of ambient light and help you place the probe
at the appropriate distance (30 mm) from the display and perpen-
dicular to it.
G
Lens cap ....................................................• Used to protect the receptor.

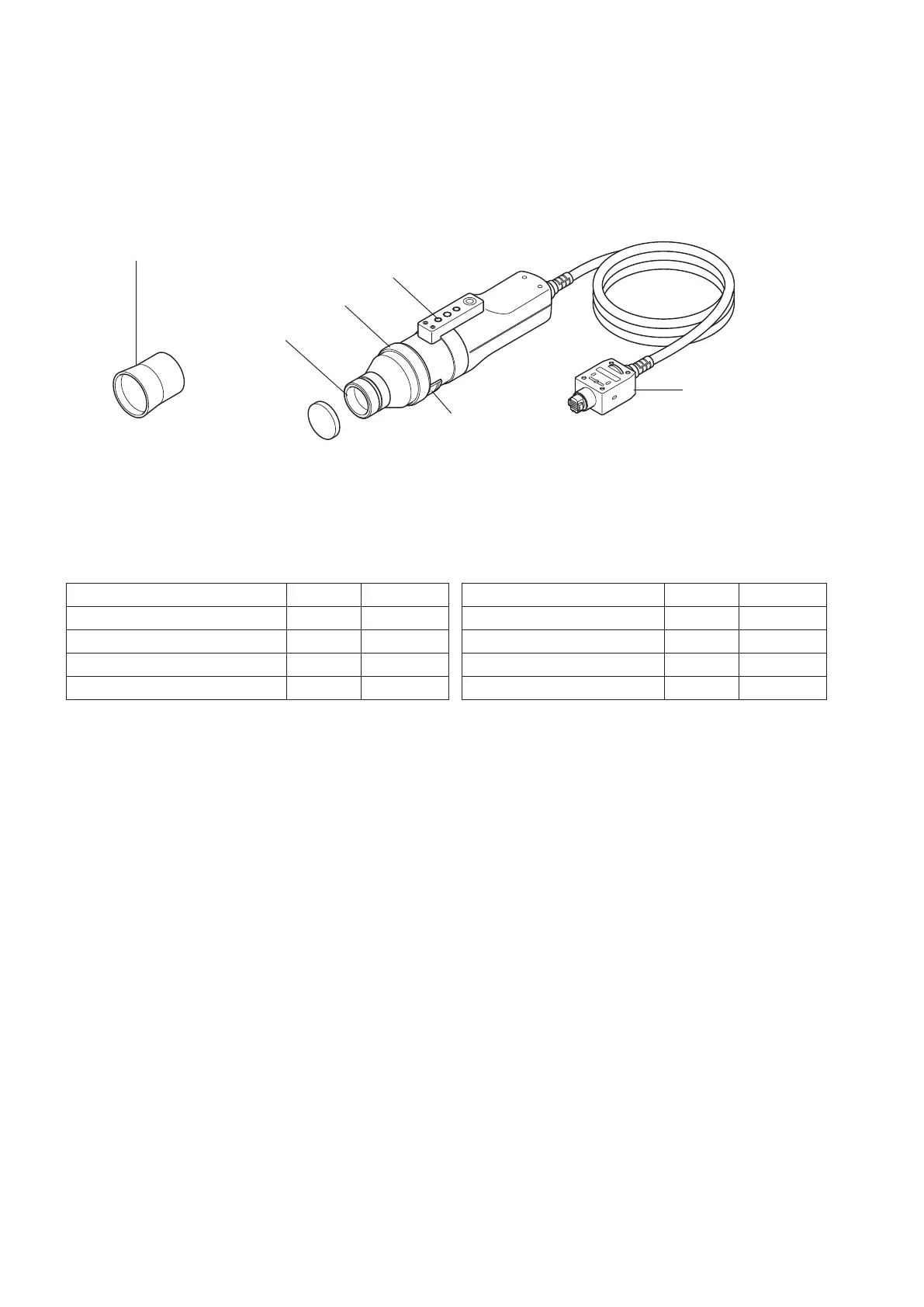

LED Universal Measuring ø27 Probe CA-PU32(2m) /CA-PU35(5m)
LED Universal Measuring ø10 Probe CA-PSU32(2m) /CA-PSU35(5m)
LED Flicker Measuring ø27 Probe CA-P32(2m) /CA-P35(5m)
LED Flicker Measuring ø10 Probe CA-PS32(2m) /CA-PS35(5m)
G
Standard Lens cap for CA-210/310 CA-H11/
Small Lens cap for CA-210/310 CA-HS11
A
Receptor
B
Pointing ring
C
Ring stopper
D
Screw hole
F
Standard Hood for CA-210/310 CA-H10/
Small Hood for CA-210/310 CA-HS10
E
Plug
