Replacing Consumables150

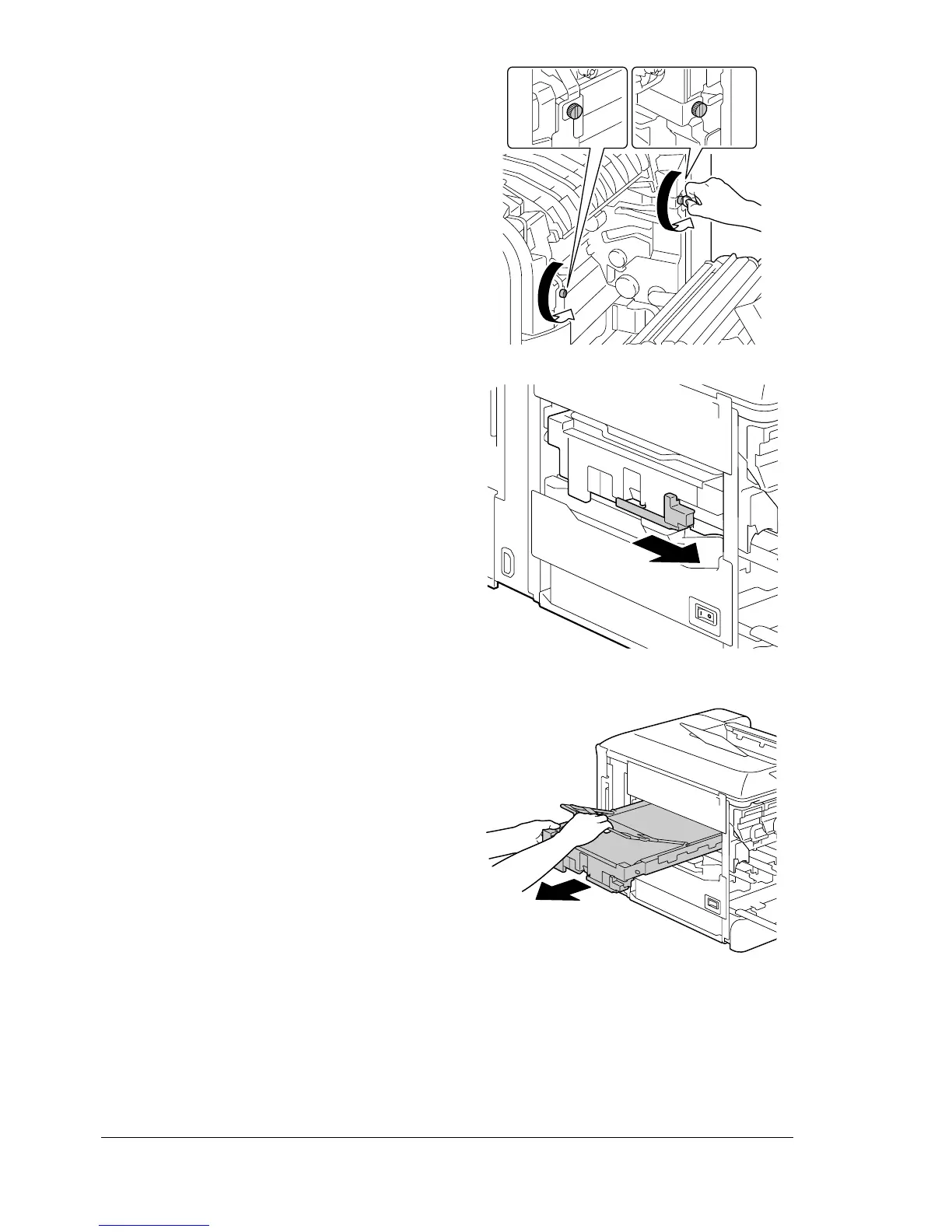

7 Use a coin to loosen the screws
securing the transfer belt unit.
8 On the left side, pull to the right
the blue shutter lever for the
transfer belt unit.
" Do not remove the blue
lever.
9 From the side where the left side
cover was removed, hold the
arm, and then carefully pull out
the transfer belt unit.
To Next Page
