Korg M1R User Manual

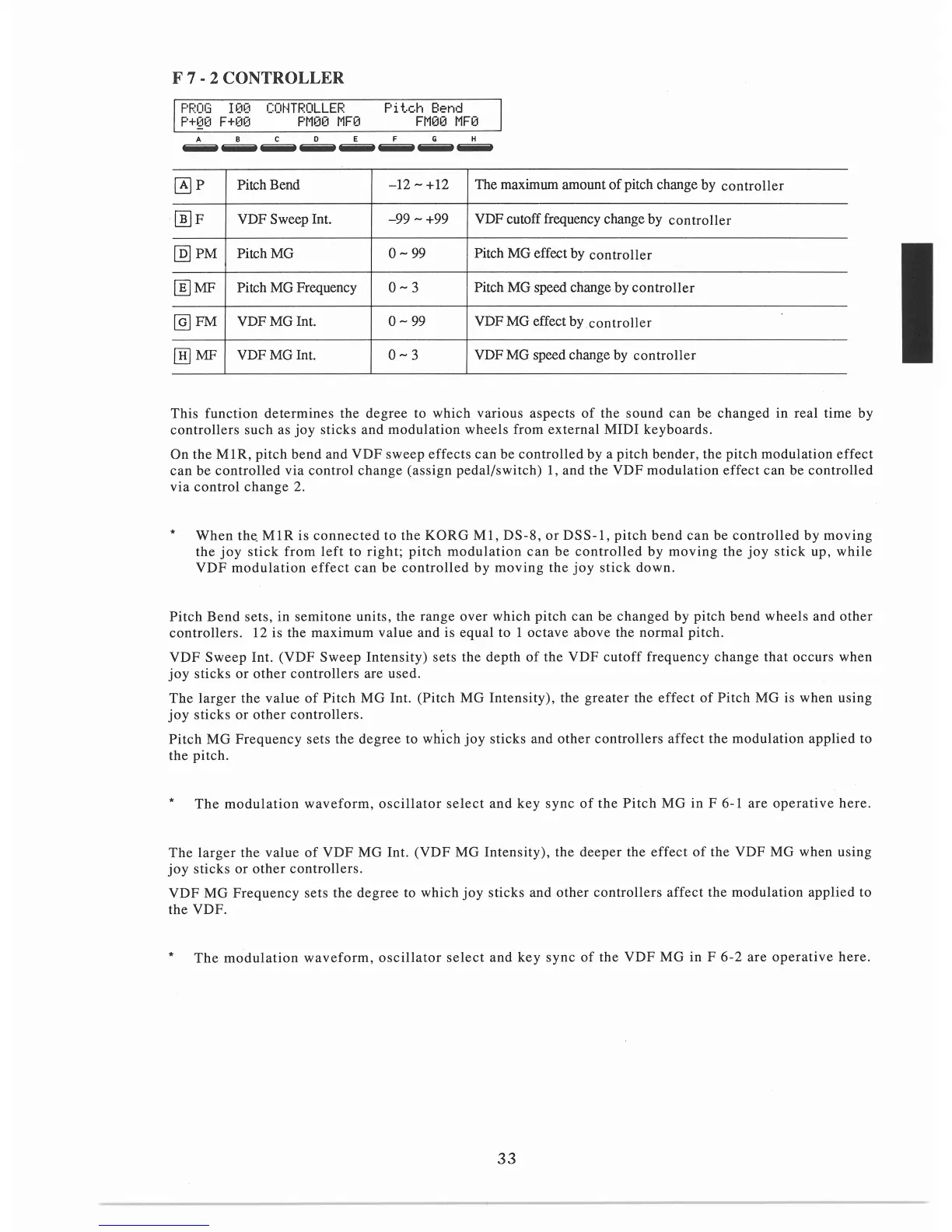

F 7 - 2 CONTROLLER
PROG 100 CONTROLLER
P+00 F+00 PM00 MF0
Pitch Bend
FM00 MF0
A B C D E F G H
tiiiiiiit tiiiiiiit tiiiiiiimit tiiiiiiimit tiiiiiiimit tiiiiiiimit tiiiiiiimit tiiiiiiimit
~p
Pitch Bend
-12 - +12
The maximum amount
of pitch change by controller
[fil F VDF Sweep Int.
-99 - +99
VDF cutoff frequency change by
controller
@]PM
Pitch MG o- 99
Pitch MG effect by
controller
(]]MF
Pitch MG Frequency 0-3
Pitch MG speed change by controller
@]FM
VDFMGint. 0- 99
VDF MG effect by controller
IBJ MF
VDFMG Int.
0-3
VDF MG speed change by controller
This function determines the degree to which various aspects of the sound can be changed in real time by
controllers such as joy sticks and modulation wheels from external MIDI keyboards.
On the MIR, pitch bend and VDF sweep effects can be controlled by a pitch bender, the pitch modulation effect
can be controlled via control change (assign pedal/switch) I, and the VDF modulation effect can be controlled
via control change 2.
*
When the_ MIR is connected to the KORG Ml, DS-8, or DSS-1, pitch bend can be controlled by moving
the joy stick from left to right; pitch modulation can be controlled by moving the joy stick up, while
VDF modulation effect can be controlled by moving the joy stick down.
Pitch Bend sets, in semitone units, the range over which pitch can be changed by pitch bend wheels and other
controllers. 12 is the maximum value and is equal to I octave above the normal pitch.
VDF Sweep Int. (VDF Sweep Intensity) sets the depth of the VDF cutoff frequency change that occurs when
joy sticks or other controllers are used.
The larger the value of Pitch MG Int. (Pitch MG Intensity), the greater the effect of Pitch MG is when using
joy sticks or other controllers.
Pitch MG Frequency sets the degree to wh
0
ich joy sticks and other controllers affect the modulation applied to
the pitch.
*
The modulation waveform, oscillator select and key sync of the Pitch MG in F 6-1 are operative here.
The larger the value of VDF MG Int. (VDF MG Intensity), the deeper the effect of the VDF MG when using
joy sticks or other controllers.
VDF MG Frequency sets the degree to which joy sticks and other controllers affect the modulation applied to
the VDF.
*
The modulation waveform, oscillator select and key sync of the VDF MG in F 6-2 are operative here.
33
