Creating songs (SEQUENCER mode)
72
SEQUENCER mode page structure
For details on how to access each mode and page, see “Basic
operations” on page 14.
You can sample from within SEQUENCER mode—
including resampling the Song itself. For more information,
see “Sampling in PROGRAM and COMBINATION modes”
on page 145.
You can also mix in live audio inputs, and process them
through effects. For more information, see “Using effects
with the audio inputs” on page 229.
Set Lists
Songs can also be selected in Set Lists, along with Programs
and Combinations. For more information, see “Set Lists” on
page 113.
Page Explanation
Mixer
• Song playback/recording
• Easy editing using the RT control knobs,
and Tone Adjust
• Edit mix parameters such as volume, pan,
Play/Mute, and Solo On/Off
•Set up ARP/DRUM
• Select programs for MIDI tracks
• Choose the recording mode
• Make settings for sampling, resampling,
and audio
EQ/X-Y/Controller
• EQ adjustments for each track
• Function assignments for the SW1 and
SW2 buttons and RT control knobs 1–6
• Vector Synthesis settings
Track Parameters
• Parameter settings for each track (MIDI
channel, OSC selection, pitch settings,
etc.)
MIDI Filter/Zone
• MIDI receive/transmit filter settings for
each track
• Keyboard zone and velocity zone settings
for each track
Track Edit • Track editing
Pattern/RPPR
• Pattern recording and editing
• RPPR settings
• Convert User patterns to User Drum Track
patterns
IFX
• Insert effect selection, settings, send level
to master effects, output routing
MFX/TFX
• Master effect and total effect selection
and settings
Page Explanation
AUDIO OUTPUT
L/MONO, R
AUDIO OUTPUT
INDIVIDUAL 1, 2, 3, 4
Insert Eect 1...12
Master Eect 1, 2
Total Eect 1, 2
X-Y Control
Arpeggiator
Drum Track/Step Seq
Audio Input
Sampling
Tone Adjust
Controllers
Master Track
Resampling (L/R 2ch Mix)
Tempo and time signature data
Song
Audio recording function

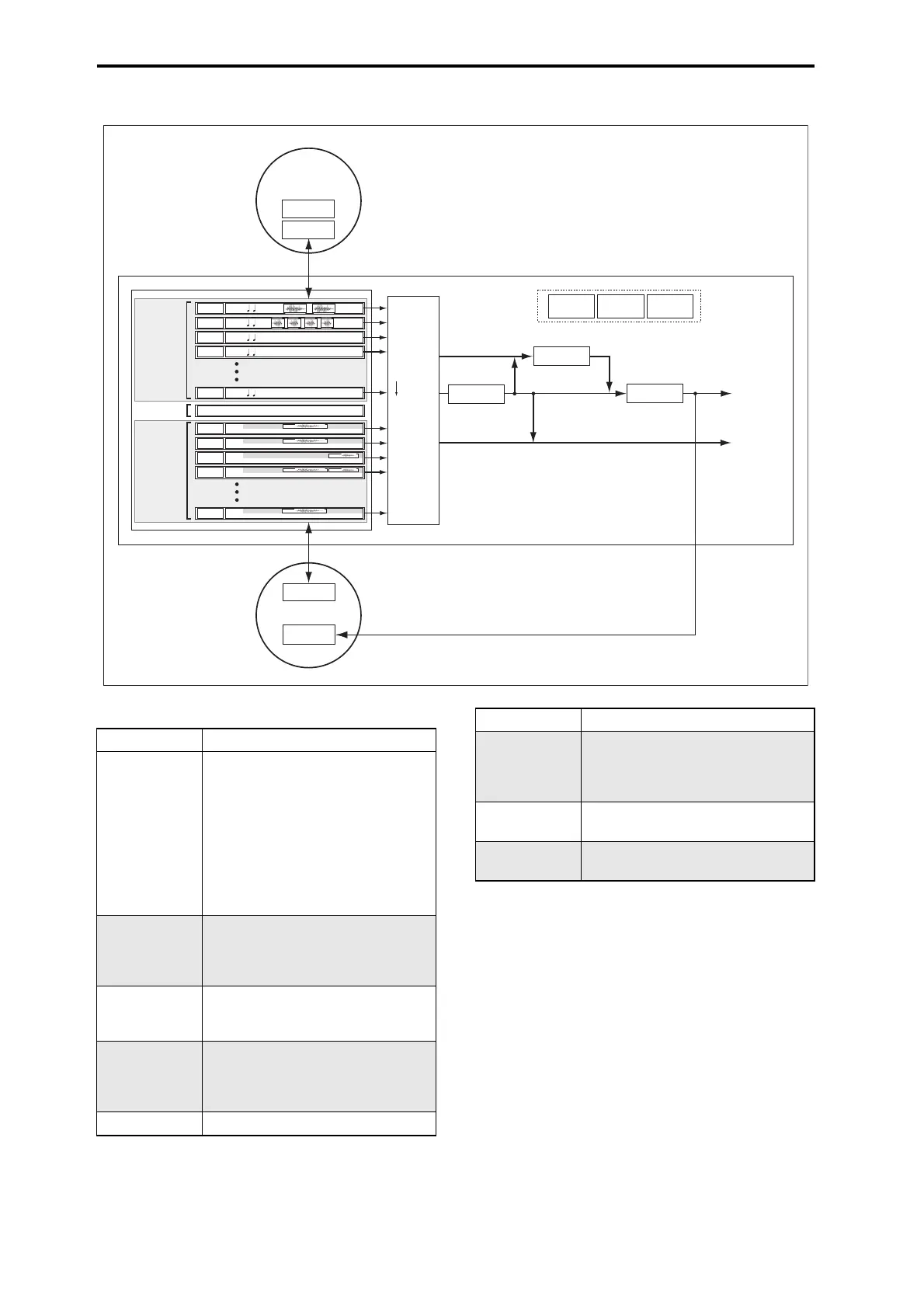

This is a conceptual diagram of SEQUENCER mode including the hard disk recording function.
(Routing)
MIDI Routing 1,2
Audio Routing 1,2
Track
Insert Eects
Master Eects
Individual Outputs
(FX Ctrl BUS)
(REC BUS)
Audio Track 01..16
Setting
parameters
Performance
data
Setting
parameters
Performance
data
Setting
parameters
Performance
data
Setting
parameters
Performance
data
Setting
parameters
Performance
data
Automation events
Automation events
Automation events
Automation events
Automation events
Audio events
Region
Audio events
Audio events
Audio events
Audio events
Region
Region
Region Region
Region
MIDI Track 01..16
Setting
parameters
Performance
data
Setting
parameters
Performance
data
Setting
parameters
Performance
data
Setting
parameters
Performance
data
Setting
parameters
Performance
data
Internal disk
Sampling memory
(RAM)
WAVE (Stereo)
WAVE (Mono)
Sample
Sample

Korg NAUTILUS Series Specifications

General

Sampling	Open Sampling System
MIDI	In, Out, Thru
Preset Combinations	384
Keyboard	61-key (NAUTILUS 61), 73-key (NAUTILUS 73), 88-key (NAUTILUS 88, RH3 weighted action)
Effects	12 Insert Effects; 2 Master Effects; 2 Total Effects
Sequencer	16-track MIDI Sequencer
Storage	Internal SSD (60 GB)
Audio Inputs	2 x 1/4"
Audio Outputs	Headphones
USB	Type A (host), Type B (device)
Weight	NAUTILUS 88: 23.1 kg
Display	8 inch TouchView™ GUI (800x600 pixels)
